MT3401E.doc rev.0 21/05/13 Pagina 79 di 86
Generic Event: select Generic Event to associate an output to the system events
mentioned here below.

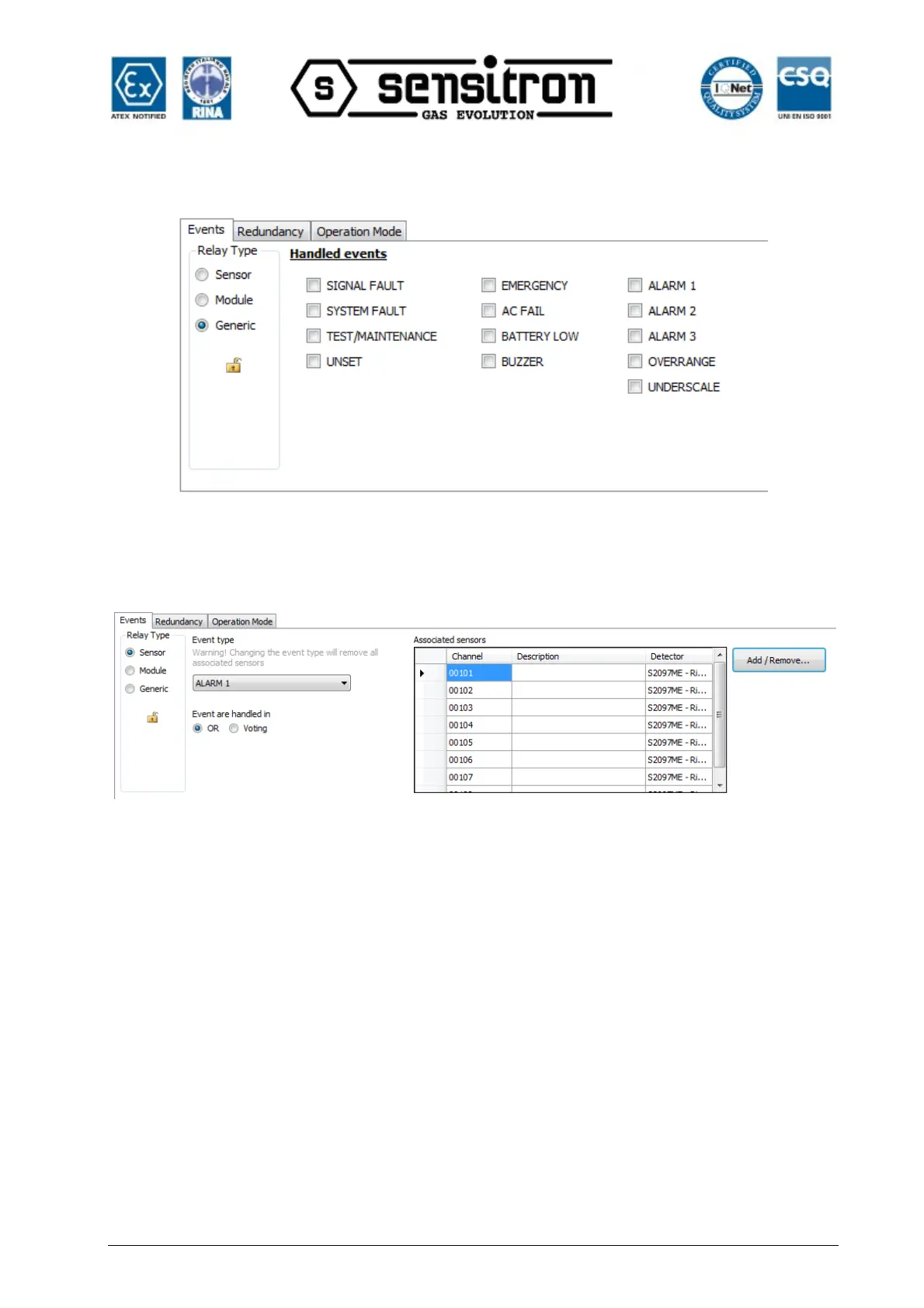

Fig. 4.5.6 h) System event output setting screen
OR and Voting functions
Fig. 4.5.6 i) OR and Voting functions
OR function
By selecting OR, a single event (between the events shown in the Associated Sensors
summarizing screen) is enough to activate the output.
