METIS M311 / M322 / H311 / H322 (17-pin)
Mechanical Installation
18

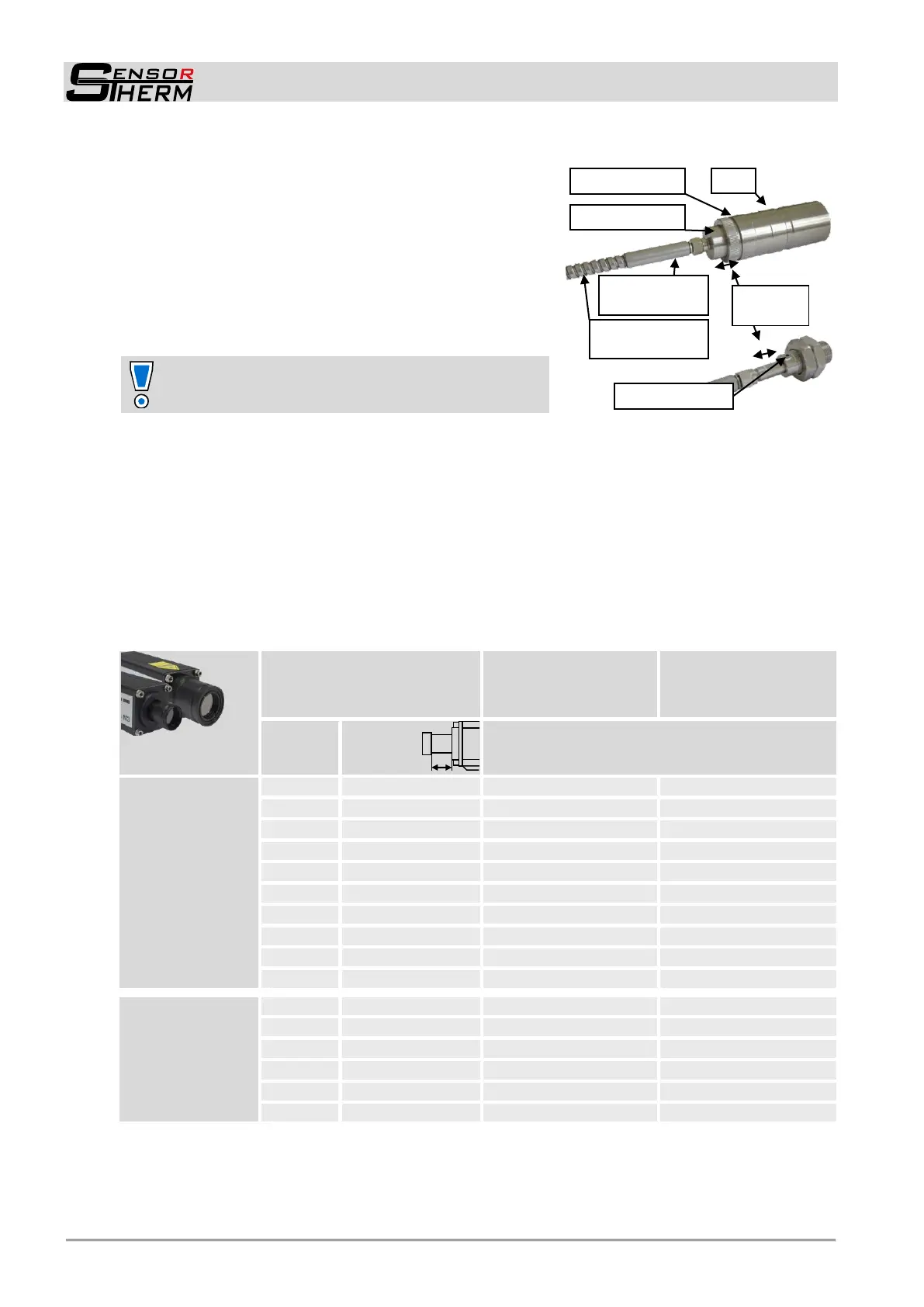

5.5.3 Manually Focusable Fiber Optic Lenses
Optics OL25: Just slightly open the lens locking ring for re-
leasing and locking the optics, as rear optics part rotates with
opening of the locking ring.
Optics OL12: Optics lock screw (allen screw) for releasing
and locking the optics.
Pull the rear optics part out of the tube to focus according to
the required measuring distance (laser beam is focused and
has the smallest diameter).
NOTE: Never pull on the flexible part of the light
guide to focus!
5.6 Spot Size Tables
The following tables show the optical data of the different device types. The values in the tables are ex-
emplary, intermediate measurement distances must be determined by interpolation. If the measuring
distance (= focused distance) differs from the adjusted or specified, a measurement is also possible, but
the spot size changes (usually it is larger, see 5.6.3 Calculation of the spot size diameter outside the
focused distance). Measuring distances at manually focused optics are specified from lens front, at
motorized optics from the protection window.
5.6.1 Manually Adjusted or Motorized Focus Optics
Optics
Model
Temperature ranges [°C]
M322: 300-1000°C
H311: FSC <1500°C
H322: FSC <1200°C
M311/ M322: all
other temp. ranges
H311: FSC 1500°C
H322: FSC 1200°C
Meas.
distance
a [mm]
Optics
pull-out
S [mm]
Spot size diameter M [mm]
M311 / H311:
OQ11-A1
M322 / H322:
OQ22-A2
340
26
1.4
0.8
400
20.7
1.8
1.3
500
15.5
2.7
1.5
600
11.7
3.2
1.8
800
7.7
4.1
2.3
1000
5.5
5.6
2.8
1500
2.7
7.7
4.6
2000
1.3
10
5.8
2500
0.5
12.7
7.3
3000
0
14
7.8
M311: OQ11-F1
M322: OQ22-F2
1000
7.5
5.6
2.8
2000
3.3
10
5.8
3000
1.9
14
7.8
4000
1.2
19
11
5000
0.8
24
14
10000
0
51
29
Aperture diameter D: Full scale temperature value 1400 °C: 14-16 mm
Full scale temperature value > 1400 °C: 7-8 mm
(D is dependent on the optics pull-out: optics pulled out: higher value, optics inserted: smaller value)
FSC = Full scale temperature
Lens locking ring
Rear optics part
Optics lock screw
Resistant part of
the optical fiber
Focus
adjustment
Tube
Flexible part of the
optical fiber
