SensorTherm METIS M322 User Manual

METIS M311 / M322 / H311 / H322 (17-pin)
SensorTools Software
32

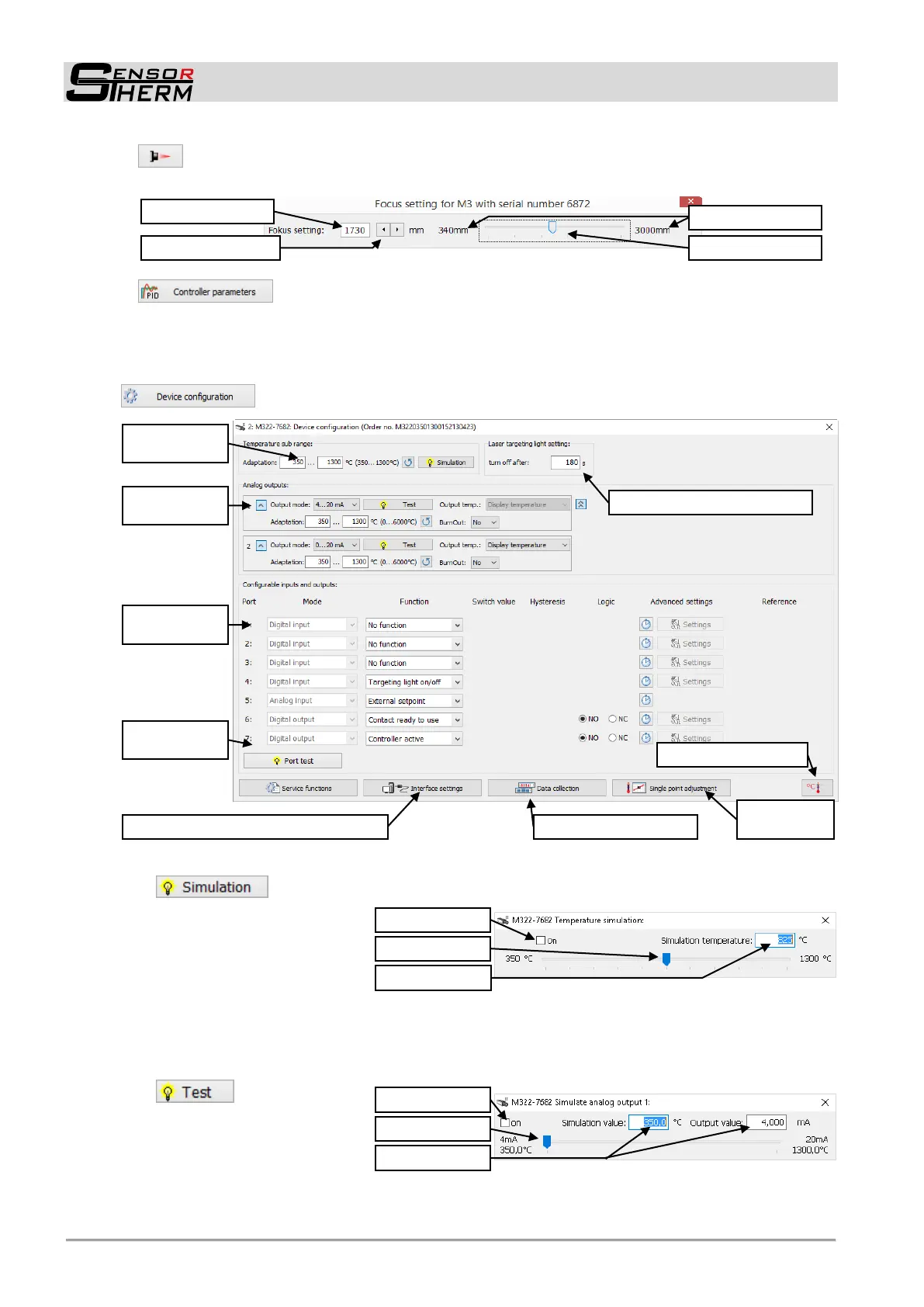

 Motor focus settings (pyrometers with motorized focus optics only):
For adjusting the measured distance to the measuring object.
 PID controller (see 7.2.4 PID controller equipment)
Opens a window with the controller settings.
7.2.3 Device Settings and Configuration
Here basic device settings are made.
 Temperature sub range (also see 6.8): Input of a temperature sub range.
- : To test the functionality of the outputs:
By moving the slider or by
entering a value, the outputs
are set accordingly.
The output is only activated
when the hook "on" is set.
 Laser targeting light settings (only devices with laser targeting light): Time until a laser targeting
light switches off automatically.
 2 Analog outputs are available:
- 0–20 mA or 4–20 mA sets the output current according to the requirements.
- : To test the func-
tionality of each analog out-
put:
By moving the slider or by
entering a value the corre-
sponding current is set to the output. The output is only activated when the hook "on" is set.
Configure digital
inputs / outputs
Configure analog
outputs
Baud rate, device address, interface delay
Configure temp.
sub range
Device data
import / export
Buffer mode configuration
Single-point
adjustment
Temperature unit °C/°F
Switch-off time laser targeting light
Input via keyboard
Available range
Click in steps of 1 cm
Slide with mouse
Slider
Activate output
Simulation value
Slider
Simulation value
Activate output
