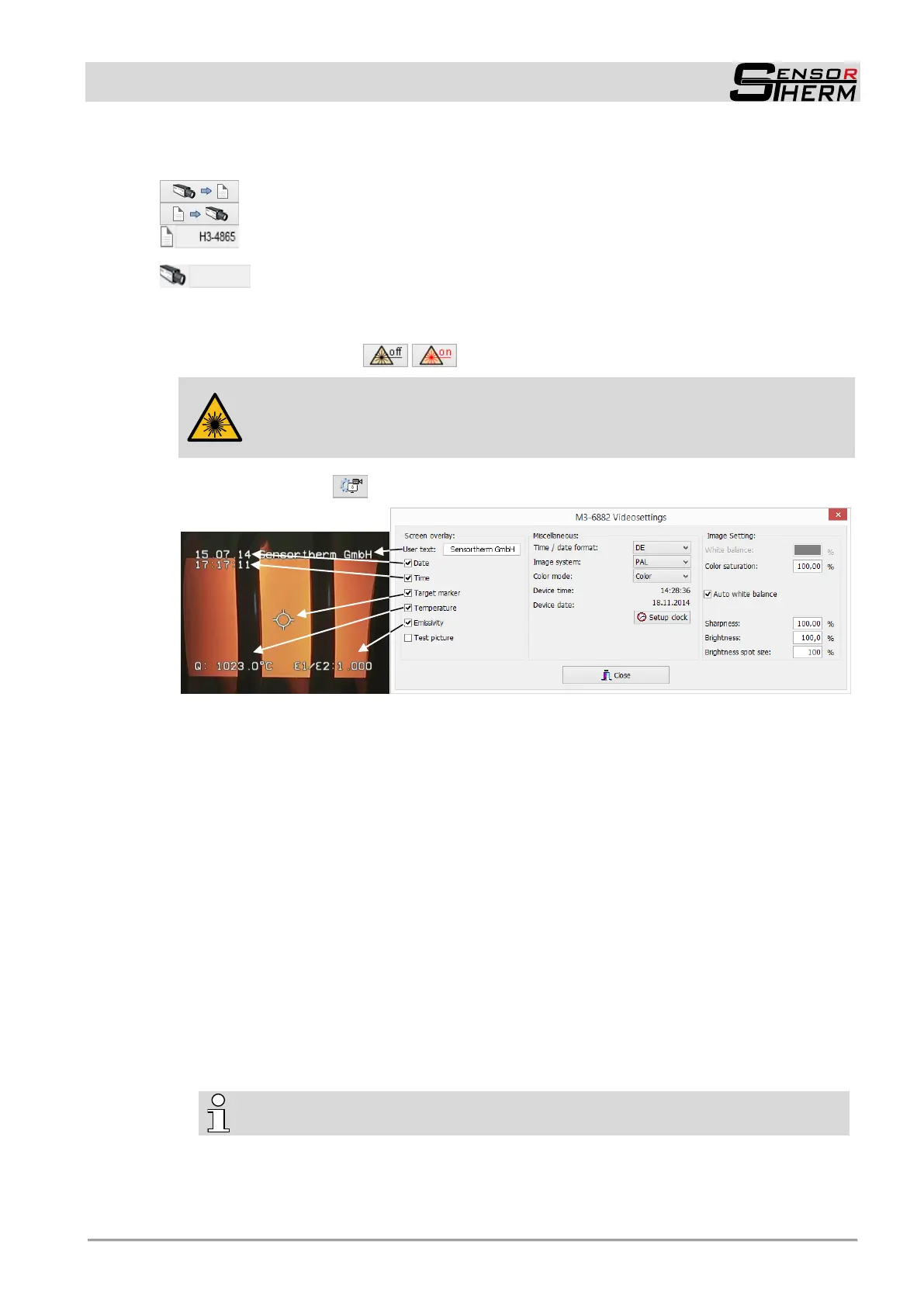

METIS M311 / M322 / H311 / H322 (17-pin)
SensorTools Software
31
Parameter quick save (ShortSettings): Allows quick storage and retrieval of the set measurement
parameters (PID parameters included).
: Saves the current measurement parameters as *.ShortSetting file on the computer.
: Loads a *.ShortSetting file from your computer into the pyrometer.
A measurement parameters file currently loaded is displayed in the status bar with a file
icon and the name of the file.
A subsequent change of measured parameter is indicated by a pyrometer icon which
shows that the parameters are read from the pyrometer.
Laser targeting light on / off or camera settings: depending on the sighting:
- with laser targeting light (
): switching on and off.
CAUTION, Laser Radiation, Laser Class 2!
Never look into the direct or reflected laser beam.
Do not point the laser to anyone.
If laser radiation hits the eye, the eye should be averted immediately.
- with camera module ( ): configure monitor settings:
- Screen Overlay: select the desired overlays
- User text: A text with max. 16 characters can be displayed on top right.
- Emissivity: shows depending on the measuring mode the emissivity or the emissivity slope.
- Test picture: Shows a test image instead of the camera picture.
- Miscellaneous
- Date / time format: US (American time format): month, day, year
DE (German time format): day, month, year
- Image system: PAL (720 x 576 Pixel) / NTSC (720 x 480 Pixel)
- Color mode: Color or black and white.
- Device time / device date: Time and date by the pyrometer.
- Setup clock: Transfers the PC time to the device clock of the pyrometer.
- Image settings
- White balance (active only when auto white balance off): Input 0 to 100% of the window ar-
ea, calculated centrally on the monitor center.
- Color saturation: Sets the quality of the color effect
- Auto white balance: Executes the white balance automatically. Possibly with disabled func-
tion the result is better because the function reacts slowly to changes in color.
- Sharpness: Input 0 to 100%, with values below 100%, the image is soften.
- Brightness: For manual brightness adjustment.
- Brightness spot size: window size that should be used for the automatic brightness adjust-
ment. Enter 5 to 100% of the window area, calculated centrally on the monitor center.
INFO: To prevent image over-modulation, the measured object should be in the mid-
dle (in the target mark) and the brightness spot size as large as the measuring object.
TV picture
