METIS M311 / M322 / H311 / H322 (17-pin)
Overview
7
3 Overview
3.1 Intended Use
The here described 2-color pyrometers Metis M3 and H3 are devices for non-contact temperature
measurement. With its short-wave spectral range they are suitable for measurements on metals, ceram-
ics, graphite etc. with temperature ranges depending on the model execution between 300 and 3300°C
(M3) or 350 and 3300°C (H3). The M3 models have a response time of < 1 ms. The H3 models are
high-speed instruments with a response time of < 80 µm.
3.2 Scope of Delivery
Pyrometer, software SensorTools, works certificate, user manual
(connection cables are not included in scope of delivery and have to be ordered separately).

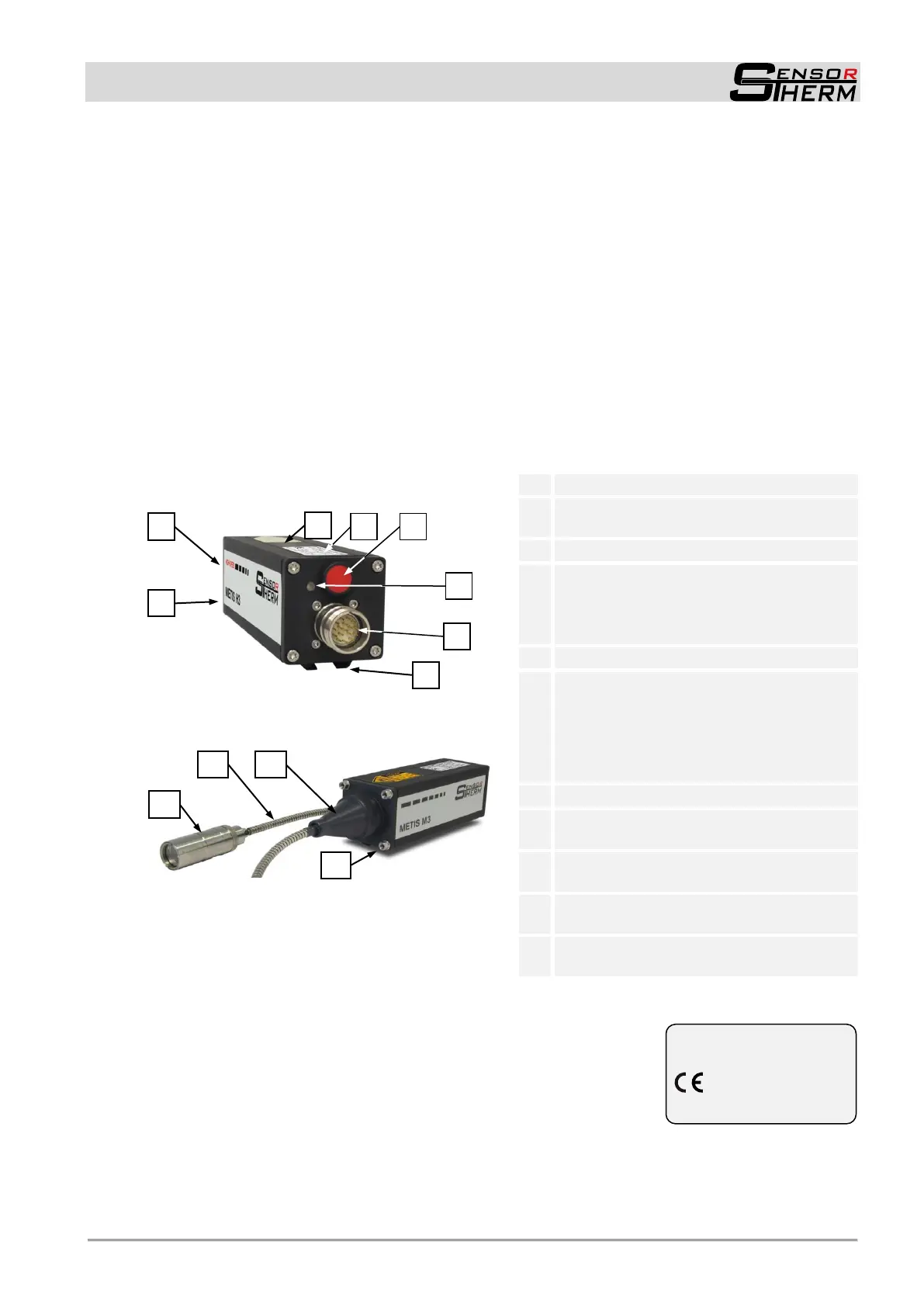

3.3 Model Designs
Laser warning label
(only devices with laser targeting light)
Device identification label
Depending on sighting:
- Eyepiece (models with view finder)
- Laser targeting light push button
- Connector for TV signal
LED to indicate operating status
Connectors for power supply, 2 linear
analog current outputs for manipulated
variable and actual value, 4 digital inputs,
2 digital outputs, 1 analog input, PID con-
troller, a serial interface (M3: RS232 /
RS485 switchable; H3: RS485)
Mounting thread (M5) for front mounting
the pyrometer or accessory
Fiber optics with adjustable focus dis-
tance
Optical fiber for transporting the heat
radiation to the pyrometer
Tube to protect the optical fiber connec-
tion
3.4 Identification Label
The identification label on top of the device shows information to:
manufacturer, reference number, temperature range, serial number, serial
interface output (=digital output), analog output, power supply, country of
manufacture and CE sign.
Differences in models with fiber optics:
M3
11 06001300058130423-A
Temp. Range: 750 - 2500 °C
1382 - 4532 °F
Serial #: 1234
Digital Output: RS 485
Analog Output: 2x 0/4 - 20mA
Made in Germany Power: 18 - 30V DC
