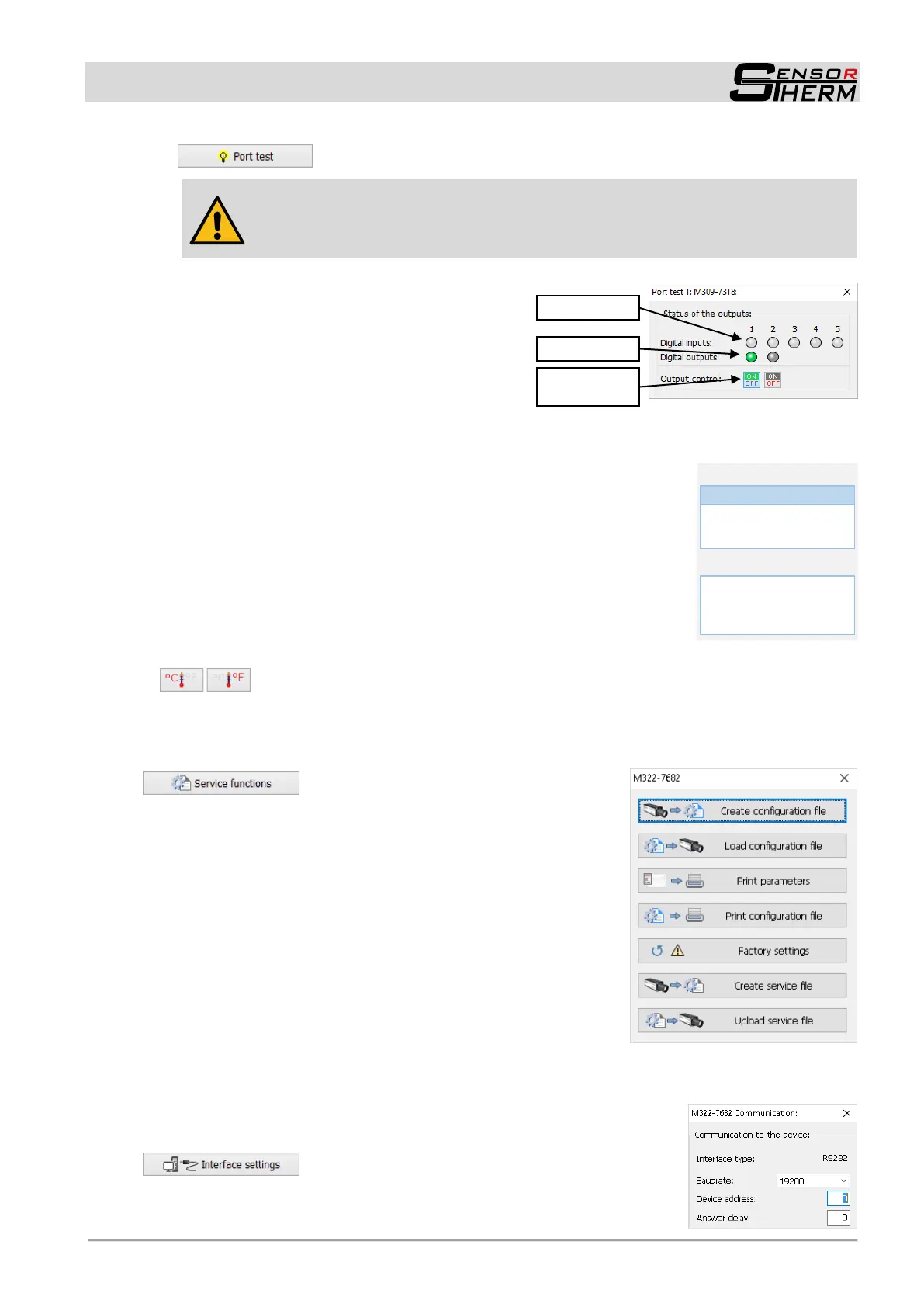

METIS M311 / M322 / H311 / H322 (17-pin)
SensorTools Software
35
-
Here inputs and outputs can be checked for errors.
CAUTION when using the Test function with connected systems!
Using the test function will activate the selected outputs.
All connected systems will start working.
Always pay attention to the security instructions of these systems!
Click on an output check box to activate the cor-
responding output (only possible for selected dig-
ital outputs). A green LED symbol signalizes the
activation.
Digital inputs are marked with a green LED sym-
bol if connected and active.
The analog input 5 indicates an active LED when
exceeding a voltage of 5 V.
Note: The activation of the outputs also activates the LEDs in the control window.
- Analog input mode: an external voltage (see under 4.1.3 Analog in-
put) enables
- To set external the emissivity slope ε2/ε1 or the emissivity ε of each
channel
- Reference: Here you select whether the emissivity ratio or the
emissivity has to be set externally.
- External setpoint setting (at the PID controller)
- External measuring distance adjustment (only M3 devices with mo-
torized focus)
Temperature unit:
The temperature can be displayed and entered in °C or °F. Changing the mode will not
change the entered values, no conversion will be done.
7.2.3.2 Service functions
To back up, for printing or restore device pa-
rameters or create service files for remote diagnosis of problems.
Create configuration file: A configuration file includes all device
settings made by user. This can be used e.g. to setup a new py-
rometer with the same values and settings or to save the current
status in case of a device replacement.
Load configuration file: load a previously saved configuration
data in the pyrometer.
Print parameters: Prints the parameters of the currently connect-
ed device.
Print configuration file: Prints a saved file.
Factory settings: Resets the device to its factory defaults.
Create service file: A service file includes all device data and all
software settings made by user. Creating such a file can be useful
if a problem can’t be solved and help from our service could be
useful.
Upload service file: Transmitting a (possibly modified) file to the device it was created from.
7.2.3.3 Interface
For setting the baud rate (see 6.12), device address
(6.14) or interface delay (= answer delay, see 6.15).
Output check
Input check
Click to activate
output
No function
v
Function
ε2/ε1 or Emissivity ε
External setpoint
Measuring distance
Reference
ε2/ε1 (emissivity slope)
ε of channel 1
ε of channel 2
ε of measured temperature
