Sentex Infinity - Infinity DI Surface Mount System Dimensions

Page 12 of 19 Doc 6001564 Rev B

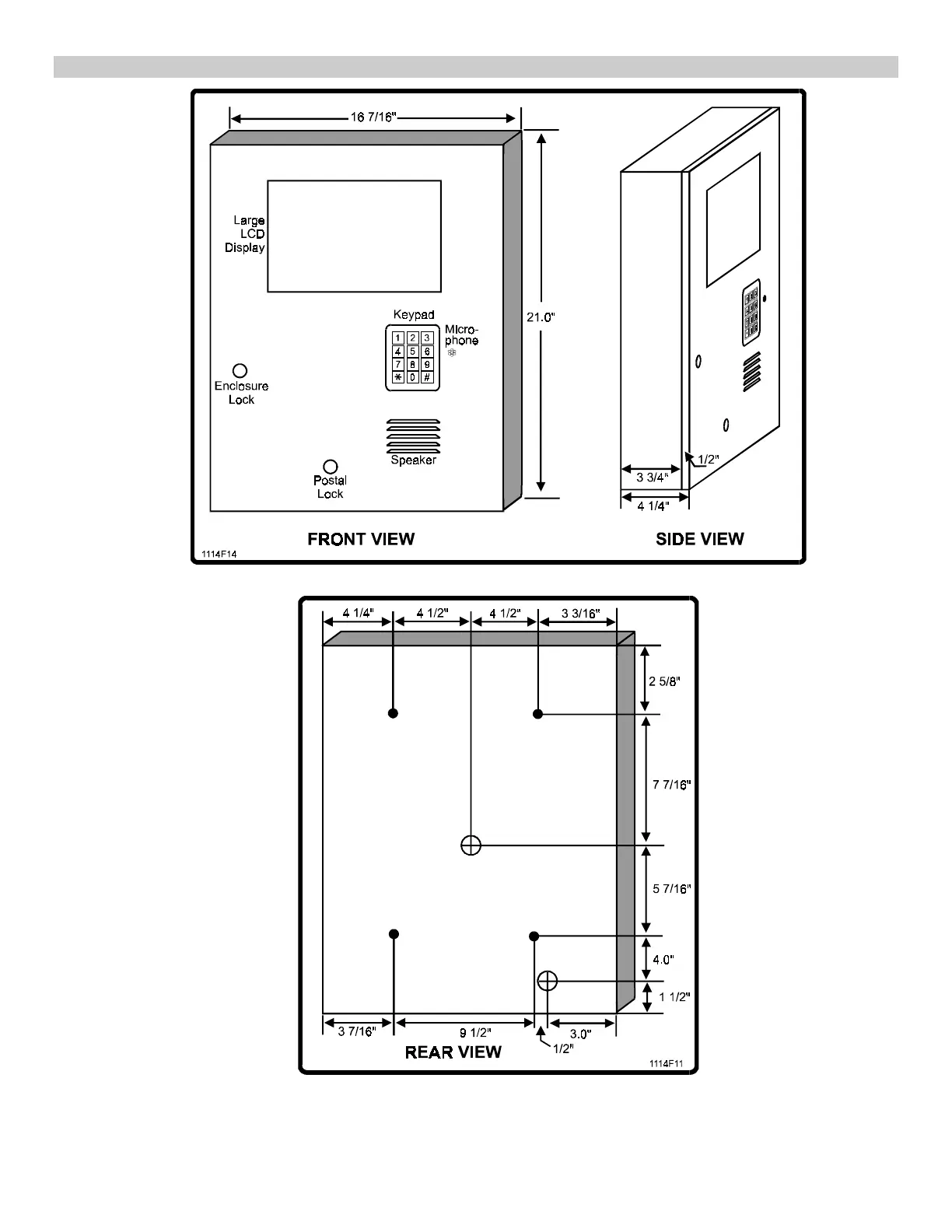

G. INFINITY “DI” SURFACE MOUNT SYSTEM
This line drawing is intended for dimensional reference purposes only and is not intended to be an actual
drawing of the Infinity “DI” system itself.
