Sentex Infinity - Infinity L Flush Mount System Dimensions

Rev B Doc 6001564 Page 7 of 19
B. INFINITY “L” FLUSH MOUNT SYSTEM
FLUSH MOUNT BOX

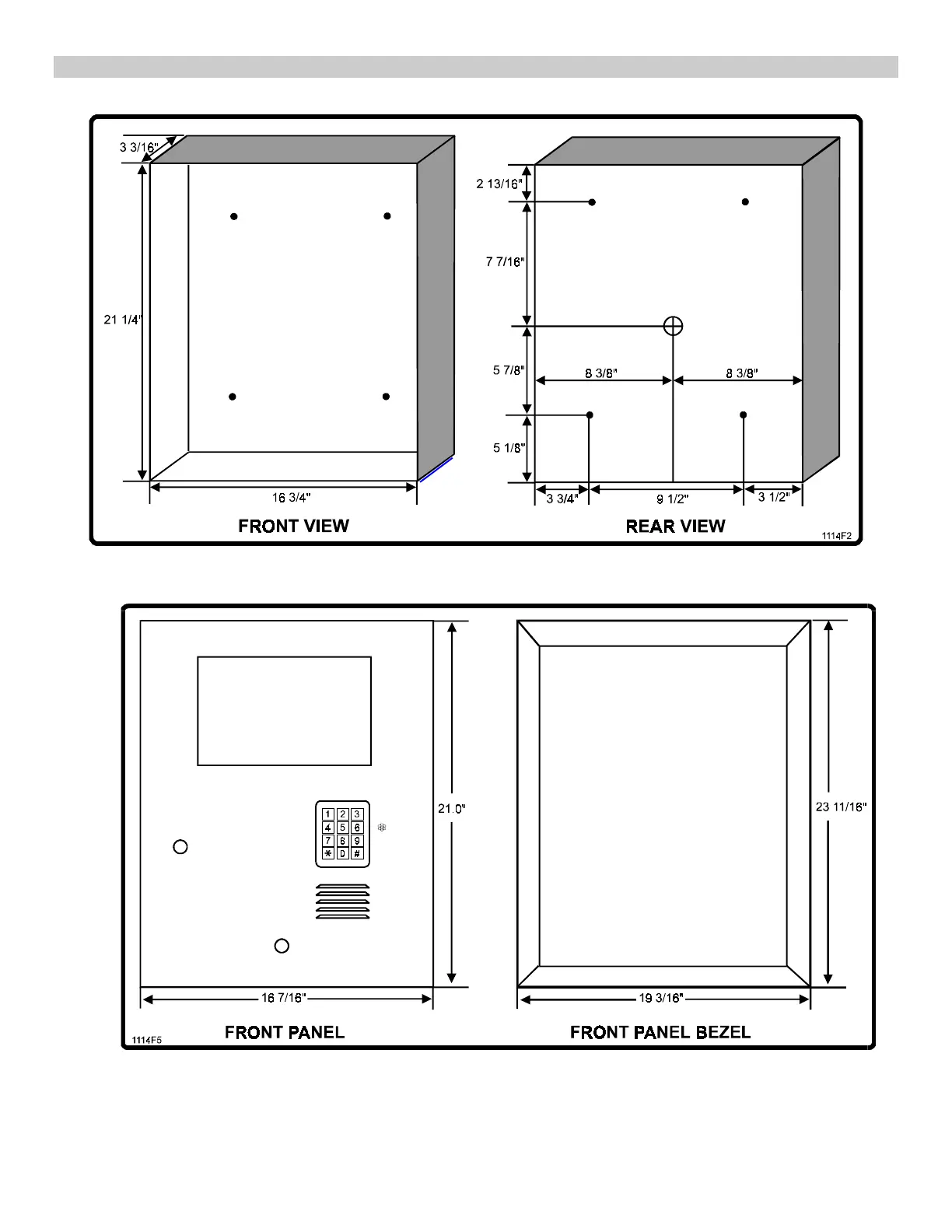

This line drawing is intended for dimensional reference purposes only and is not intended to be an actual
drawing of the Infinity “L” Flush Mount system itself.
