3. DIMENSIONAL DRAWINGS OF INFINITY

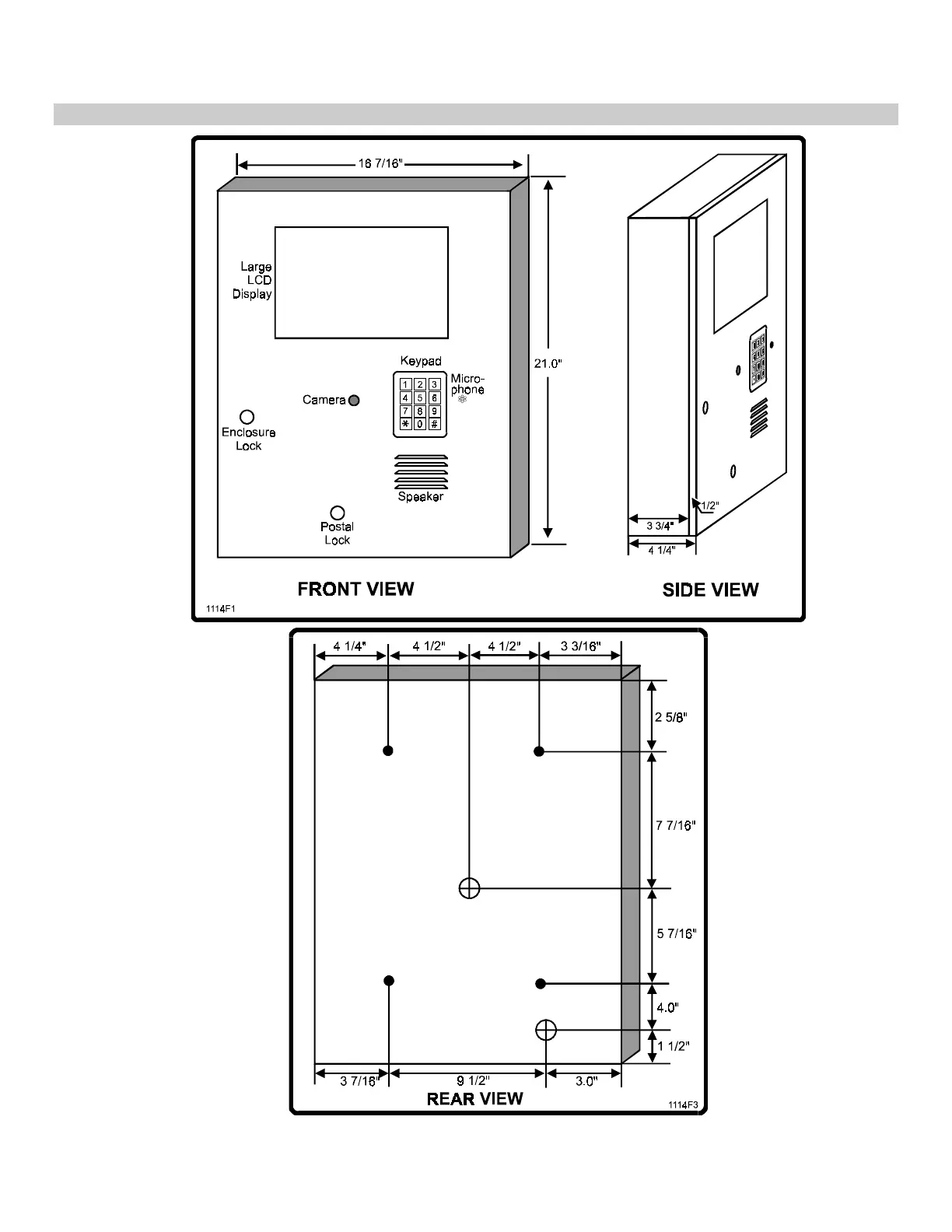

A. INFINITY “ L” SURFACE MOUNT SYSTEM (SHOWN WITH OPTIONAL CCTV)
This line drawing is intended for dimensional reference purposes only and is not intended to be an actual
drawing of the Infinity “L” system itself. NOTE: Camera is optional.
