Serpent F110 SF4 - Page 15

15
M3x3
1
2
3
4
bag 5

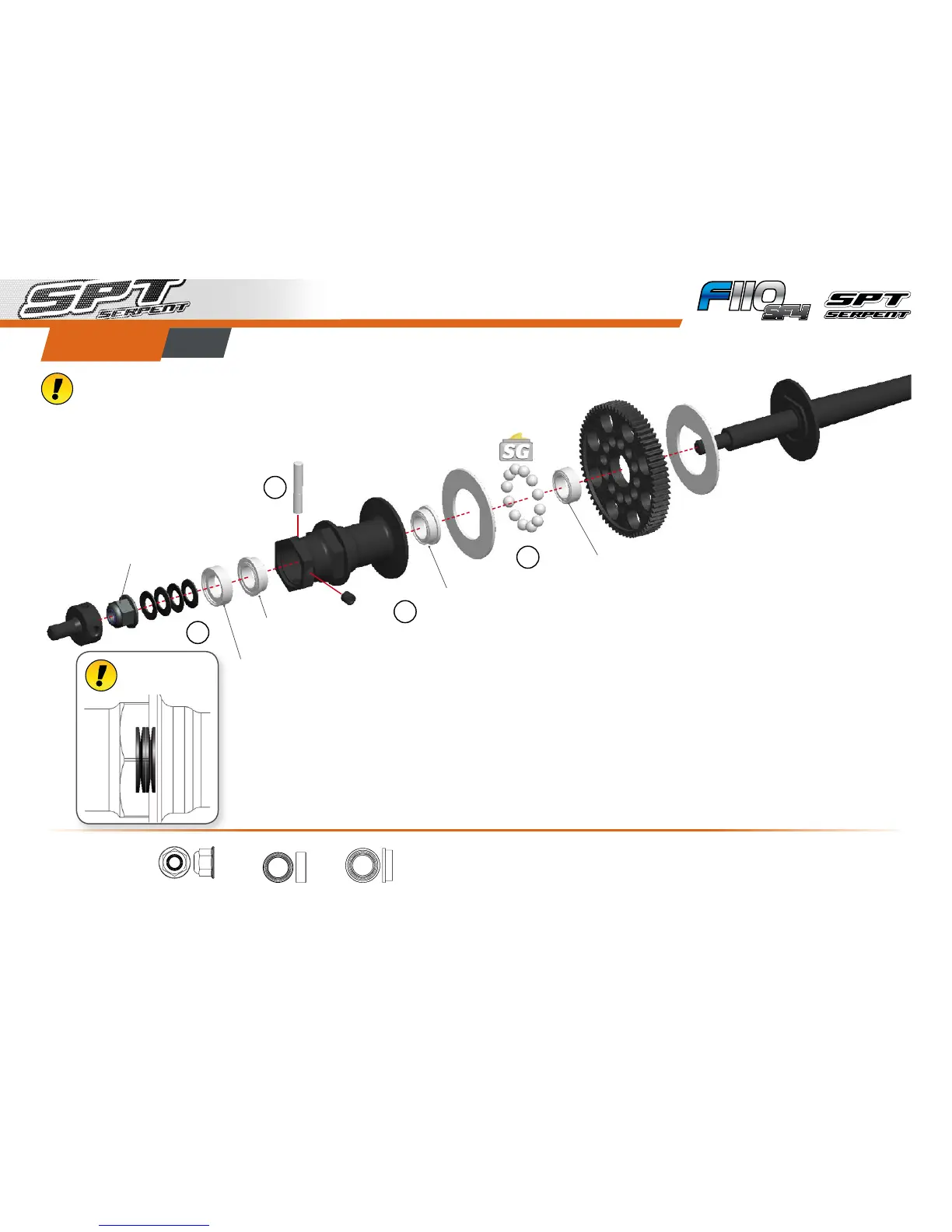

STEp 20
1/4x3/8
Flanged
1/4x3/8
1/4x3/8
Flanged
Trustbearing
1/4x3/8x1/8
Nylock
Nut M4
Flanged
Note correct shims
orientation.
The Serpent diff washers are polished to be used without further sanding or polishing.
Tighten the M4 nut carefully, while always checking the diff action. Don’t overtighten.
Check after assembly. As basic setup, It should just be possible to slip the spur gear
through by hand, once the wheels are attached.
Nylock Nut
M4 Flanged
1/4x3/8
1/4x3/8 Flanged
