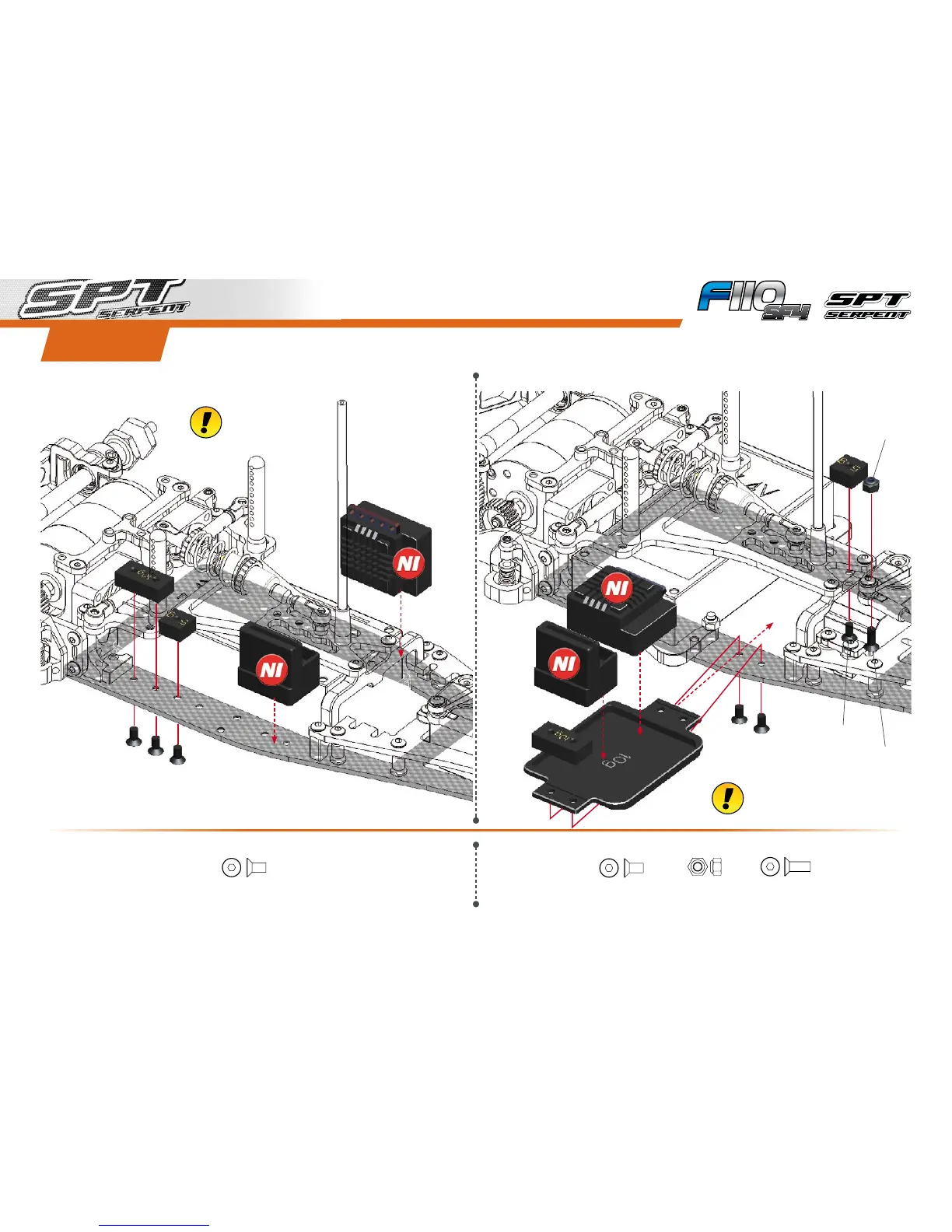

STEp 38
hIgh TRaCTION CONfIgURaTION lOW TRaCTION CONfIgURaTION
OpTIONal
DEfaUlT
Use double sided tape
to mount the ESC and
RX to the chassis.
Use double sided tape
to mount the ESC and
RX to the chassis.
M3x6
M3x6
M3x6
M3x8
Nylock Nut
M3
M3x6
M3x6
Nylock Nut M3
M3x8
