Serpent VIPER 990 - Page 27

27
STEp 34
STEp 35
M3x10
M3x10
M2.2x6

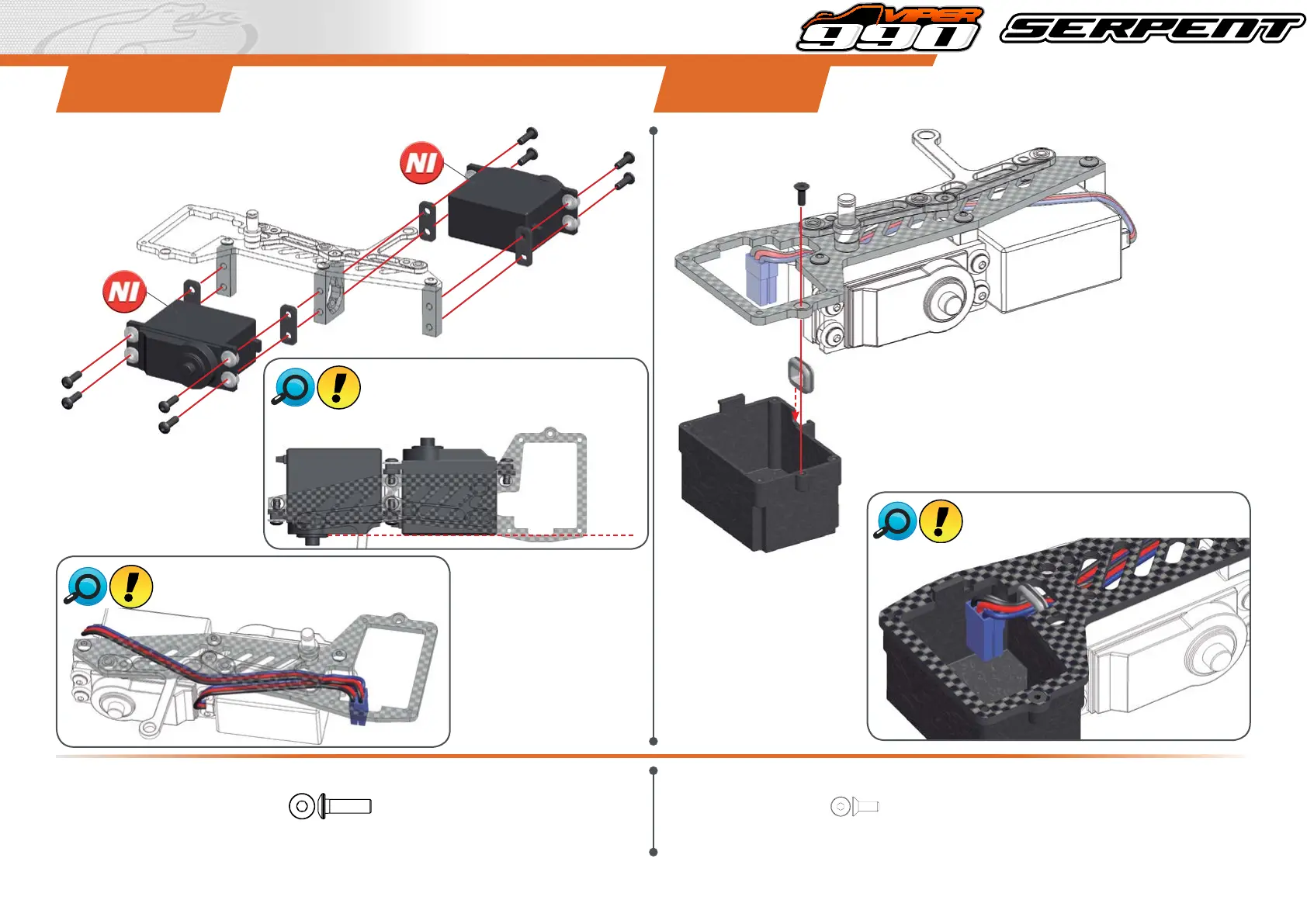

Note the o-ring position
Note the servo’s wire diagram
M2.2x6
M3x10
Use the 1mm and 2mm spacers to ensure
both servos are at the right of the reference
line which starts on the carbon plate.
Reference line
