16

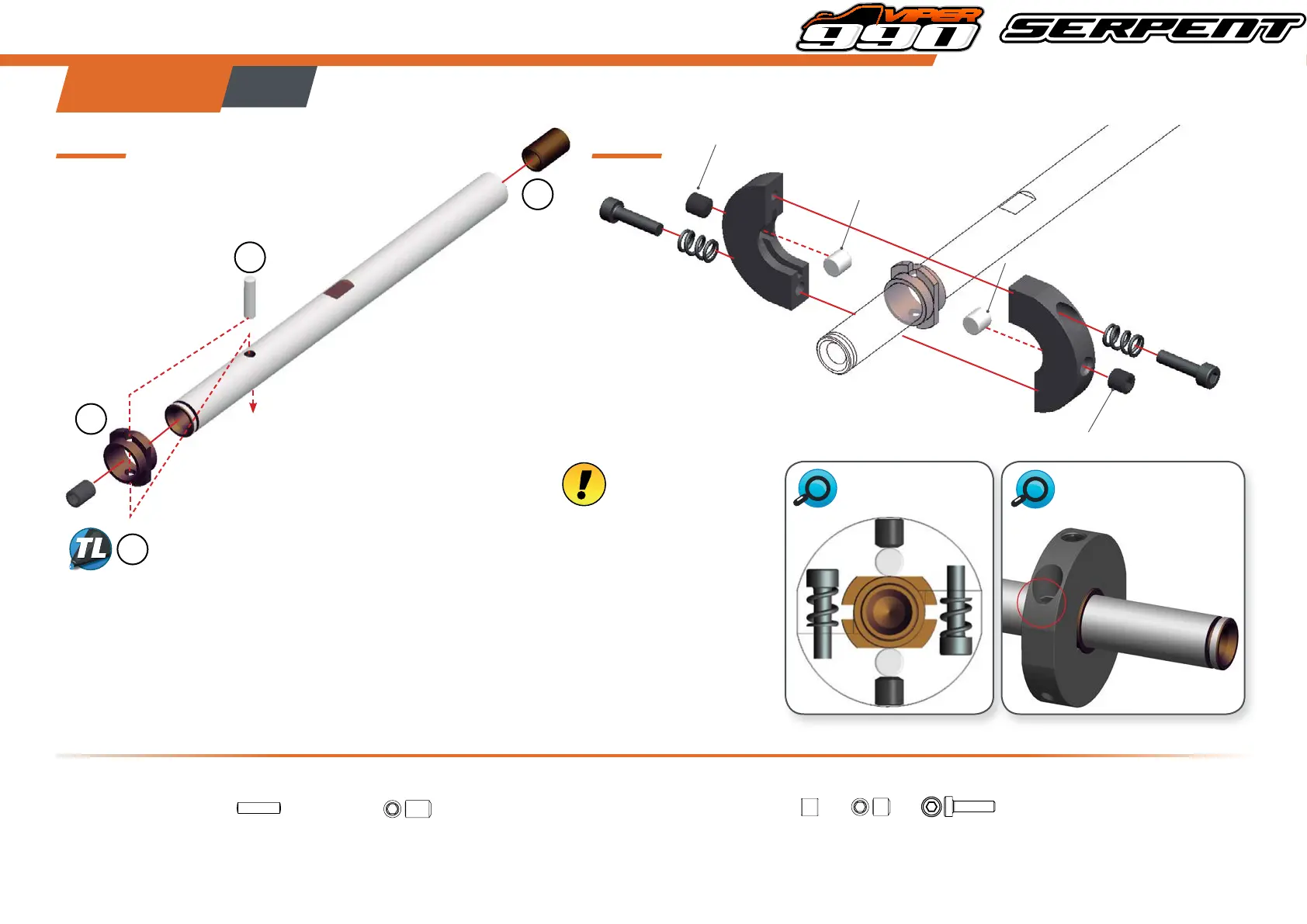

gEaRbOX aSSEmbly
bag 6
STEp 19
Note the correct gearbox
assembly
1- The M2.5x10 screws
adjust the SHIFT POINT. As
default adjustment screw
them untill the screws will be be
leveled with the hole as in the right
pictures.
2- Adjust the M4x4 screw to minimise
the gap between the shoes and the
bell, but still spinning free without
touching. Check after each run.
19.1 19.2
1
2
3
4
2.5x10
M4x4
M4x4
4x4
4x4
M4x4
M2.5x10
M2.5x10
2.5x10
M4x6
M4x6
4x4
M2.5x10
Note the correct default
M2.5x10 screws adjusting
point.
