Serpent VIPER 990 - Front Assembly II

33
fRONT aSEmbly II
STEp 46
FRONTSUSPENSIONINSERTSCHART
INSIDE
OUTSIDE
RIGHTRIGHT
RIGHT
LEFT
LEFT
LEFT
MID
4x6x1
4x6x0.5
M3x10
M3x12
M4x4
2
2
1
FRONTCASTER
DEFAULTSPACERS
1mm 2mm2mm 1mm
M4x4
M3x10
bag 12
1
STEp 47

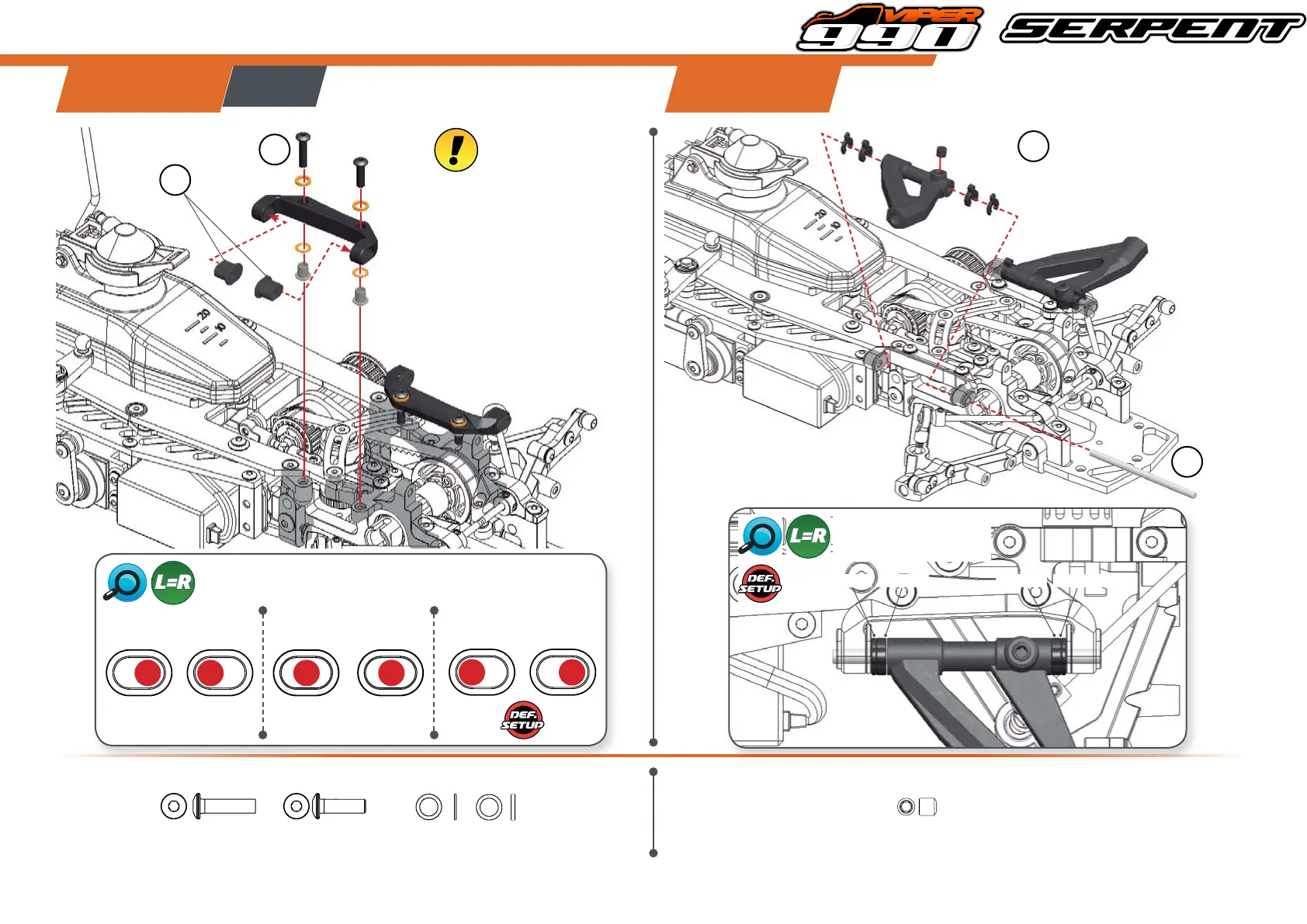

Note that the 4x6x1 and
4x6x0.5 shims must be used
always. In order to rise or
lower the front suspension
bracket it is needed to play
with the position of the shims
but never remove them. Is it
possible to go from “0” with
no shims under the bracket
to 1.5mm with both shims
under the braket.
M3x12
4x6x0.5
4x6x1
