Serpent VIPER 990 - Shocks Assembly

37

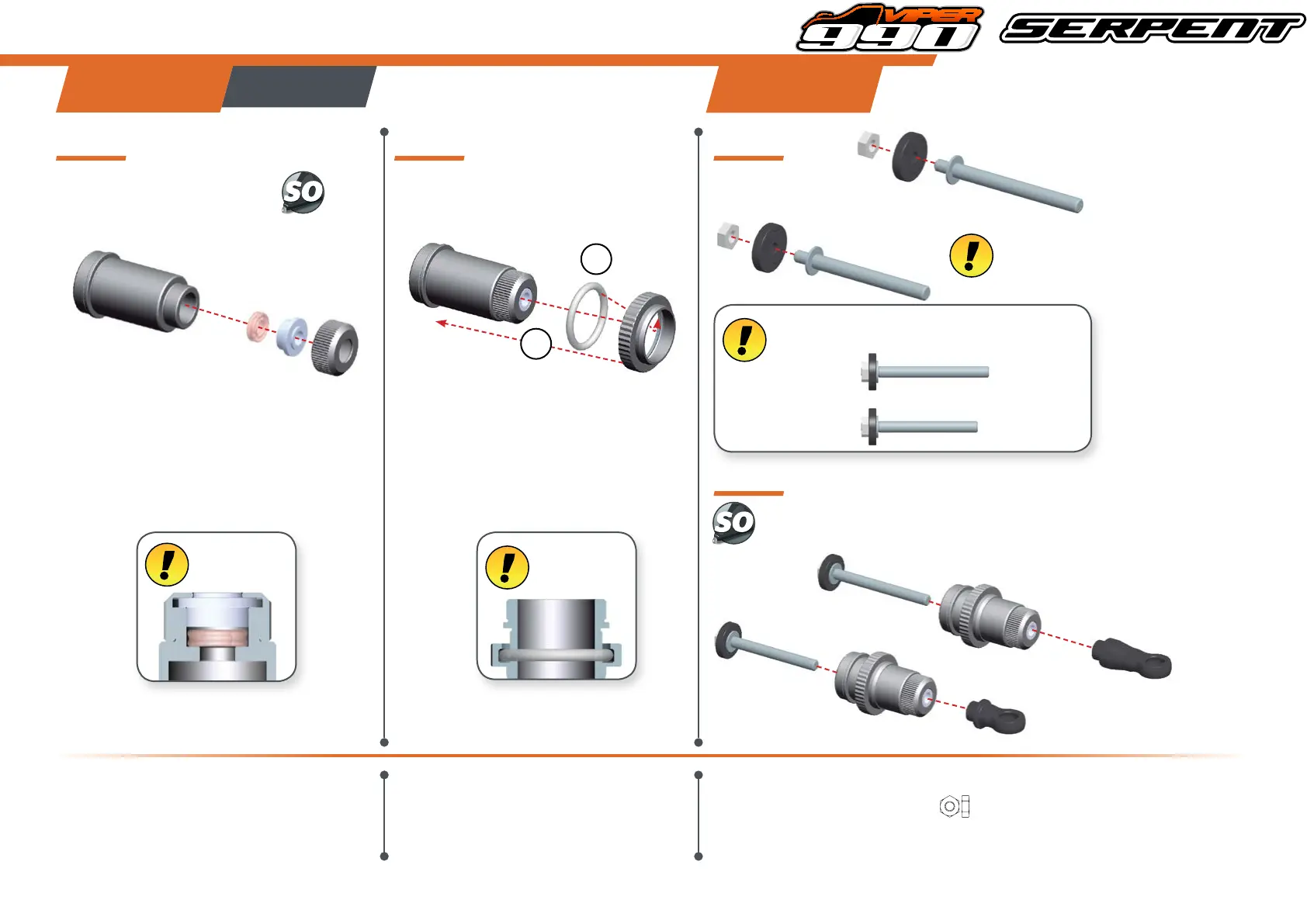

ShOCKS aSSEmbly
ShOCKS bag
STEp 52
52.1
53.1
53.2
52.2
Use some silicone oil
during the assembly.
Use some silicone oil
during the assembly.
For the correct piston
holes please check the
default setupsheet.
Insert the o-ring
inside the spring
collar.
Note the correct
orientation of the
shock spacers .
Note the correct
position of the
o-ring .
Use the shorter shock shaft in the front and the longer
one in the rear shock absorber.
1
2
STEp 53
FRONT
FRONT
FRONT
REAR
REAR
REAR
Nut M2.5
Nut M2.5
