Serpent VIPER 990 - Page 43

43

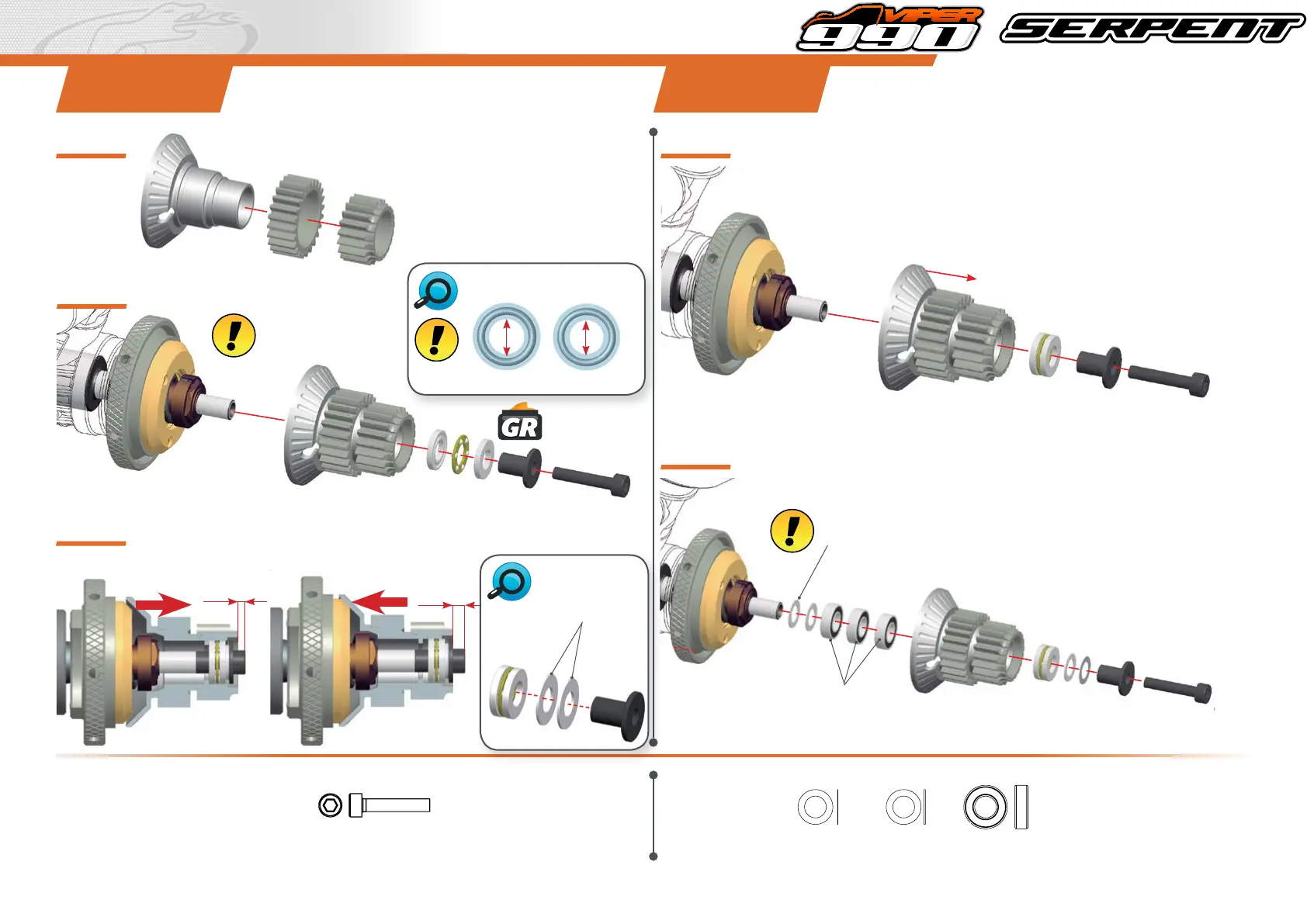

STEp 63 STEp 64
63.1
63.2
63.2
64.1
64.2
Place 5x8x0.1 and/or 5x8x0.3 shims
to achieve a small amount of end play.
Assemble without
bearings
Disassemble the clucth bell.
Clutch gap is calculated taking A and B measurements showed below.
GAP = B - A. The advised gap is between 0.6 and 0.8mm
Pull the clutch bell forward Push the clutchbell back
A
A
B
B
M3x16
M3x16
M3x16
5x10x3
SETTINGTHECLUTCHGAP
SETTINGTHECLUTCHENDPLAY
Use 5x8x0.1 and
5x8x0.3 shims to
achieve desired
gap.
M3x16
5x8x0.1 5x8x0.3
5x10x3
IMPORTANT! Install thrust
bearing plates as shown.
5.2 mm 5.0 mm
A
B
