Serpent VIPER 990e - Rear Camberlink and Pivot Setup

12
STEP 14
14.1
1.5 mm
REARCAMBERLINKLENGTH
REARCAMBERLINK
DEFAULTPOSITION
14.2

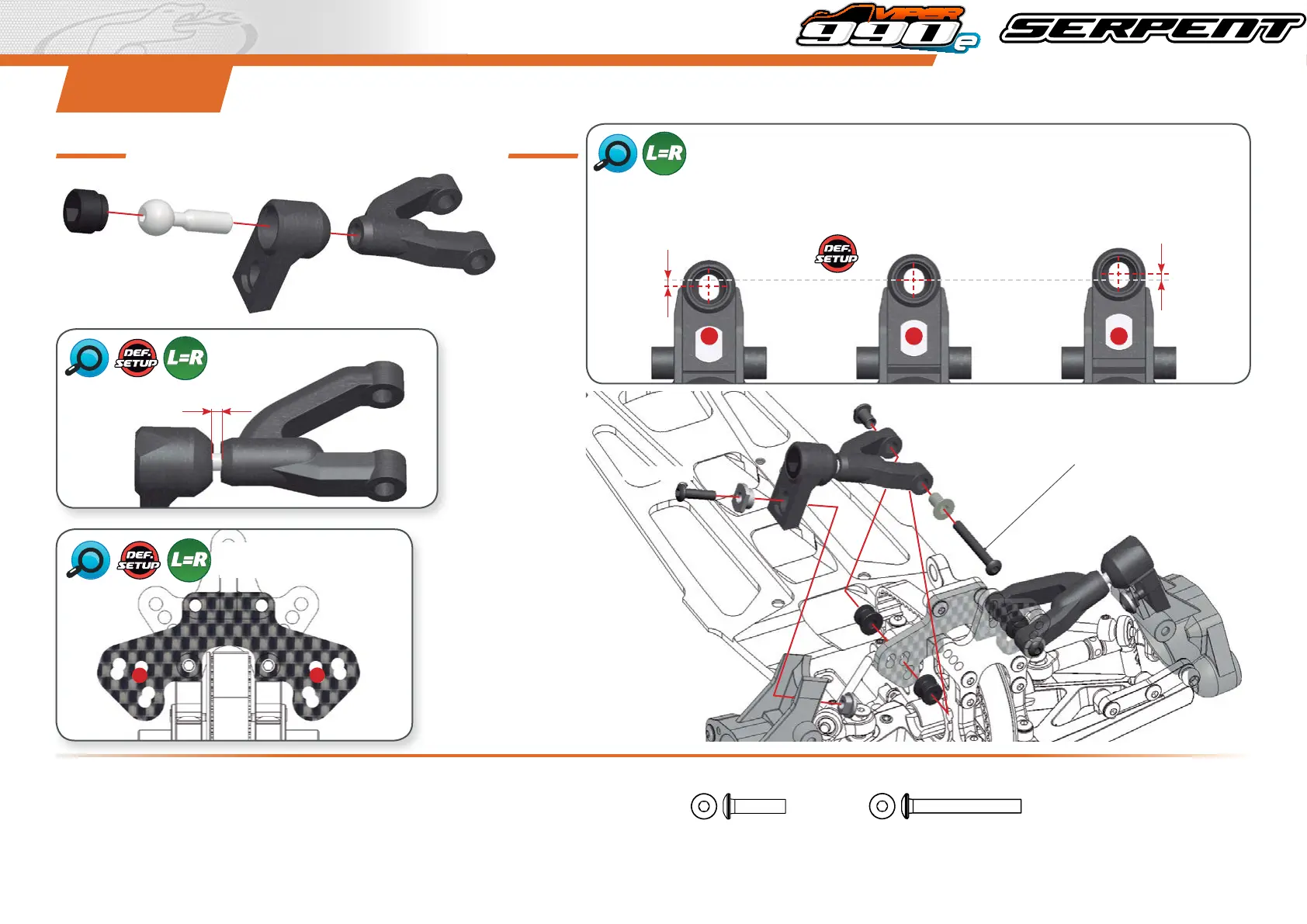

Serpent introduces a new way to adjust the height of the upper pivot on the upright. By changing the
excenter, it is possible to move the position up or down by 1.5mm as well as using a “neutral” position.
REARUPPERWHSIBONEANGLE
LOWERPOSITION MIDPOSITION UPPERPOSITION
-1.5 mm
+1.5 mm
M3x12
M3x25
M3x12
M3x25
