SCORPIO LIGHT SERIES 10’/17’/23’L - F.A.Q. / COMMON PROBLEMS - Fuses
Version 1.04 May 26, 2022
72
7.4 FUSES

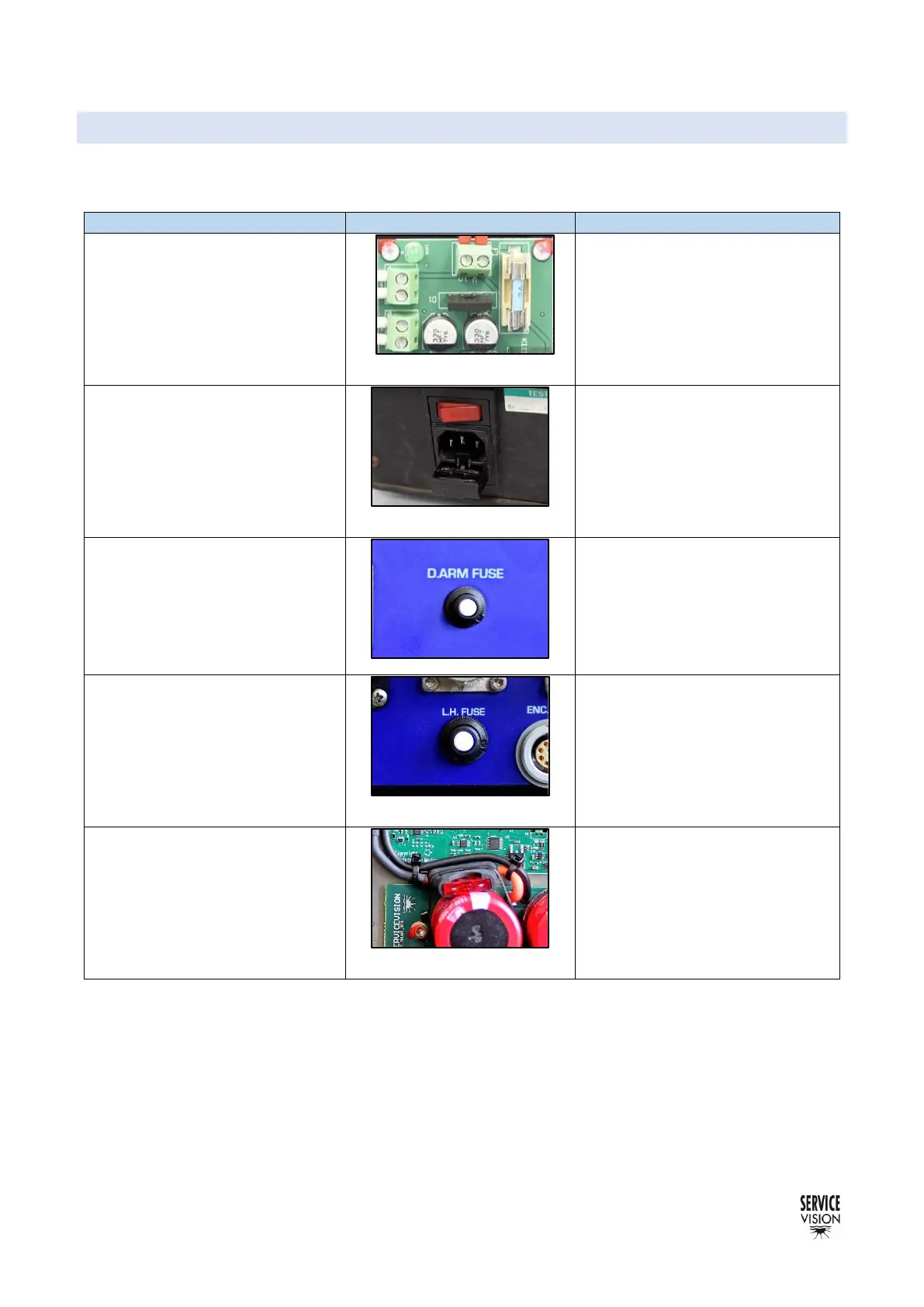

It could be that one of the fuses inside the electronic box is broken. The way to know which fuse is
blown is the next one:
The system does not start
This fuse is located in the
security system board. It protects
all the securities of the system
(HC, Start button and
Emergency stop).
The Power Unit does not give
any output voltage
The P.U. is a 30v 40Amp power
supply. It has a 15Amp fuse in
the back part. It is powered from
AC current and has two 3pin XLR
outputs for the remote head.
When the rocker in the Hand
Command sends signal, there is
an error message in the screen
and the motor does not move
This fuse protects the arm motor
in case the cable is broken, try to
release it.
The Leveling Head has no
power
This fuse protects the leveling
head in case the leveling head
cable is broken.
When the crane stops, it does
not stop smoothly
This is a fuse in the SHUNT
AMP. It protects the SHUNT
resistance of the ARM driver.
