SCORPIO LIGHT SERIES 10’/17’/23’L - CRANE ASSEMBLY PROCESS S10’ - Description of the plywood crates
Version 1.04 May 26, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 91
comercial@servicevision.es · www.servicevision.es
10 CRANE ASSEMBLY PROCESS S10’
Before starting the assembly of the SCORPIO 10’ it is important to identify all the transport plywood
crates and know what is inside each one, thereby it will be more practical and intuitive.

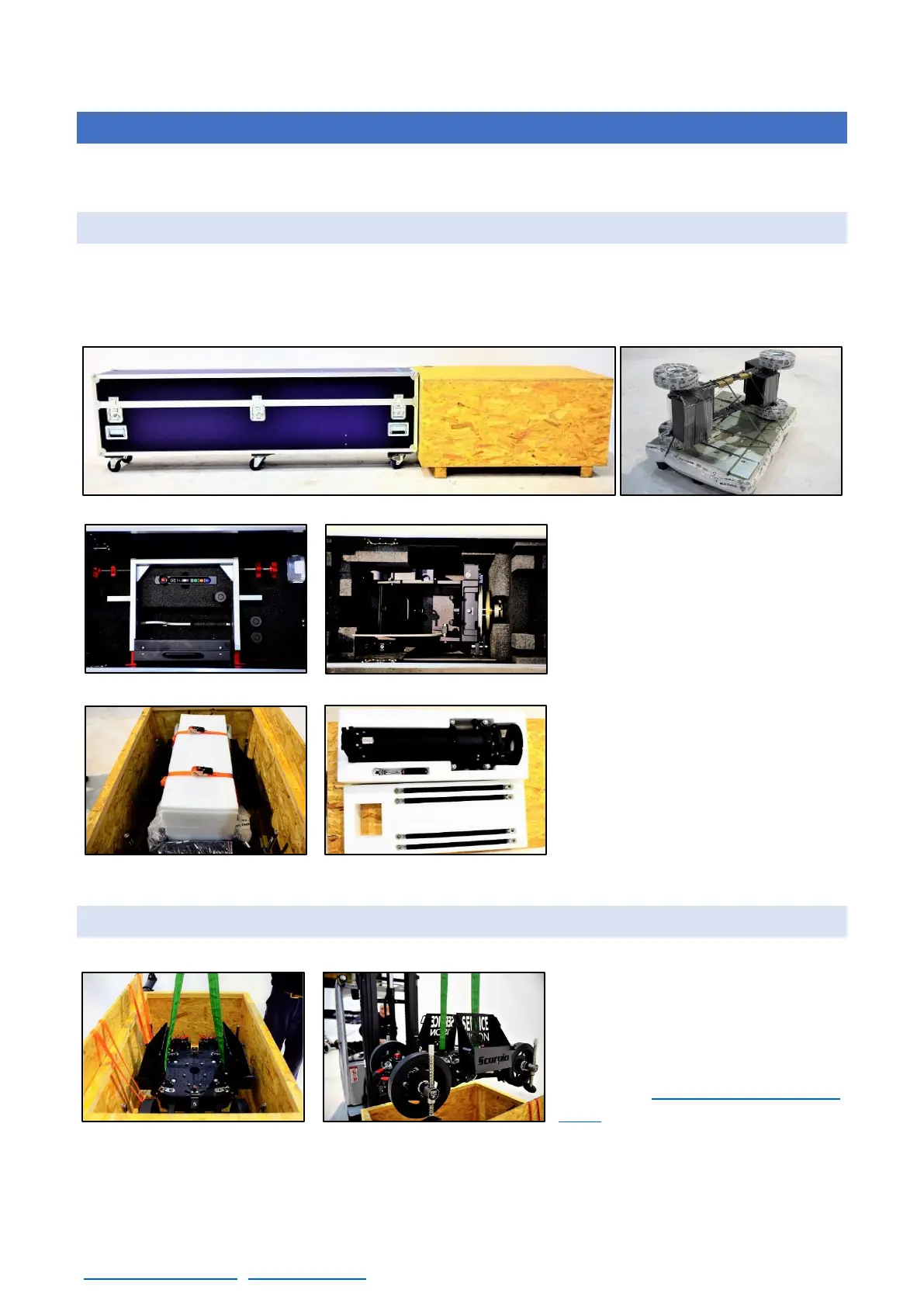

10.1 DESCRIPTION OF THE PLYWOOD CRATES
The SCORPIO 10’ is send in three lumps: one flight case, one plywood crate and one pallet. Inside
the flight case there is the arm with the electronic box, leveling head and all the accessories of the
arm. Inside the crate there is the dolly and the column with the tools to operate them and, in the pallet,
there are the counterweights and the counterweight dollies.
Inside the flight case there is the
main arm. Under the main arm there
is the counterweight support and the
fulcrum as well as the rest of the
accessories of the arm. To have
access to these parts the arm must
be taken out of the box.
In the dolly box there is the column on
top of it. To have access to the dolly,
the column must be taken out first.
10.2 CRANE ASSEMBLY
The first thing to do is to open the plywood crate and remove the column and the accessories until
there is access to the dolly. It is
recommended to lift the dolly using a
forklift as seen in fig.10.08. With the
dolly on the ground, the legs can be
adjusted into a working position as
seen in the chapter 2.1.3 Articulated
arms.
