SCORPIO LIGHT SERIES 10’/17’/23’L - CRANE ASSEMBLY PROCESS S10’ - Crane assembly
Version 1.04 May 26, 2022
92
The steering handles can be
introduced to relocate the dolly base in
another position by tightening their
screws DIN912 M10x30mm
(fig.10.09).
The column is attached to the dolly
with the 6 screws (DIN912
M10x25mm) and secured with the
tensors from the same box. Once
attached, open the flight case, and
remove the arm from it in order to have
access to the fulcrum underneath.
Remove the fulcrum, the bars and the
counterweight support from the flight
case and attach the fulcrum into the
column using the mitchell mount tool.
With the fulcrum assembled, introduce
the arm into it between two or more
people or using lifting devices such as
forklifts. Secure the arm with straps
once it is in place and lock it to the
fulcrum. Mount the counterweight
support and the sidebars.
Now the crane is ready to be
connected and used
In the event there is needed to mount an extra cable (BNC, Fiber cable…), the arm needs to be
extended to reach the magnetic limit of extension. With the arm fully extended, attach the extra cables
to the cables already mounted and move the arm in and out to verify the optimal behavior of the cable
loom.

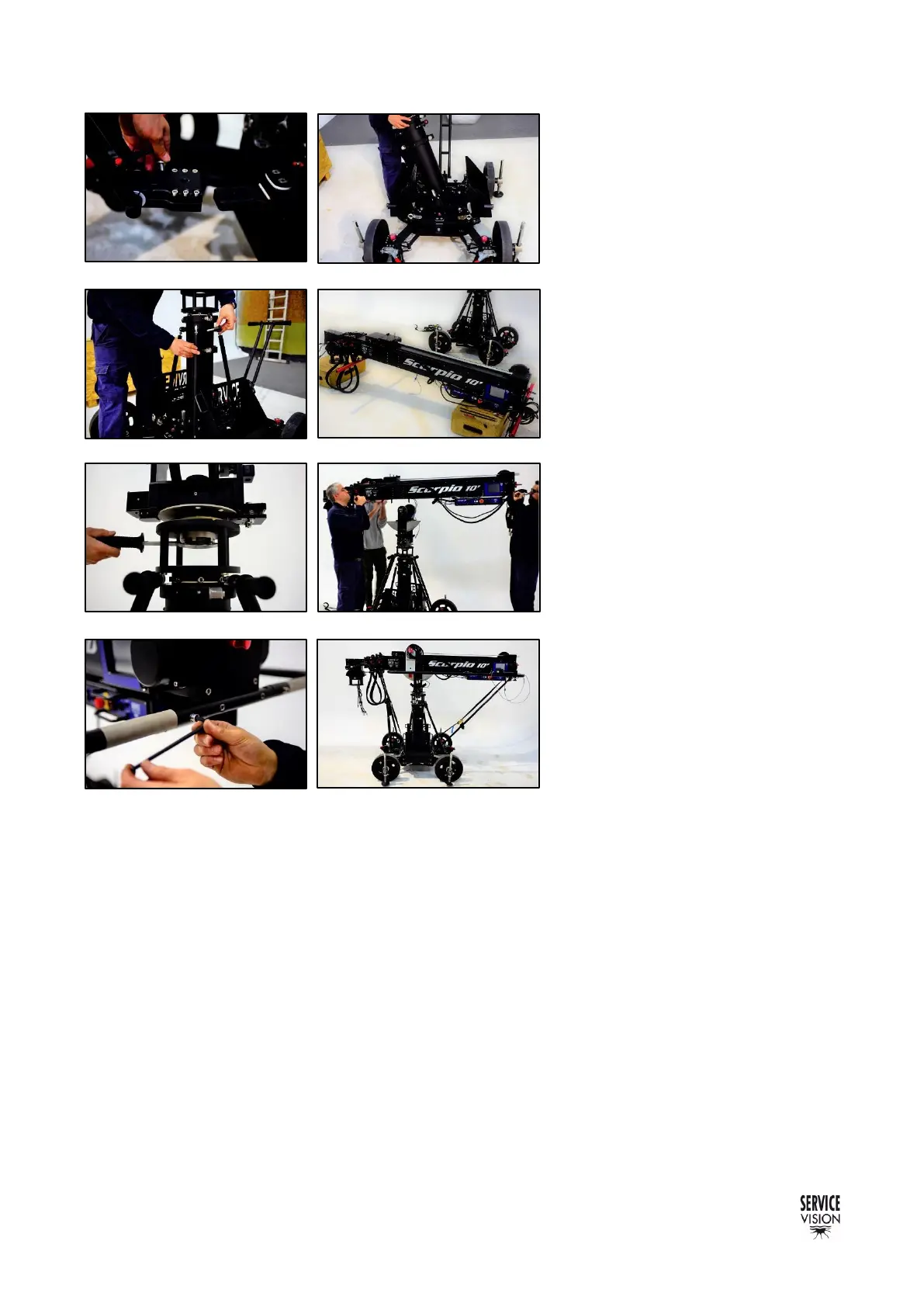

10.09 Steering assembly.
10.10 Column assembly.
10.11 Tensors on the column.
10.12 Arm resting outside the box.
10.13 Fulcrum being attached.
10.14 Arm being introduced.
10.15 Bars being tight.
10.16 Crane assembled.
