Technical Setup • Super II 88
LOW TARGET HIGH LATCH
ALARM 1 LO HI HI HI
ALARM 2 LO LO HI HI
ALARM 3 LO LO LO HI
Select Alarm to program:
ALARM1 ALARM2 ALARM3 GO BACK
LOW TARGET HIGH LATCH
ALARM 1 LO HI HI HI
ALARM 2 LO LO HI HI
ALARM 3 LO LO LO HI
Alarms Outputs:
ENABLE DISABLE PROGRAM GO BACK
Select program of LEVELs or toggle LATCH:
LOW TARGET HIGH LATCH
ALARM 1 LO LO HI HI
LEVEL LATCH GO BACK
Select programming Alarm LEVEL or LATCH:
LOW TARGET HIGH LATCH
ALARM 2 LO LO HI HI
LEVEL LATCH GO BACK

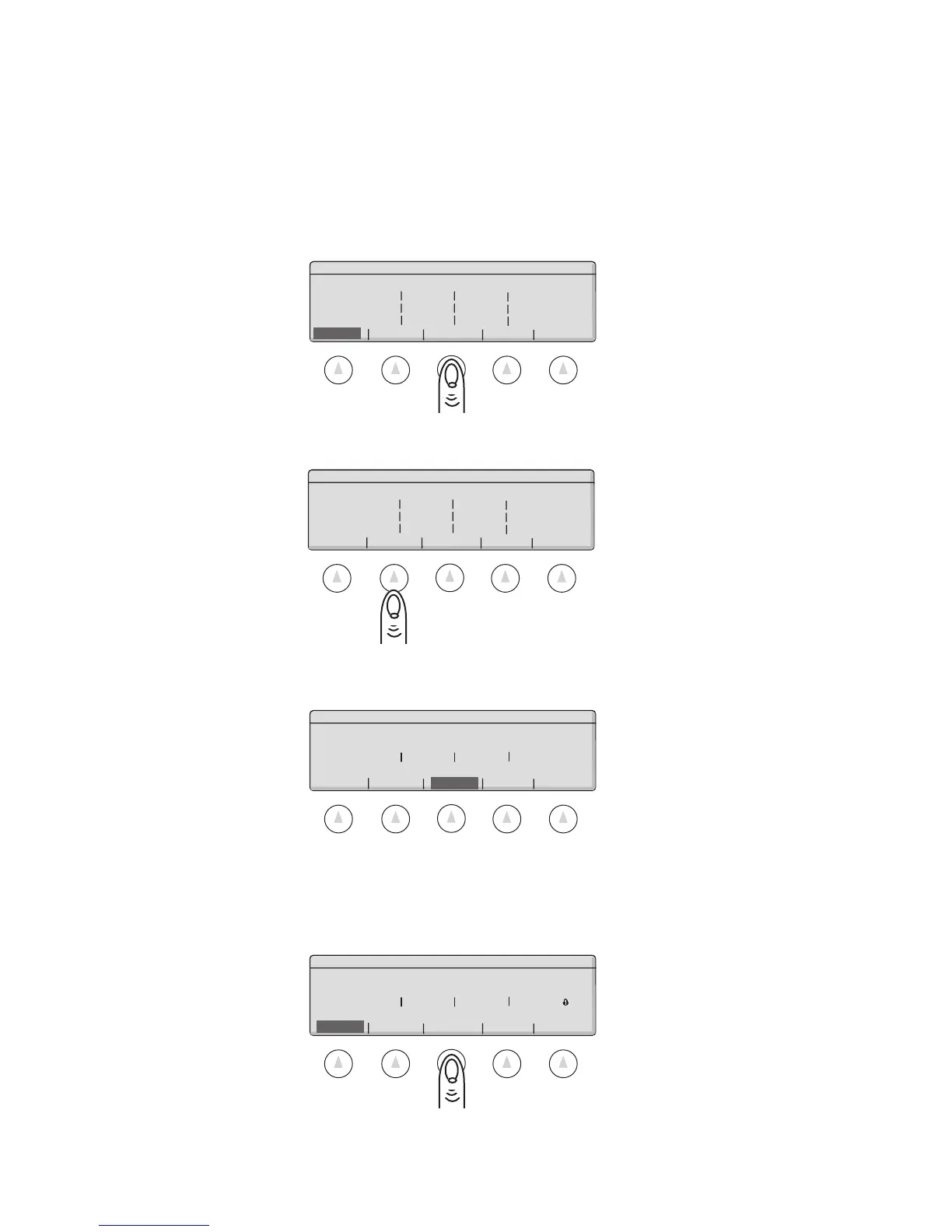

When the alarms are disabled, all the outputs are set to their zero weight states. When the alarms are
enabled they follow the chart shown on the ALARM OUTPUTS screen where LO indicates that the alarm
pin will be 0 volts relative to ground and HI indicates 5 volts. Thus, on the display shown below, when the
weight is between the TARGET and HIGH set points the output of ALARM1 is HI, ALARM 2 is HI, and ALARM
3 is LO. Use the soft keys to enable and disable the alarms. Press the PROGRAM soft key to program the
chart.
When the program key is pressed,
the following soft keys are shown:
Select ALARM1, ALARM2, or ALARM3 to program a particular alarm. When you select an alarm, the
following display appears:
If the LATCH soft key is pressed, a “lock” is displayed in the LATCH column, causing the alarm to be latching
(see above description). If no symbol is present in the LATCH column, the alarm is non-latching.
