Scheme Settop M1
For a good understanding of the equipment, please study the following diagrams

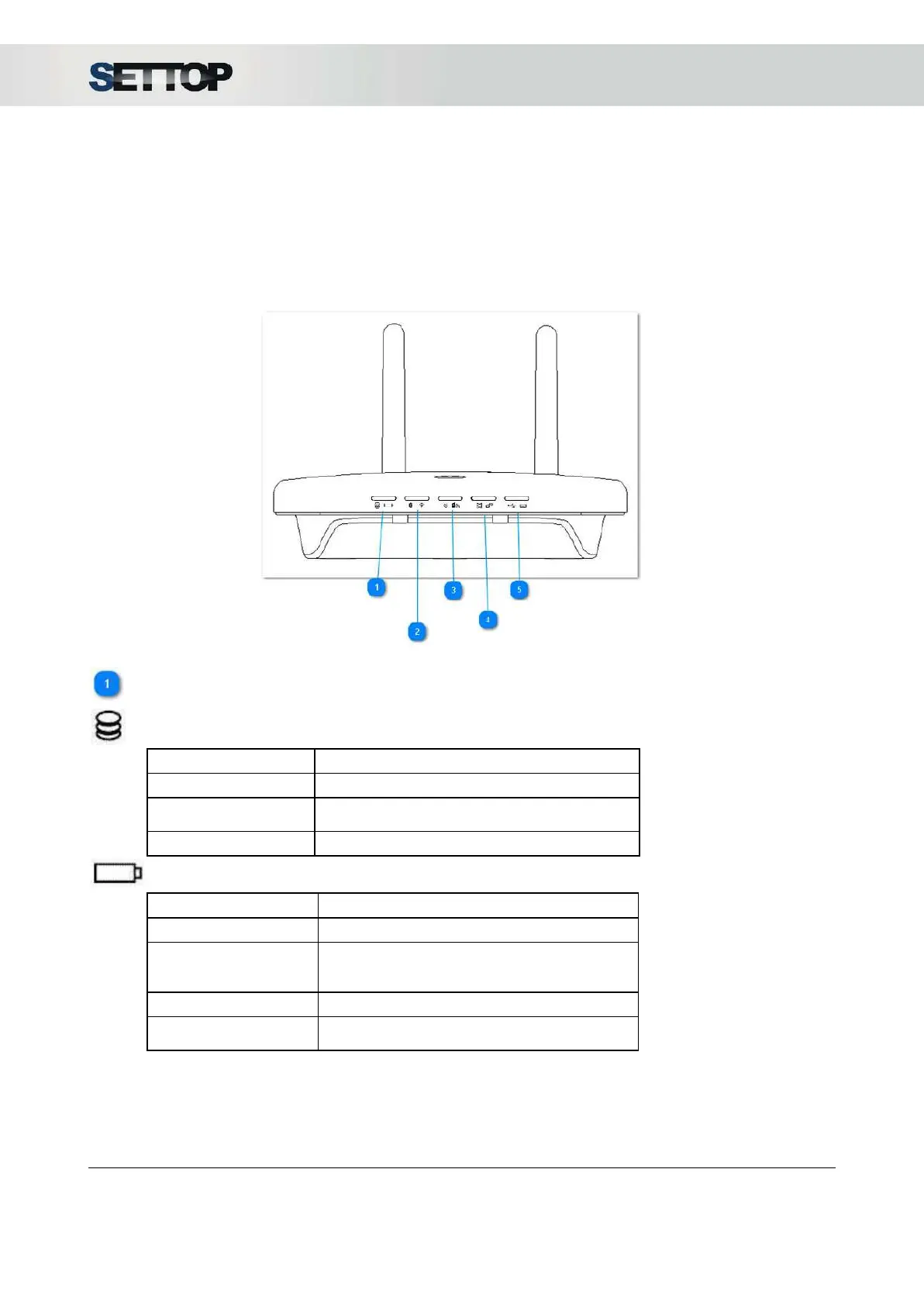

Front View
Post-process
Post-process (Green LED)
Status
Action
Turned Off
Doesn't store data
Constant
flashing 1s
Storing data
Fixed
Full memory
Power (Red LED)
Status
Action
Turned Off
Not connected
Flashing fast
and
continuous
Low battery
Fixed
Turned on
Flashing (1)
every 10s
Standby
*
* Power on unit, but unit is turned off
