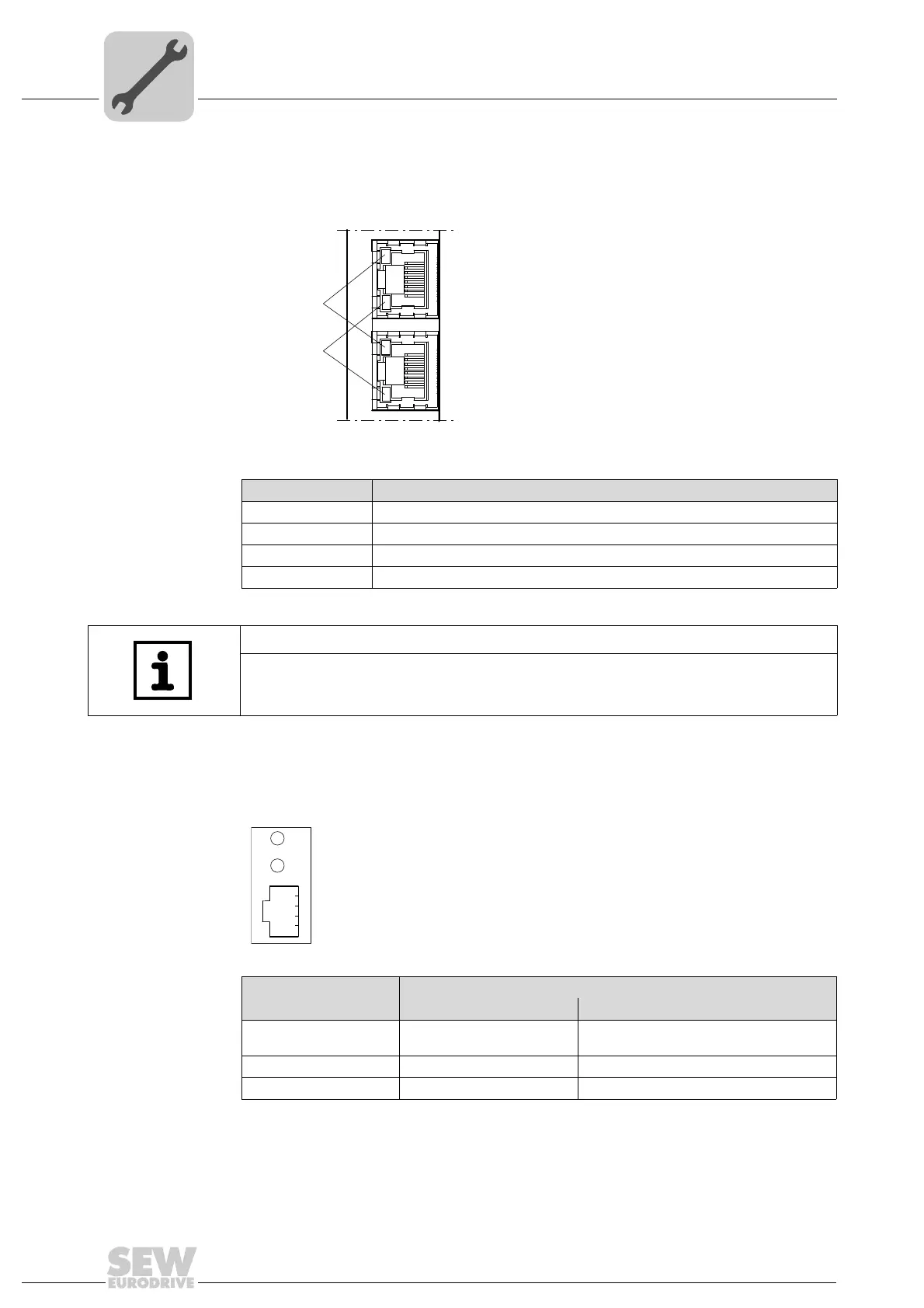

Status LED of the DFE33B option
20
Manual – Fieldbus Interface DFE33B EtherNet/IP and Modbus/TCP
Link/Activity LED The two LEDs Link (green) and Activity (yellow), integrated in the RJ45 plug connec-
tors (X30, X32), display the status of the Ethernet connection.
4.5.1 Gateway LED
LEDs H1 and H2 indicate the communication status in gateway operation.
•LED H2 (green) is currently reserved.
• X-terminal X24 is the RS485 interface for diagnostics via PC and MOVITOOLS
®
MotionStudio.
61880AXX
LED / status Meaning
Link / green There is an Ethernet connection.
Activity / yellow Data is currently being exchanged via Ethernet.
Link / off There is no Ethernet connection.
Link (X30) / flashes Locating function of Address Editor (see section 10)
X30
X32
LED "Link"
LED "Activity"
TIP
As the firmware of the DFE33B option card takes approx. 15 seconds for initialization,
the status "0" (inverter not ready) is displayed in the 7-segment display of
MOVIDRIVE
®
during this time.
58129AXX
LED H1 Sys-fault (red) Only for gateway operation
Status State Description
Red System bus error Gateway not configured or one of the drives
is inactive
Off SBus ok Gateway is configured correctly
Flashing Bus scan Bus is being checked by the gateway
