Project Planning and Startup (EtherNet/IP)
Project planning examples in RSLogix5000
Manual – Fieldbus Interface DFE33B EtherNet/IP and Modbus/TCP
53
5.5.4 MOVITRAC
®
B unit parameter access via DFE33B / UOH11B
The access to MOVITRAC
®
B unit parameters via EtherNet/IP SBus gateway DFE33B /
UOH11B is identical to the access to MOVIDRIVE
®
B parameter data (see
section 5.5.3).
The only difference is that Read/WriteParameterRequest.SubChannel1 must be set
to 2 and Read/WriteParameterRequest.SubAddress1 must be set to the SBus
address of the MOVITRAC
®
B connected to the DFE33B / UOH11B (see following
figure).
In this example, MOVITRAC
®
B connected to the DFE33B gateway with SBus
address 7 read the value 150 rpm from P160 fixed setpoint n11 (index 8489).
See the "Appendix" for a schematic representation of the parameter access to lower-
level units.

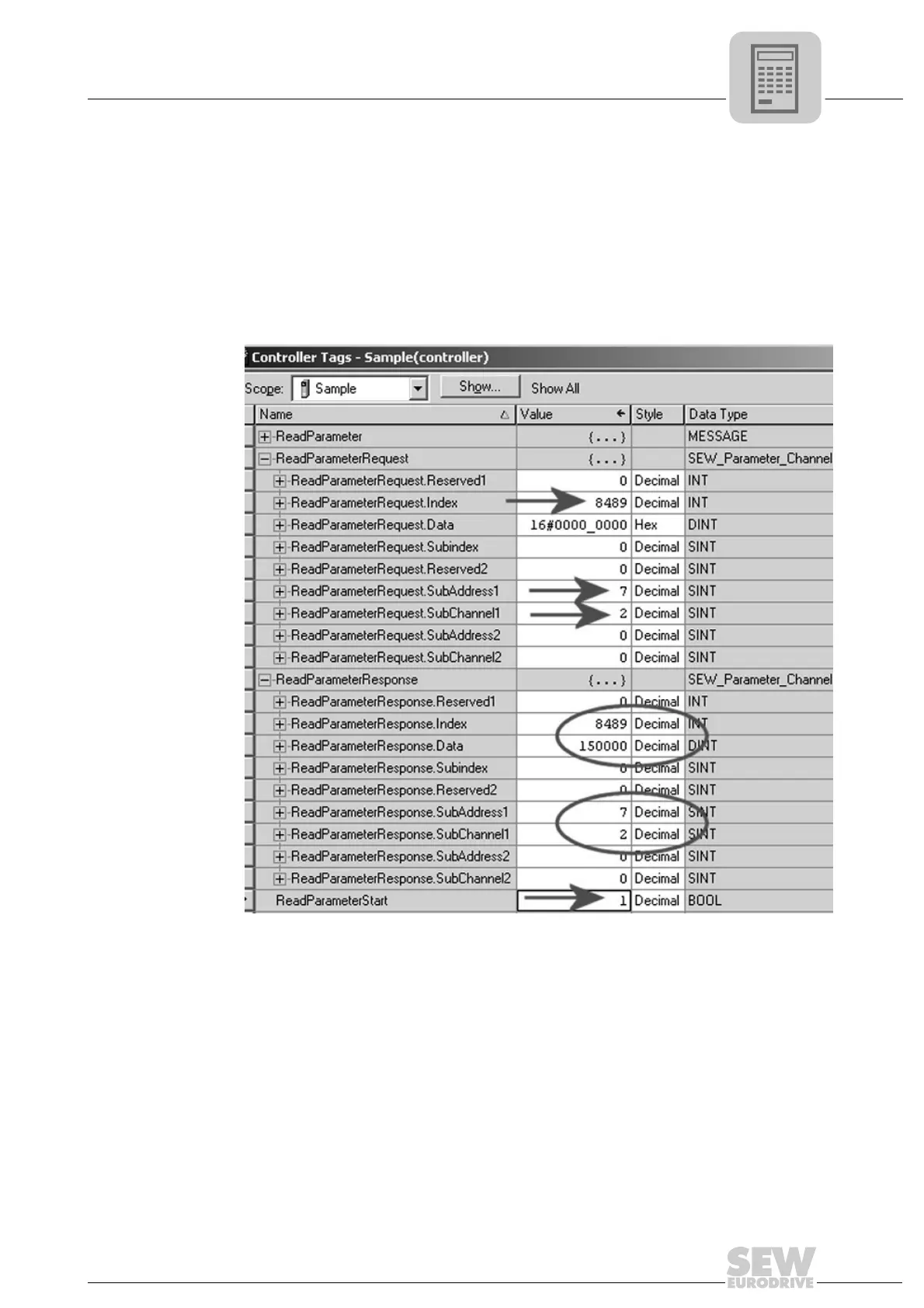

11775AXX
