5
Electrical installation
PC connection
Operating Instructions – MOVIMOT
®
flexible
153
Connection to X4141 (M12 at the connection box)
NOTICE
Unauthorized insertion of the STO jumper plug into the engineering interface.
Damage to the device.
Never insert the STO jumper plug into the engineering interface.

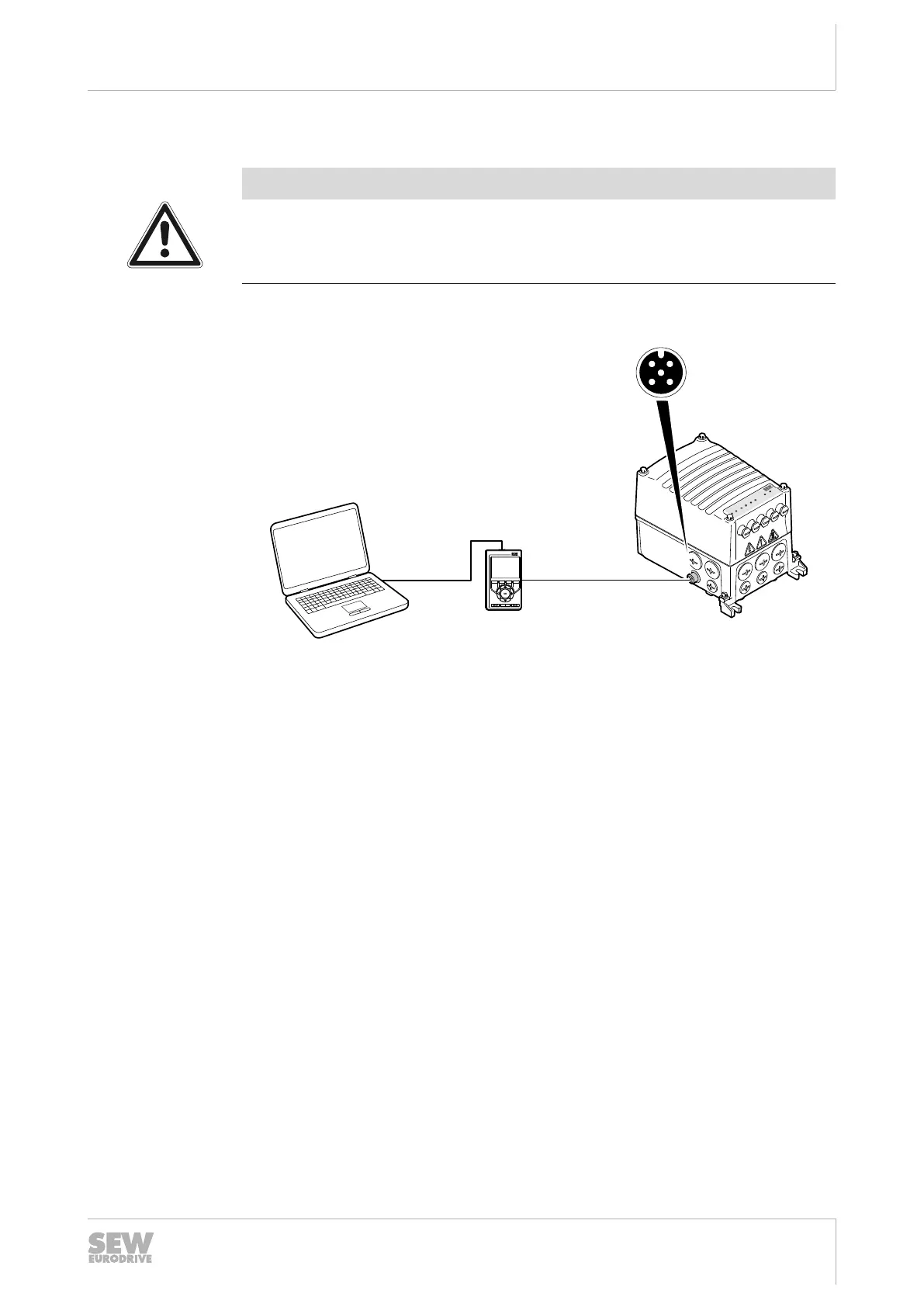

The following illustration shows how to connect the PC to the device:
X4141
[1] [3]
[2]
USB
9007225094179851
[1] Connection cable USBA/USB2.0MiniB
(available for delivery from SEW‑EURODRIVE, part number: 25643517)
[2] CBG21A or CBG11A keypad
[3] D-Sub/M12 connection cable
(available for delivery from SEW‑EURODRIVE, part number: 28117840)
29128668/EN – 12/2019
