3.7 Electronics
3.7.1 Electronics cover (inside) and connection box
Design MMF1.

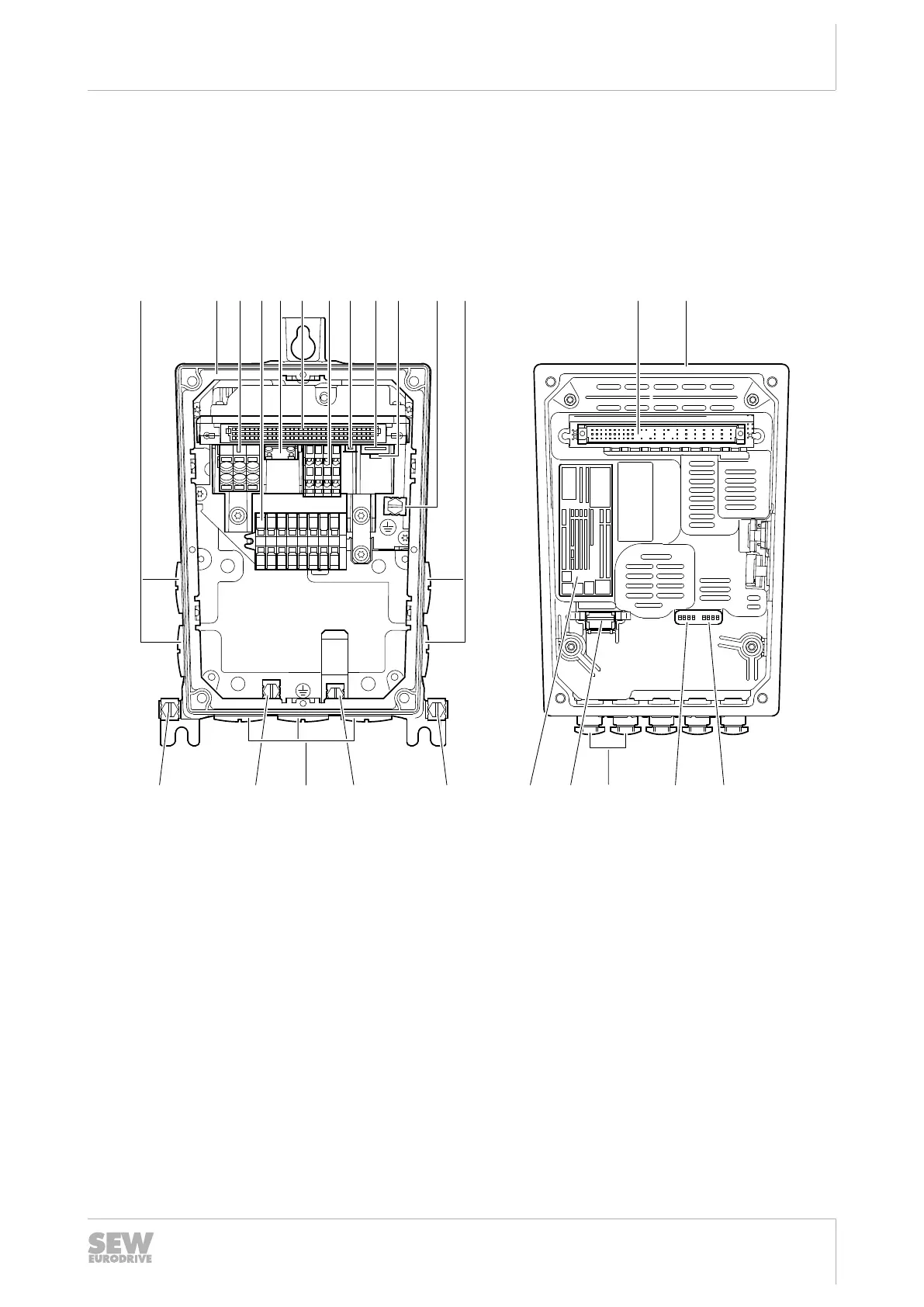

The following figure shows the connection box and the bottom side of the electronics
cover:
S1 1 2 3 4 1 2 3 4 S2
OnOn
D C B A1 T2 U V W
[2] [3] [8] [9][4] [6] [6][5] [7] [1][1] [12]
[11]
[11] [11][11][1] [16] [13][8]
[10] [11]
[14][15]
27021623539093131
[1] Cable glands
[2] Connection box
[3] Connection line L1, L2, L3
[4] Connection for motor, brake and temperature sensor
[5] Braking resistor connection
[6] Plug connector connection unit for electronics cover
[7] Electronics terminal strip
[8] Fieldbus connection (depends on the configured connections)
[9] Engineering interface
[10] MOVILINK
®
DDI connection
[11] Screws for PE connection
[12] Electronics cover
[13] DIP switches S1/1 – S1/4
[14] DIP switches S2/1–S2/4
[15] Replaceable memory module
[16] Electronics cover nameplate
