3
Device structure
Cable entry position
Operating Instructions – MOVIMOT
®
flexible
16
3.3 Cable entry position
3.3.1 Design MMF1.
The following cables entries are possible for the device:
• Position X + 2 + 3
– X: 2 × M25 × 1.5 + 2 × M16 × 1.5
– 2: 2 × M25 × 1.5 + 2 × M16 × 1.5
– 3: 3 × M25 × 1.5 + 3 × M16 × 1.5

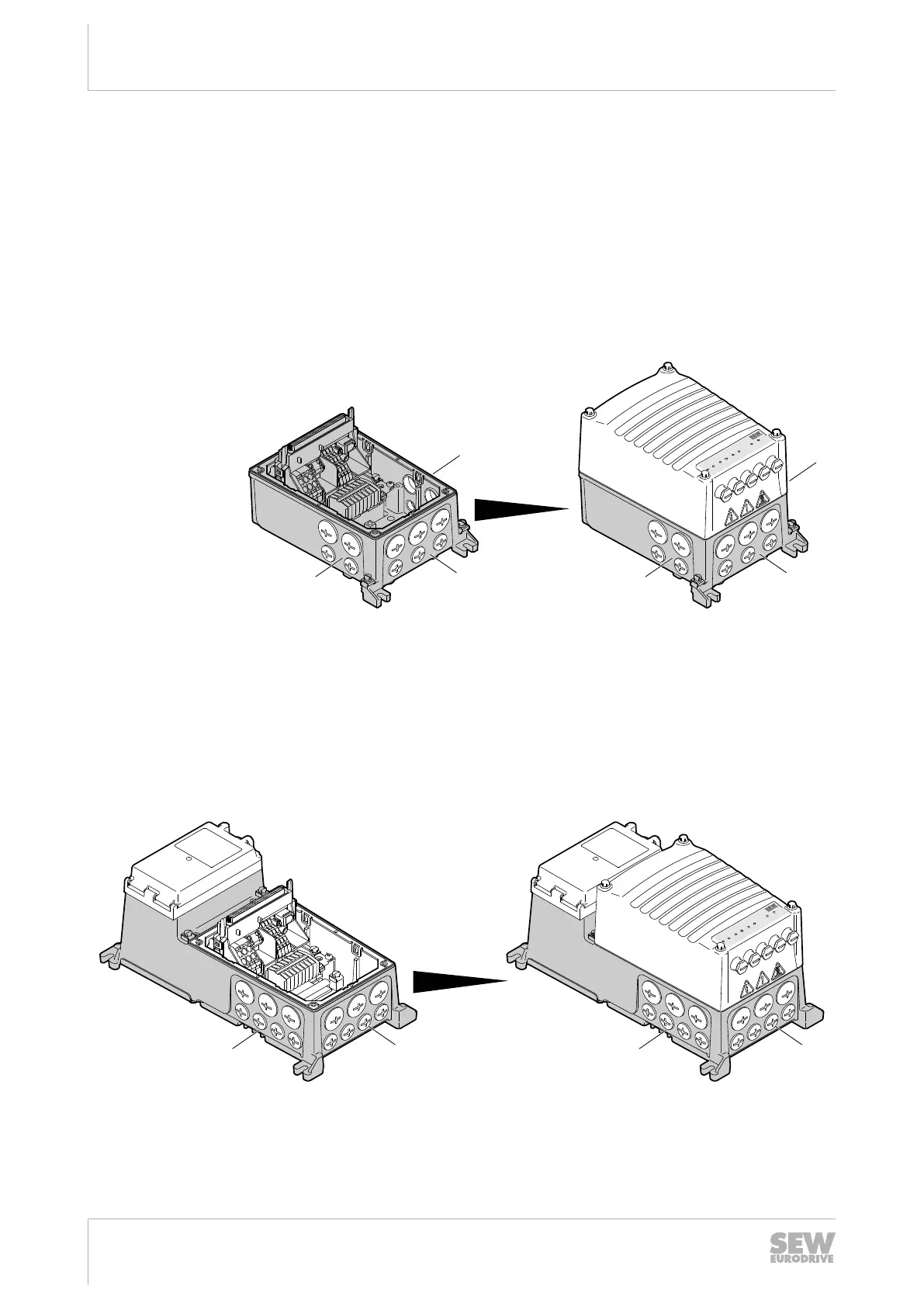

The following figure shows the possible cable entries:
9007225029614731
3.3.2 Design MMF3.
The following cables entries are possible for the device:
• Position X + 3
– X: 3×M25×1.5+4×M16×1.5
– 3: 3×M25×1.5+4×M16×1.5
The following figure shows the possible cable entries:
25810616715
29128668/EN – 12/2019
