6
Startup
DIP switch
Operating Instructions – MOVIMOT
®
flexible
160
6.3 DIP switch
6.3.1 Overview
NOTICE
Damage to the DIP switches caused by unsuitable tools.
Possible damage to property.
• To set the DIP switches, use only suitable tools, such as a slotted screwdriver
with a blade width of no more than 3mm.
• The force used for setting the DIP switches must not exceed 5N.

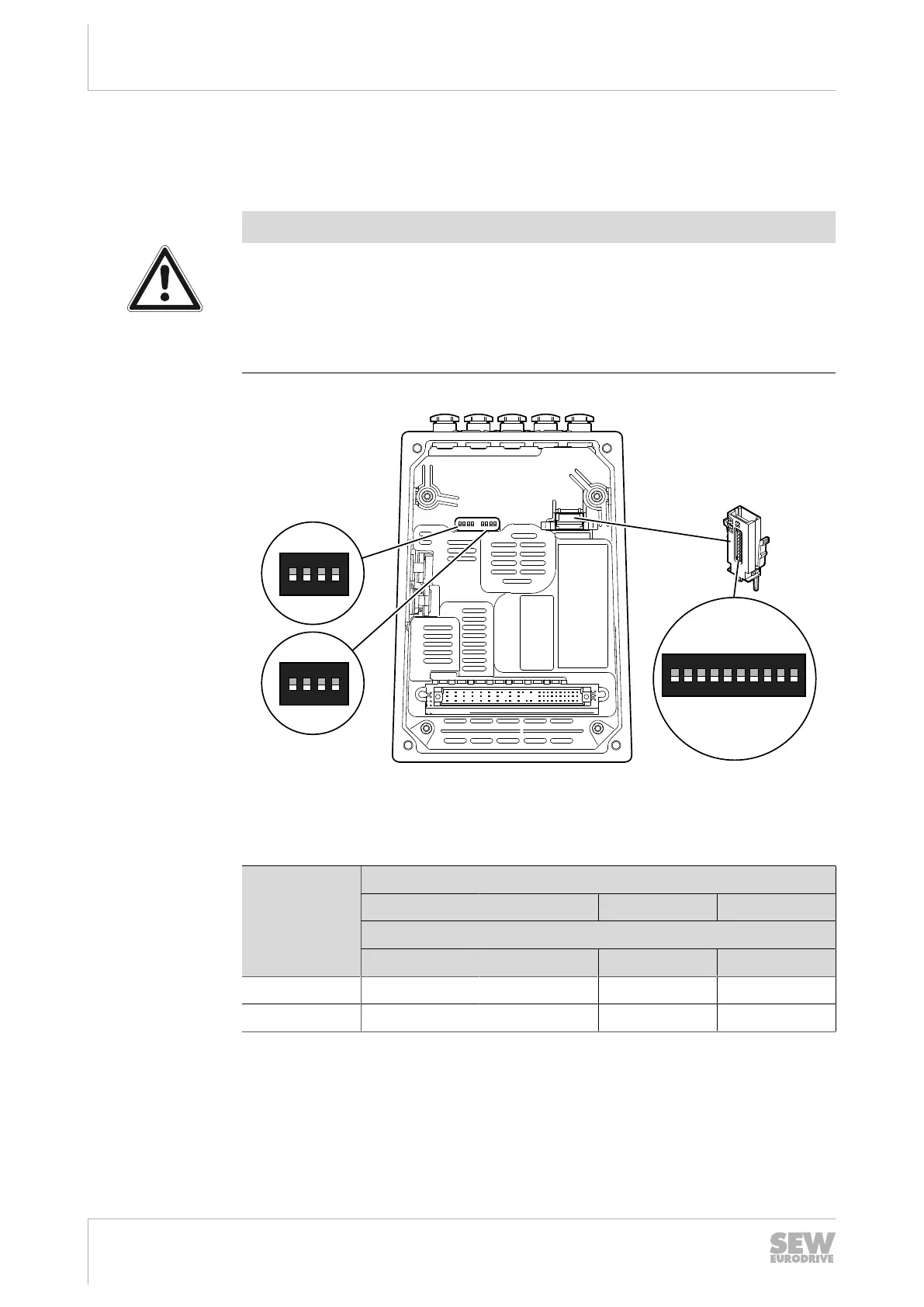

The following figure shows the DIP switches of the device:
S1 1 2 3 4 1 2 3 4 S2
OnOn
ON
1 2 3 4
S1
ON
1 2 3 4
S2
ON
1
S3
2 3 4 5 6 7 8 9 10
25859470347
DIP switch S1
The following table shows the functions of DIP switch S1:
DIP switch S1
1 2 3 4
Binary coding EtherCAT
®
device ID
Bit 2
0
Bit 2
1
Bit 2
2
Bit 2
3
ON 1 1 1 1
OFF 0 0 0 0
29128668/EN – 12/2019
