11
Technical data and dimension sheets
Dimension drawings of plug connectors in the connection box
Operating Instructions – MOVIMOT
®
flexible
401
Plug connector including mating connector
INFORMATION

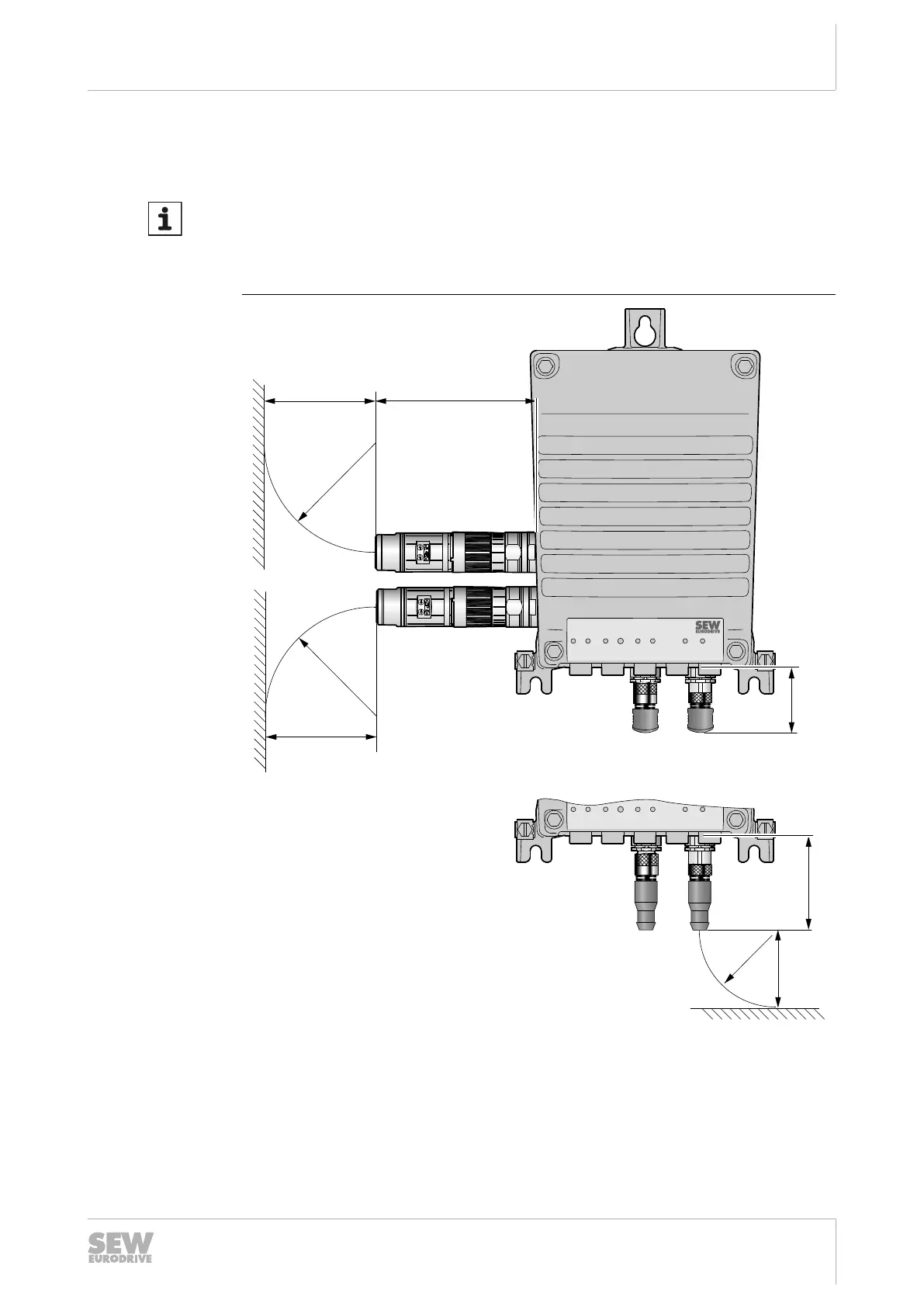

• The following figure shows the additional dimensions/bending radii of the optional
plug connectors including mating connector in connection with prefabricated
cables from SEW‑EURODRIVE.
• For more information, refer to chapter "Plug connector positions".
[2]
[2]
R28
[4]
28
66
[3]
[4]
113
75
R75
[1]
R75
[1]
75
48
[3]
30295484939
[1] Bending radius
[2] "Straight" plug connector variant M23
[3] "Right-angle" plug connector variant M12
[4] "Straight" plug connector variant M12
29128668/EN – 12/2019
