Electrical installation
Cable routing and cable shielding
Operating Instructions – MOVIMOT
®
flexible
71
Motor connection for motors with digital interface (MOVILINK
®
DDI)
(Connection unit with /CO option)

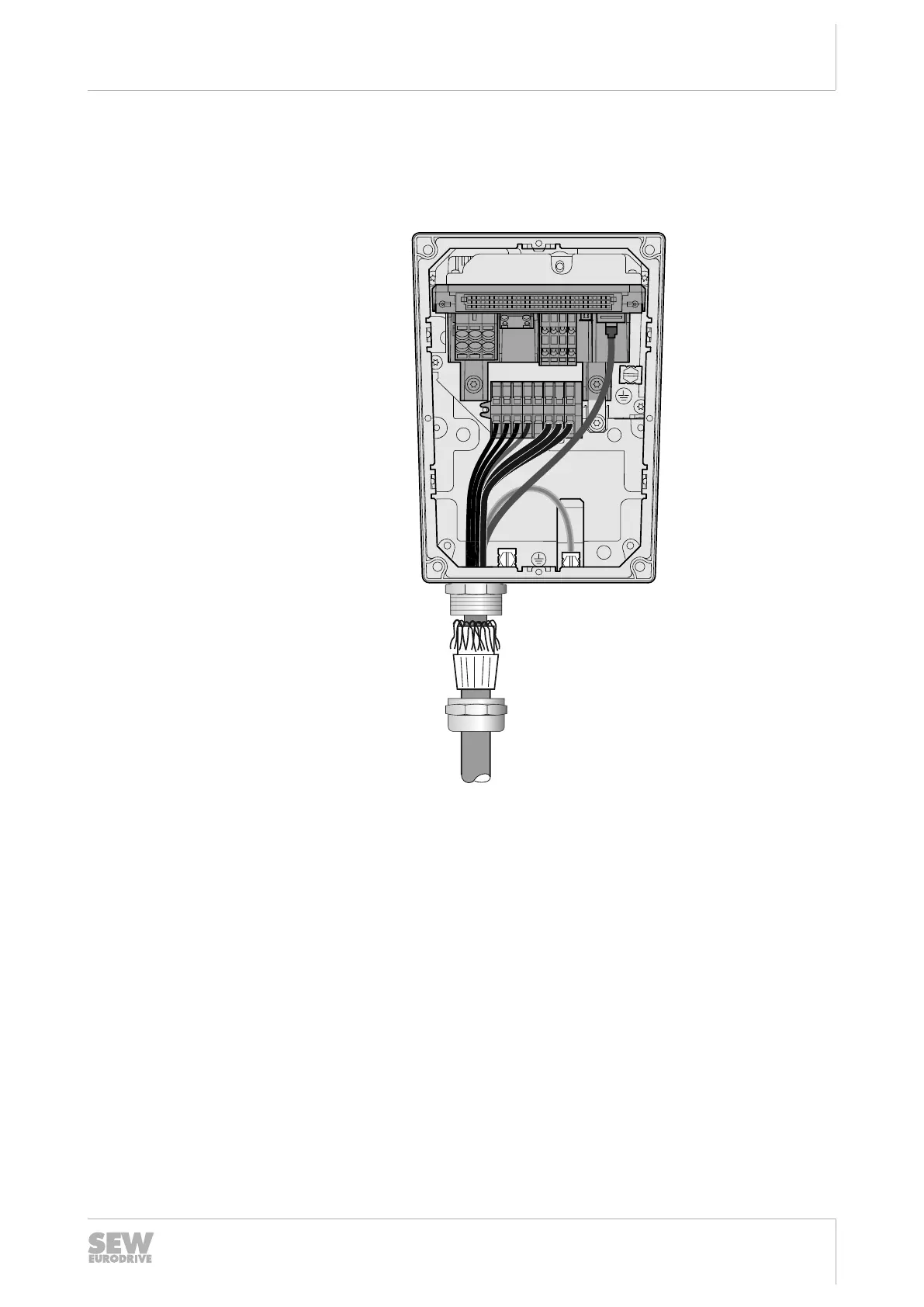

The following figure shows the motor connection with hybrid cable for motors with di-
gital interface:
D C B A1 T2 U V W
[1]
27021624336393739
[1] Motor connection for motors with digital interface (MOVILINK
®
DDI)
29128668/EN – 12/2019
