Electrical installation
Plug connectors
Operating Instructions – MOVIMOT
®
flexible
76
5.10.3 Connection cables
INFORMATION
For more information on cable types, refer to chapter Technical data."
Connection cables are not included in the scope of delivery.
Prefabricated cables for connecting SEW‑EURODRIVE components can be ordered.
For each connection, the available prefabricated cables are listed. Specify the part
number and length of the required cable in your order.
The number and design of the required connection cables depend on the type of the
device and the components to be connected. This is why you do not need all listed
cables.

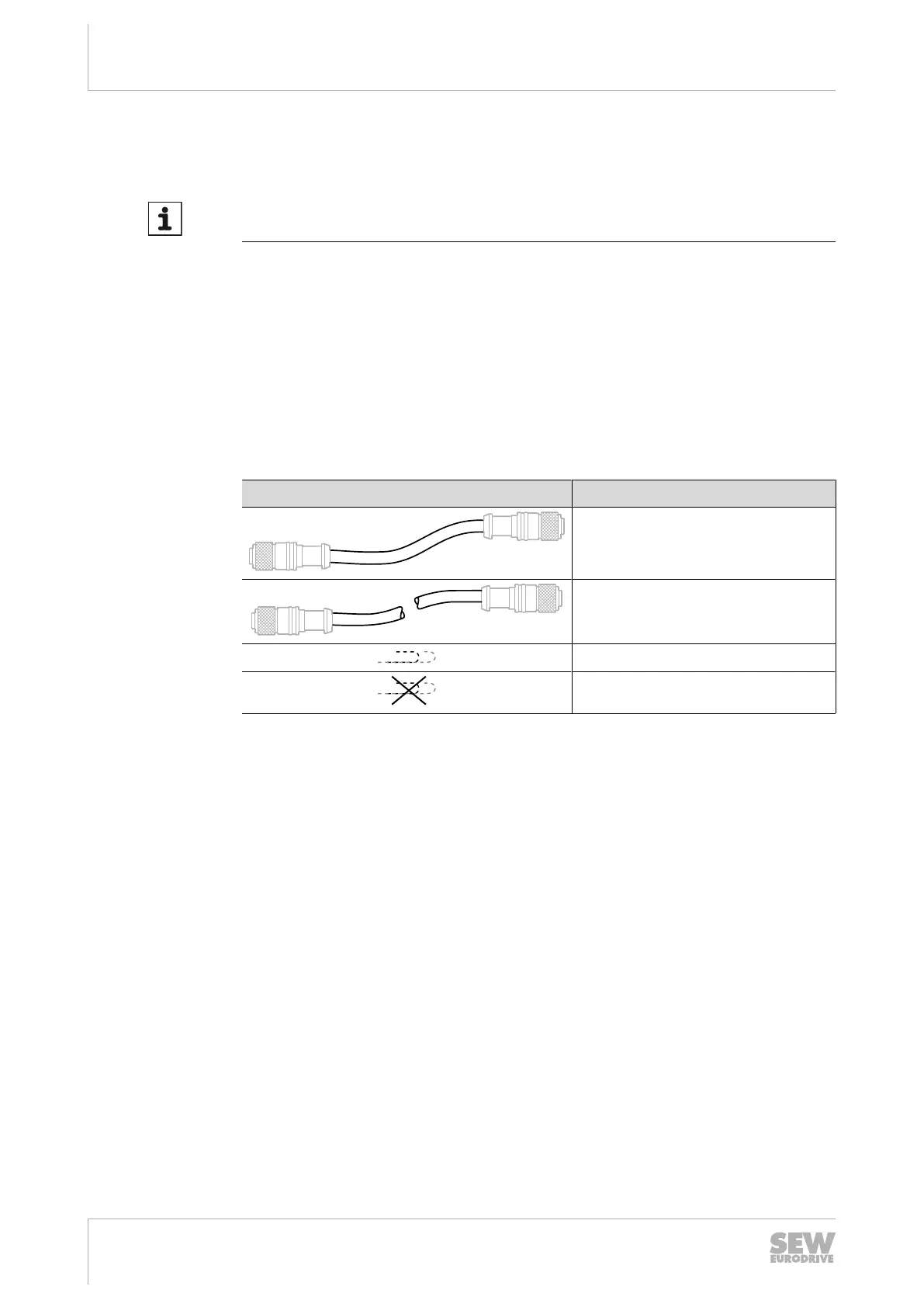

Cable types
The table below shows the depiction and what they mean:
Representation Meaning
Fixed length
Variable length
Suitable for cable carriers
Not suitable for cable carriers
Cable routing
Observe the permitted bending radii of the installed cables for cable routing. For de-
tailed information, refer to chapter "Technical data" > "Dimension sheets" > "Plug con-
nectors including mating connectors".
