Electrical installation
Plug connectors
Operating Instructions – MOVIMOT
®
flexible
84
Plug connector Not together at a
position with the
plug connector:
Designation Coding ring/
color
Function Position
X5004_3 Black Digital inputs
3)
3 X5505
– – [1] Optional pressure compensation 3 X5504
1) Plug connectors X5504 and X5505 can only be ordered as a bundle.
2) Plug connector X1523 can be ordered seperately (i.e. without plug connector X2313).
3) The plug connectors X5004_1, X5004_2, and X5004_3 can only be ordered as a bundle.
5.10.5 Plug connector positions at the electronics cover

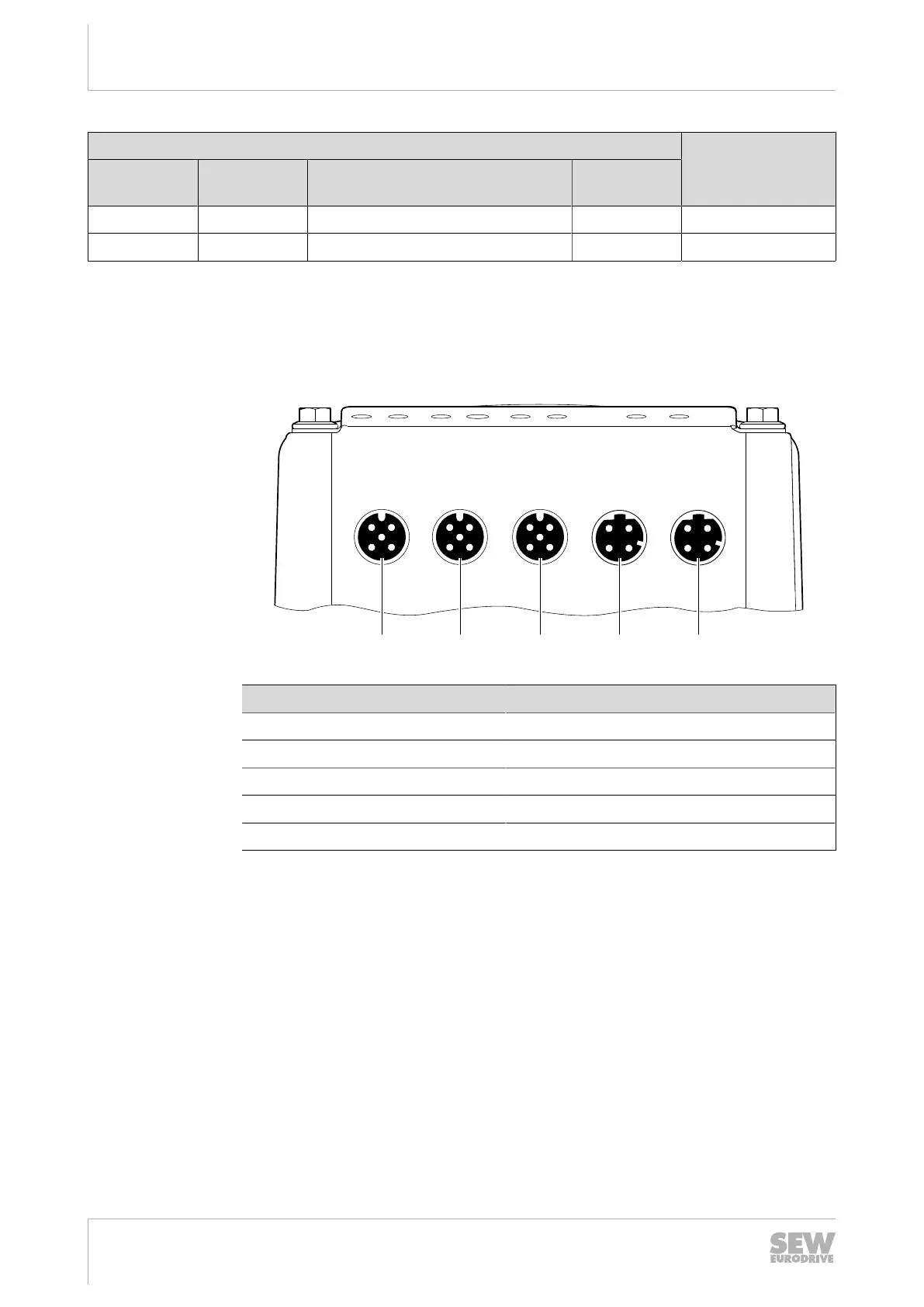

The following figure shows the plug connector positions:
X5133_1 X5133_2 X5133_3 X4233_1 X4233_2
18014420217585035
Plug connector Function
X5133_1 Digital inputs DI01 and DI02
X5133_2 Digital inputs DI03 and DI04
X5133_3 Digital inputs/outputs DIO01 and DIO02
X4233_1 EtherCAT
®
/SBus
PLUS
interface, IN
X4233_2 EtherCAT
®
/SBus
PLUS
interface, OUT
29128668/EN – 12/2019
