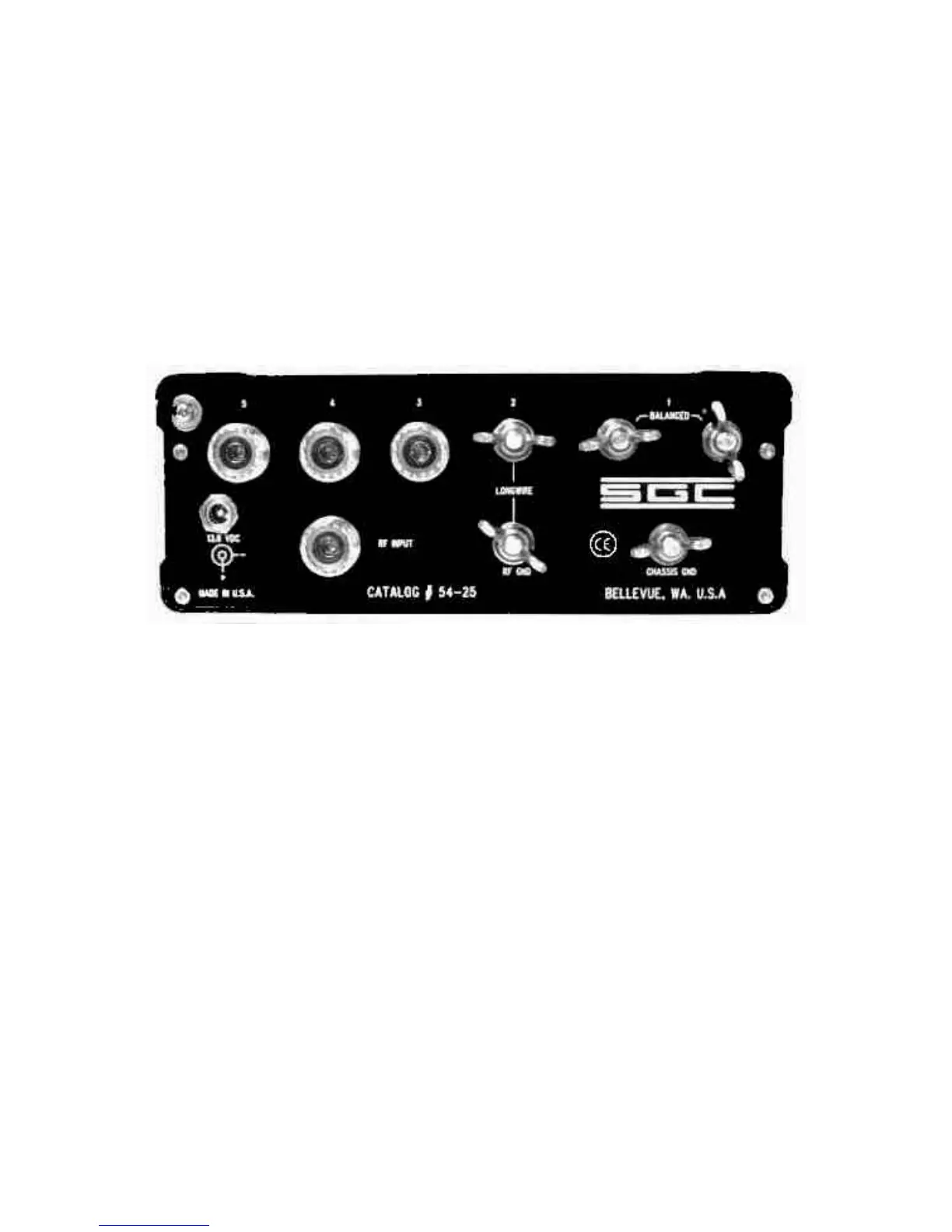

3.2.4.4 Multiple Antenna Connections
The MAC-200 was designed specifically to allow multiple antenna
types with multiple feed lines to be controlled from a single
location. Up to five different antennas can be connected, three fed
by coaxial lines, one with an unbalanced line, and one with a
balanced line. All of these are switch selectable from the front
panel.
