RADIO TEST PROCEDURE

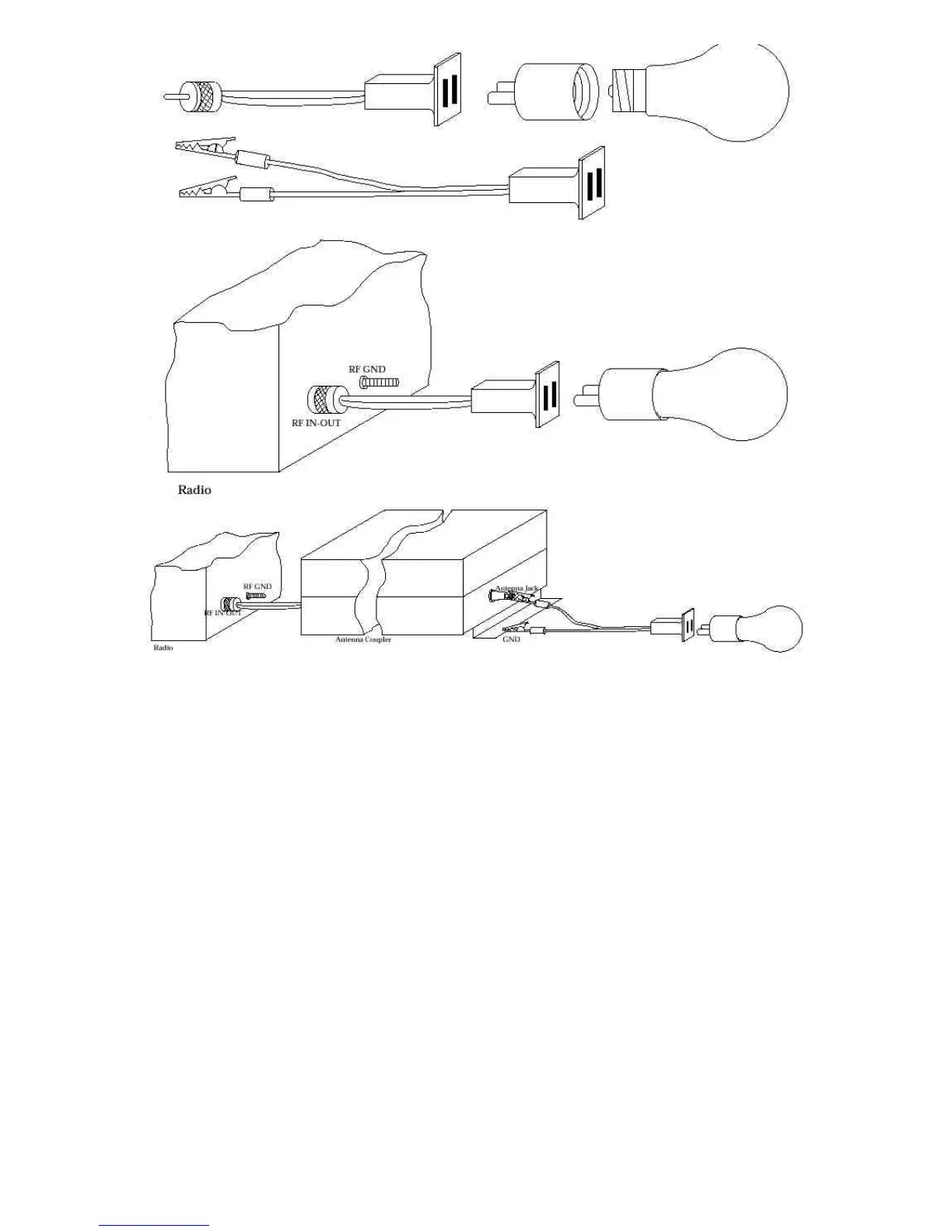

1. Connect the transceiver light bulb load to the radio
RF in/out jack.
2. Turn on the radio and set the CW mode.
3. Key the PTT switch on the microphone and look at
the light bulb. If the light bulb load is connected and
the radio is transmitting, the light should turn on.
4. Set the radio to SSB mode.
5. Key the PTT switch on the microphone and talk into
the microphone. Notice that the light turns on when
you talk.
