24

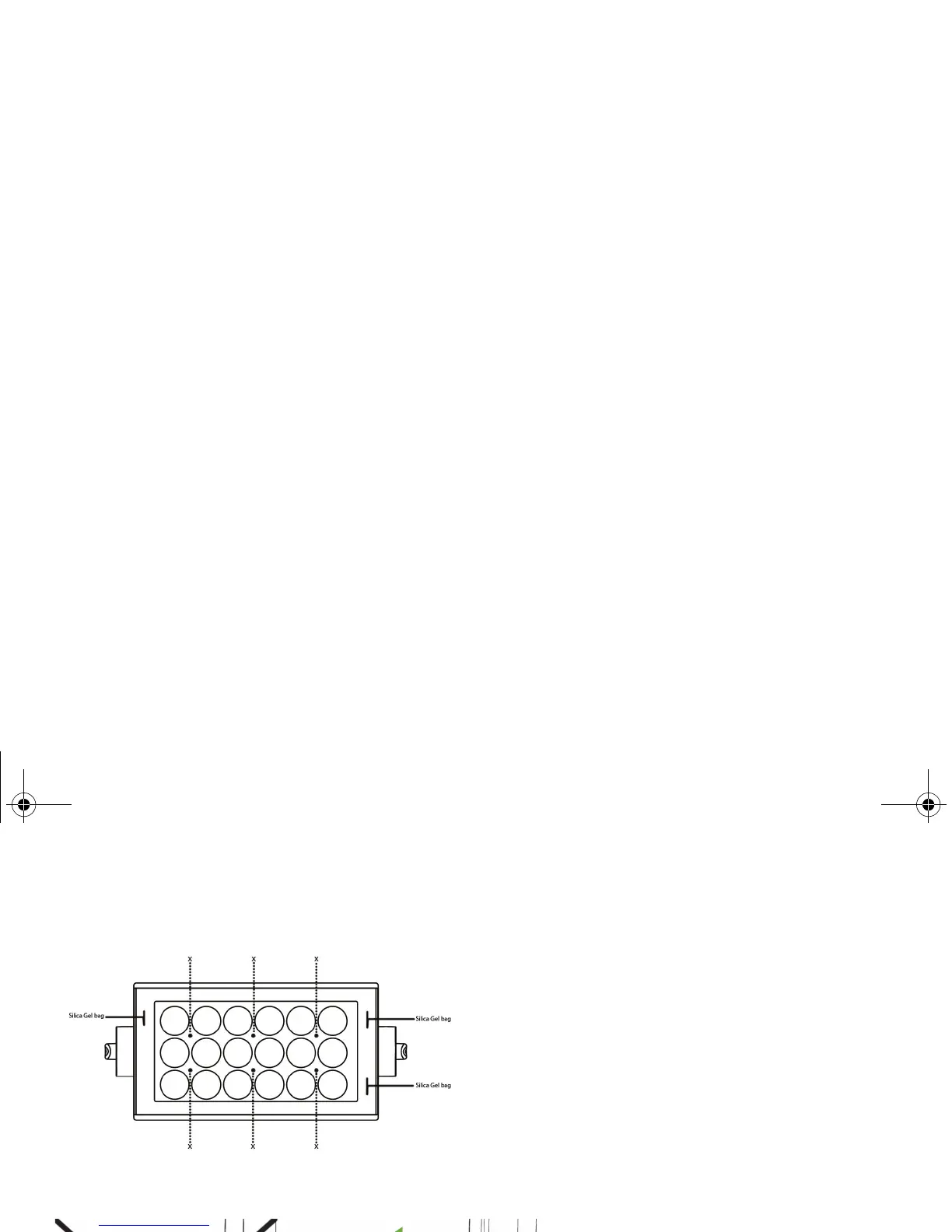

5 Screw in the highlighted front plugs with an Unbrako 6/HOP6 Allen key (Nm 1,0) and place three Silica Gel bags (not
included in lens kit) as shown.
6 Place the sealing frame (facing upwards - see below) on top of the lens module.
P2 Manual_170x113,3.book Page 24 Wednesday, January 7, 2015 11:47 AM
