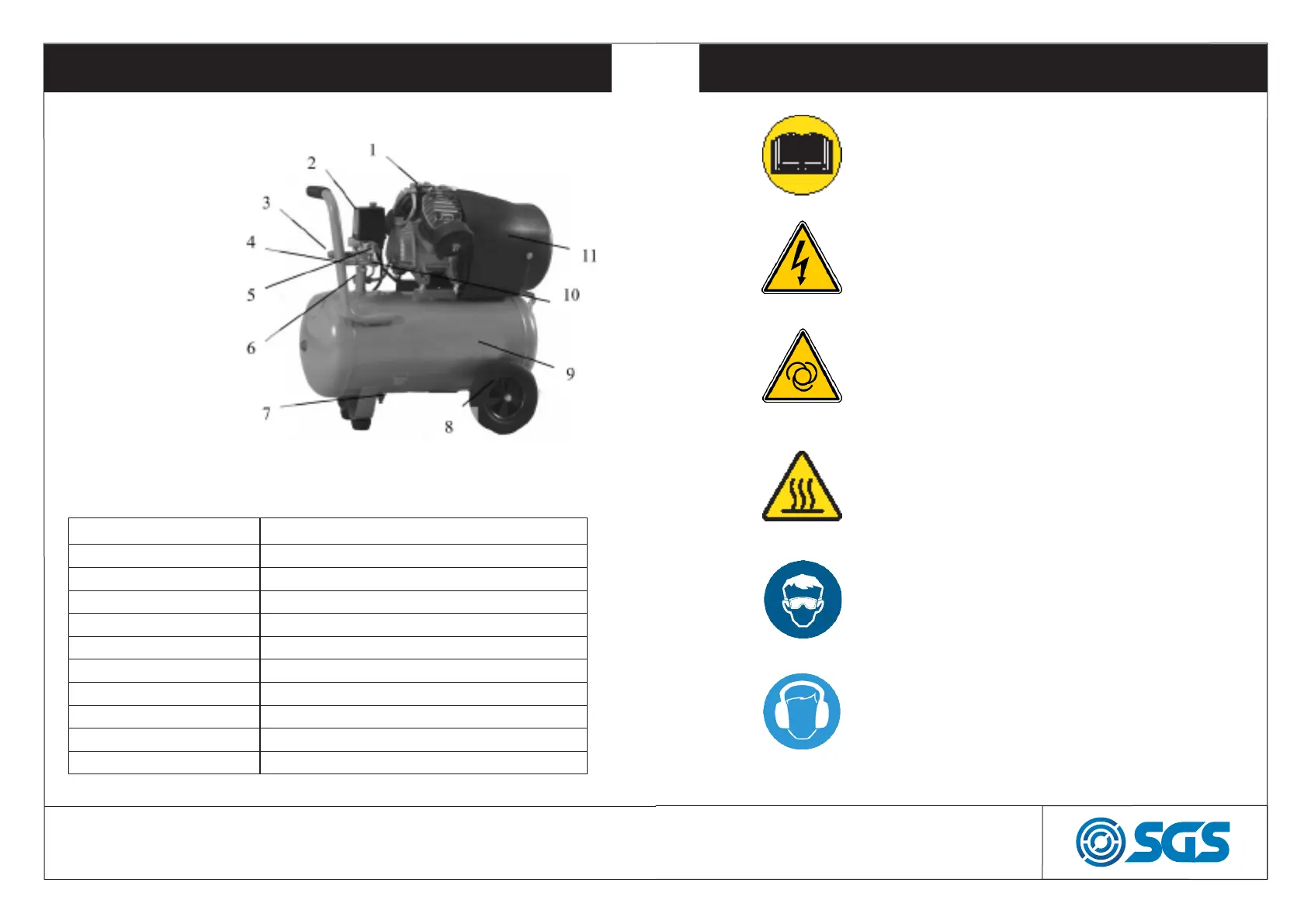

1. Main compressor
2. Pressure switch
3. Outlet Valve
4. Regulating Valve
5. Pressure gauge
6. One-way Valve
7. Drain cock
8. Wheels
9. Air tank
10. Safety valve
11. Fan cover
Model SC50V
Power 2.2Kw/3HP
Voltage 230V/ 50Hz
Motor Poles 2P
Rated Speed 2850 r/min
Delivery 14.6 CFM
Discharge Pressure 115PSI / 0.8MPa
Tank Capacity 50L
Dimensions 77×38×75cm
Net Weight 43.2 kg
Air Outlet Size 1/4”
WARNING SYMBOLS
READ THIS INSTRUCTION MANUAL CARE-
FULLY BEFORE OPERATING OR ADJUSTING
THE COMPRESSOR.
Risk of electric shock. The compressor must
be disconnected from the mains supply before
maintenance or removing any covers. Do not
use in a damp environment.
Risk of accidental start-up. The compressor
could start automatically in the event of a
power cut and subsequent reset. Do not carry
the compressor while it is connected to the
power source, or when the tank is filled with
compressed air.
This compressor contains surfaces which may
reach a high temperature during operation.
Never operate with the motor housing re-
moved.
Air and condensation water can burst from the
compressor when the drain plug is removed.
Wear a safety goggles and ear protectors
when using this compressor.
This compressor produces a high sound level
during operation. Ear protection should be
worn.
MAIN COMPONENTS
