26

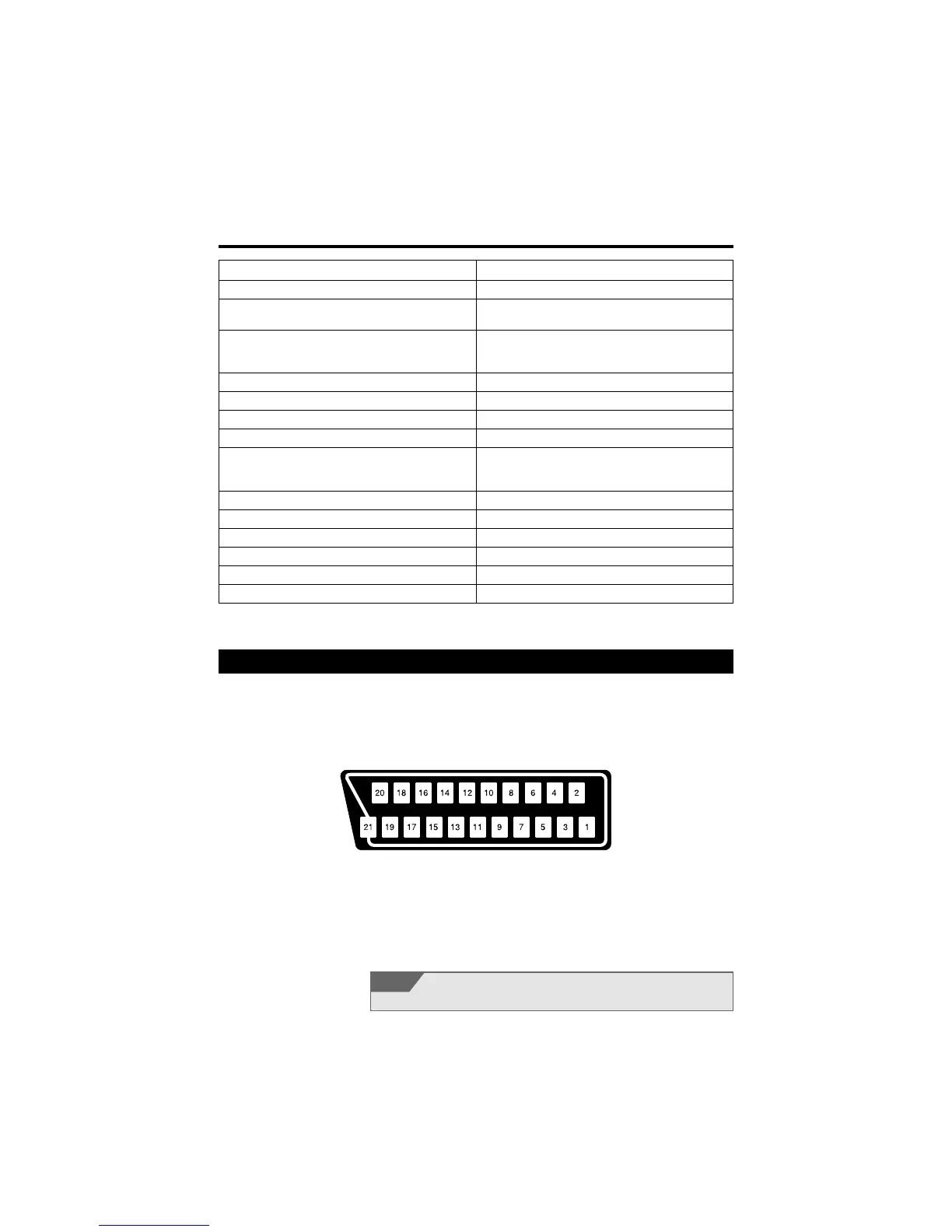

Specifications
Model
1. Receiving Broadcast Standard
2. Receiving System
3. Reception Channels
4. Power Source
5. Power Consumption at 240V AC 50Hz
6. Power Consumption at Stand-by
7. Audio Output (MPO)
8. Dimensions (approx.)
9. Viewing Area (diagonal measurement)
10. Weight (approx.)
11. Internal Speaker
12. Antenna Input Impedance
13. Safety
14. EMC
21HT-15C / 21HT-16C
CCIR TV Standard System PAL-D/K, B/G, SECAM-D/K, B/G
Colour System: PAL ,SECAM
Field Frequency: PAL 50/60 Hz Capability
VHF: E2 - E12CH, R1-R12 CH
UHF: E 21 - E 69 CH
CATV S1 - S20, S21 - S41 (Hyper)
AC220V-240V, 50Hz
43 W
3 W
4 W
Width: 505 mm
Height: 470 mm
Depth: 474 mm
54 cm (21")
19,6 Kg
9 cm × 5 cm Oval
75 ohms Unbalanced
CE - MARK
CE - MARK
Design and specifications are subject to change without notice.
Euro-SCART 21-Pin Terminal
For greater A/V enjoyment, various audio and video devices may be connected via the Euro-SCART
21-Pin Terminal.
For example, one can revel in the stunning visuals from a VCR and the dynamic sounds of an audio
system. For your interest, here is just one example of an integrated A/V system.
1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth for blue
6. Audio left input
7. Blue input
8. Audio-video control
9. Earth for green
10. Not used
11. Green input
12. Not used
13. Earth for red
14. Not used
NOTE
Audio: Mono Input/Output.
21-Pin Euro-SCART
15. Red input
16. Red/Green/Blue control
17. Earth for video
18. Earth for Red/Green/Blue control
19. Video output
20. Video input
21. Plug shield
