SHARP(CHINA) INVESTMENT CO., L
TD

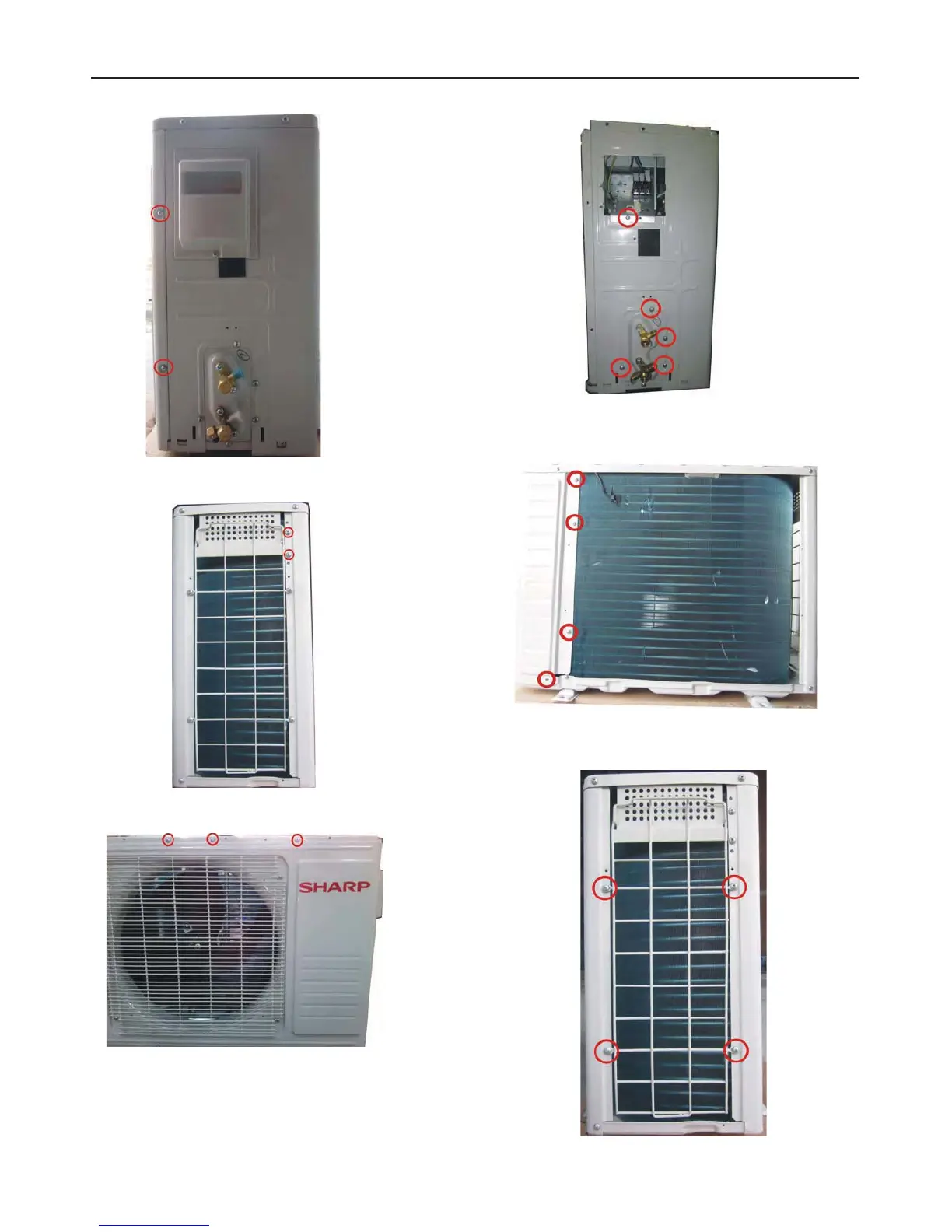

5)The screw on the right-hand side of front panel is removed
6)The screw on the left-hand side of front panel is removed
7) The 3 screws of the front of a front panel is removed.
8)The 5 screws on the right-hand side of right plate is removed.
9) Unscrew the 4 screws on the back side of of right plate and removed
the right plate.
10) Unscrew the 4 screws on the side lef
t grille and removed the left
grille.
5-5
52
54
