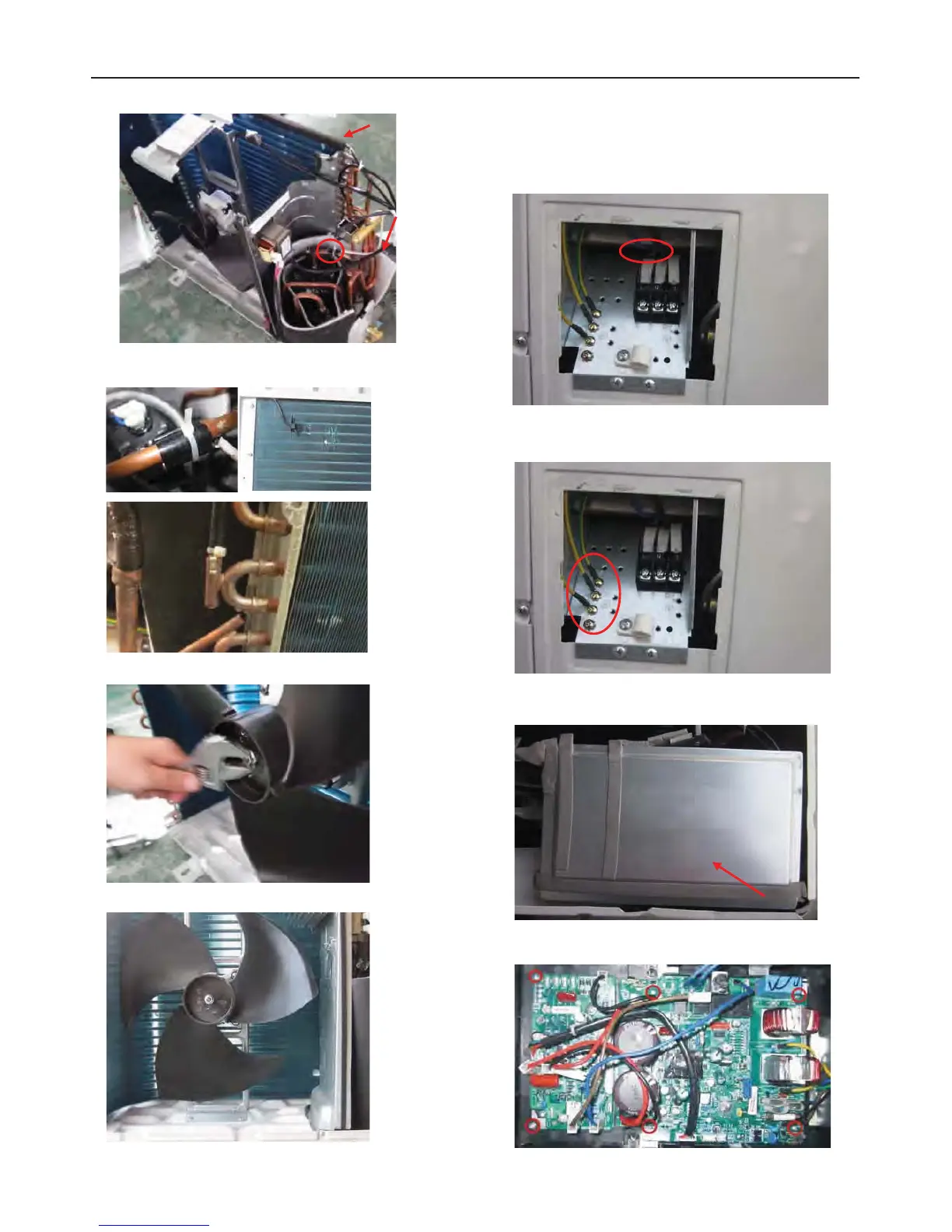

18) Remove the 3 thermistors.
19) Thermistor position.
20) Remove the outdoor fan.
19) Unscrew the 2 screws and remove the motor angle.
[3] CONTROL BOX
1.Control unit box's Approach to decomposition.
1) Take off lead wires from terminal assembly.
(Blue wire,Brown wire,Black wire)
2) Take off screw (earth).
Take off earth lead wire(green/yellow) from electronic box.
3) Take off box cover.
4) Take off screws 6 PCS)
Discharge Temp.
Outside air Temp.
Outside pipe Temp.
Box cover
