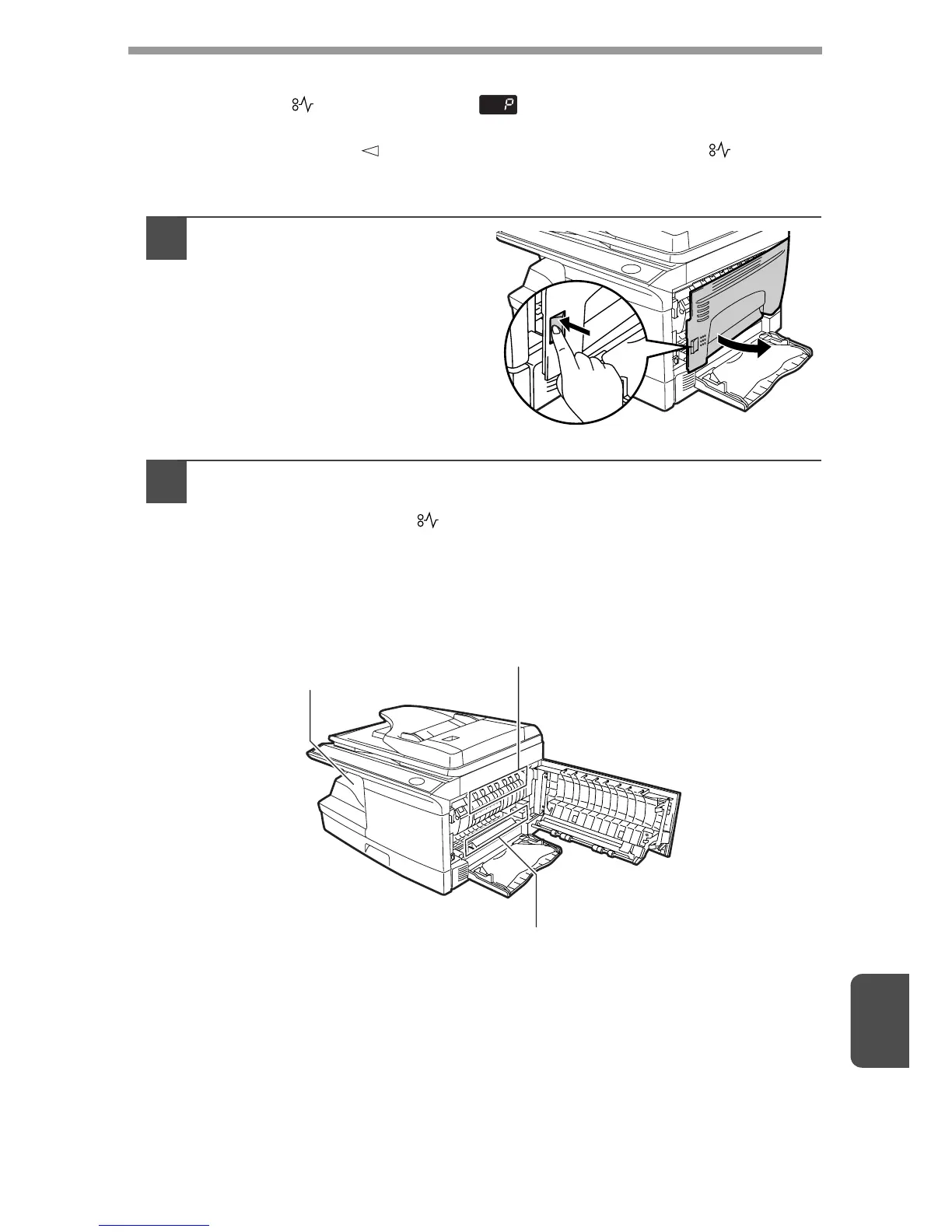

MISFEED REMOVAL
When the misfeed ( ) indicator blinks or blinks in the display, the unit will
stop because of a misfeed. When the SPF misfeeds an original sheet, the unit will
stop and the SPF misfeed ( ) indicator will blink, while the misfeed ( ) indicator
will remain off. For a misfeed of originals in the SPF, see "D: Misfeed in the SPF (AL-
2041)" (p.87).
1
Open the multi-bypass tray,
and then open the side
cover.
2
Check the misfeed location. Remove the misfed paper
following the instructions for each location in the illustration
below. If the misfeed ( ) indicator blinks, proceed to "A:
Misfeed in the paper feed area" (p.84).
If the misfed paper is seen from this
side, proceed to "C: Misfeed in the
transport area" (p.86).
If paper is misfed here, proceed to
"B: Misfeed in the fusing area" (p.85).
If paper is misfed here, proceed to
"A: Misfeed in the paper feed area" (p.84).
