D: Misfeed in the SPF (AL-2041)

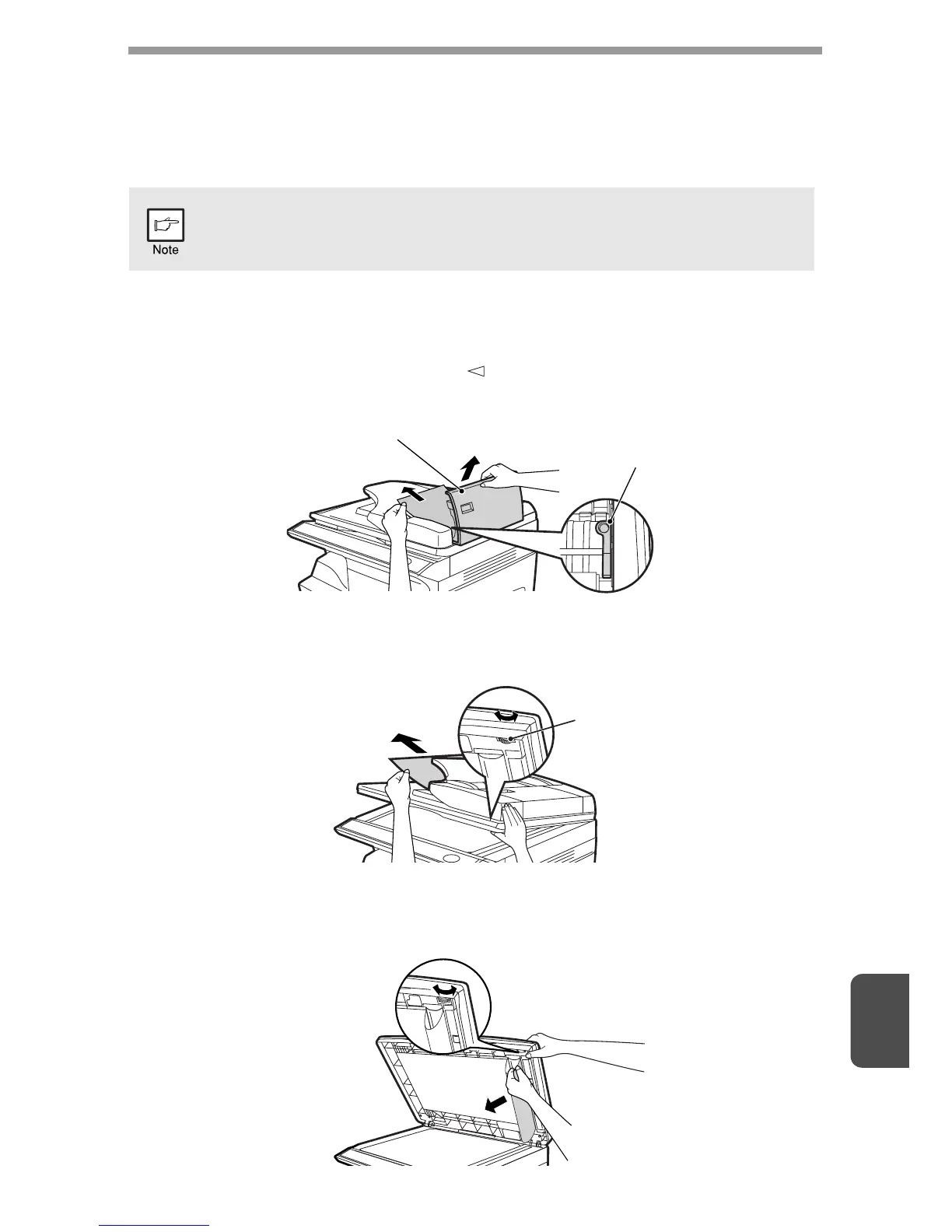

An original misfeed may occur at one of three locations: if the misfed original is seen
from the document feeder tray, (A) in the document feeder tray; if the misfed original is
not seen from the document feeder tray, (B) in the exit area or (C) under the document
feeder cover. Remove the misfed original following the instructions for each location.
(A) Open the document feeder cover and pull the misfed original out from the
document feeder tray. Press the SPF jam release lever (see below) while
you remove the original. Close the document feeder cover. Open and close
the SPF to clear the SPF misfeed ( ) indicator. If the misfed original
cannot be easily removed, proceed to (C).
(B) Open the SPF and rotate the roller to remove the misfed original from the
exit area. If the misfed original cannot be easily removed, proceed to (C).
(C) If the original does not move easily into the exit area, remove it in the
direction of the arrow while rotating the knob.
After removing the jammed paper, be sure to press the clear key to clear
the misfeed error state.
Document feeder cover
SPF jam release lever
Rolle
