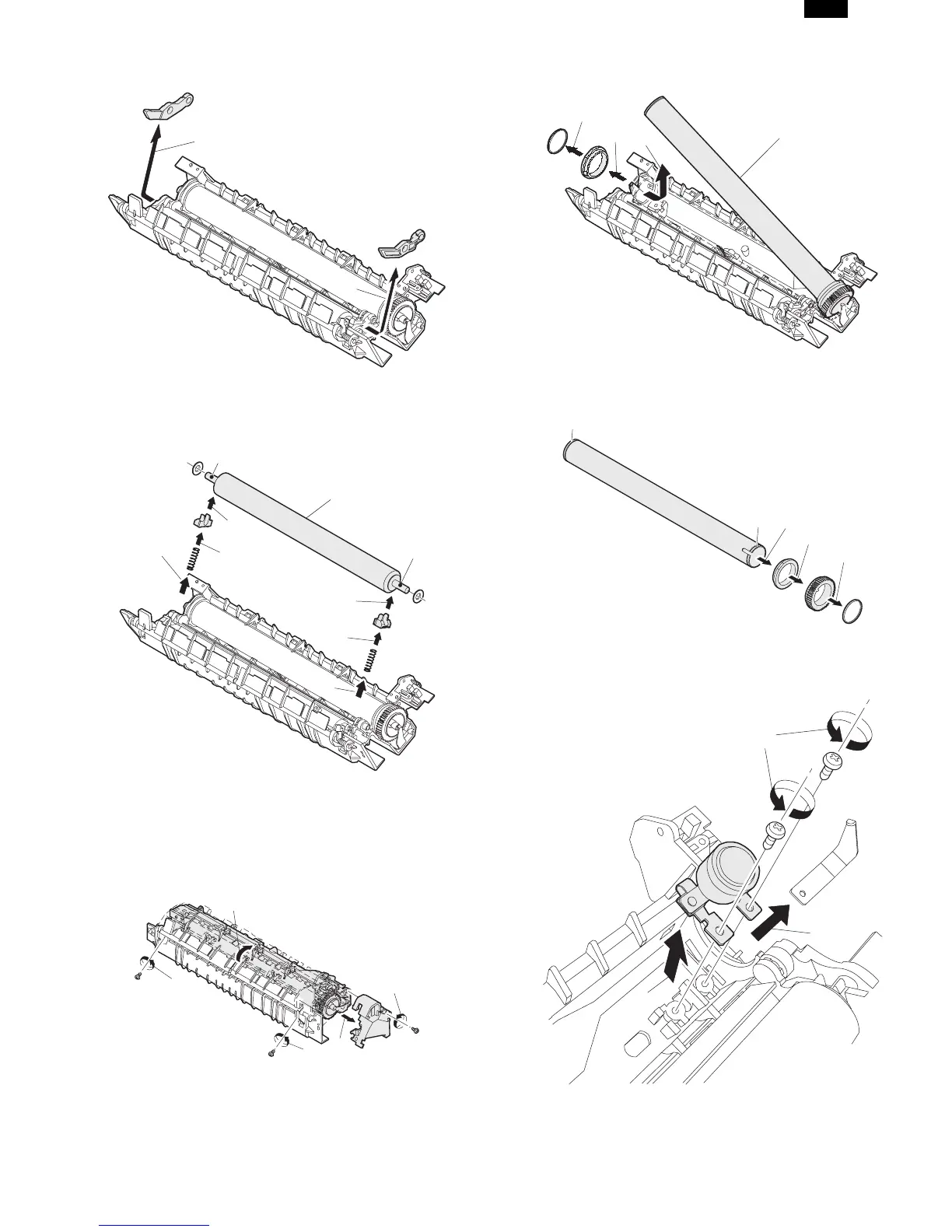

(10) Remove the pressure release levers on the right and the left
sides.
(11) Remove the pressure roller, the pressure bearing, and the spring.
Note: Apply grease to the sections specified with ✽.
Heat roller disassembly
(Continued from procedure (4).)
(5) Remove screws, remove the fusing cover, and open the heat roller
section.
(6) Remove the C-ring and the fusing bearing, and remove the heat
roller.
(7) Remove the parts from the heat roller.
Note: Apply grease to the sections specified with ✽.
(8) Remove two screws and remove the thermostat.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
1)
1)
1)
2)
2)
1)
3)
3)
Pressure roller
✽
✽
1)
2)
2)
3)
3)
1)
2)
3)
Heat roller
1)
2)
3)
✽
✽
1)
2)
3)
AR-F152
7 – 8
