5. Tray paper feed/transport section
A. List
No. Part name Ref.
1 PPD1 sensor PWB
2 LSU unit
3 Intermediate frame unit
4 Paper feed roller

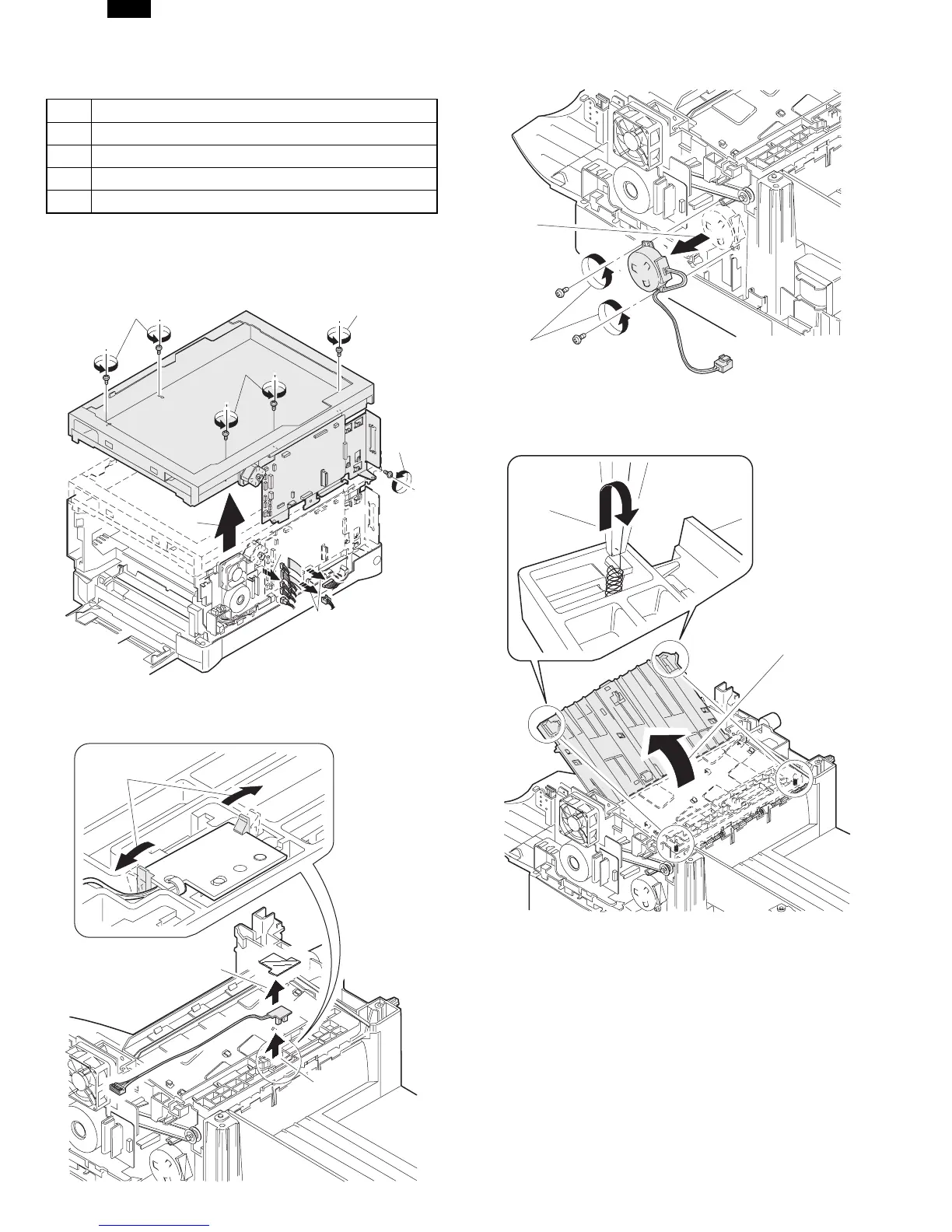

B. Disassembly procedure
(1) Remove six connectors and screws of the main PWB, and lift the
optical unit and the main PWB to remove.
(2) Remove the PWB insulation mylar and remove the paper transport
detection sensor (PPD2).
(3) Remove two screws and remove the toner motor.
(4) Remove two springs and open the intermediate frame unit.
2)
3)
2)
2)
2)
1)
1)
1)
3)
2)
1)
2)
1)
2)
AR-F152
7 – 9
