Sharp AR-203E

AR-203E/5420/M200/M201 DISASSEMBLY AND ASSEMBLY 8 - 10
C. Assembly procedure
For assembly, reverse the disassembly procedure.

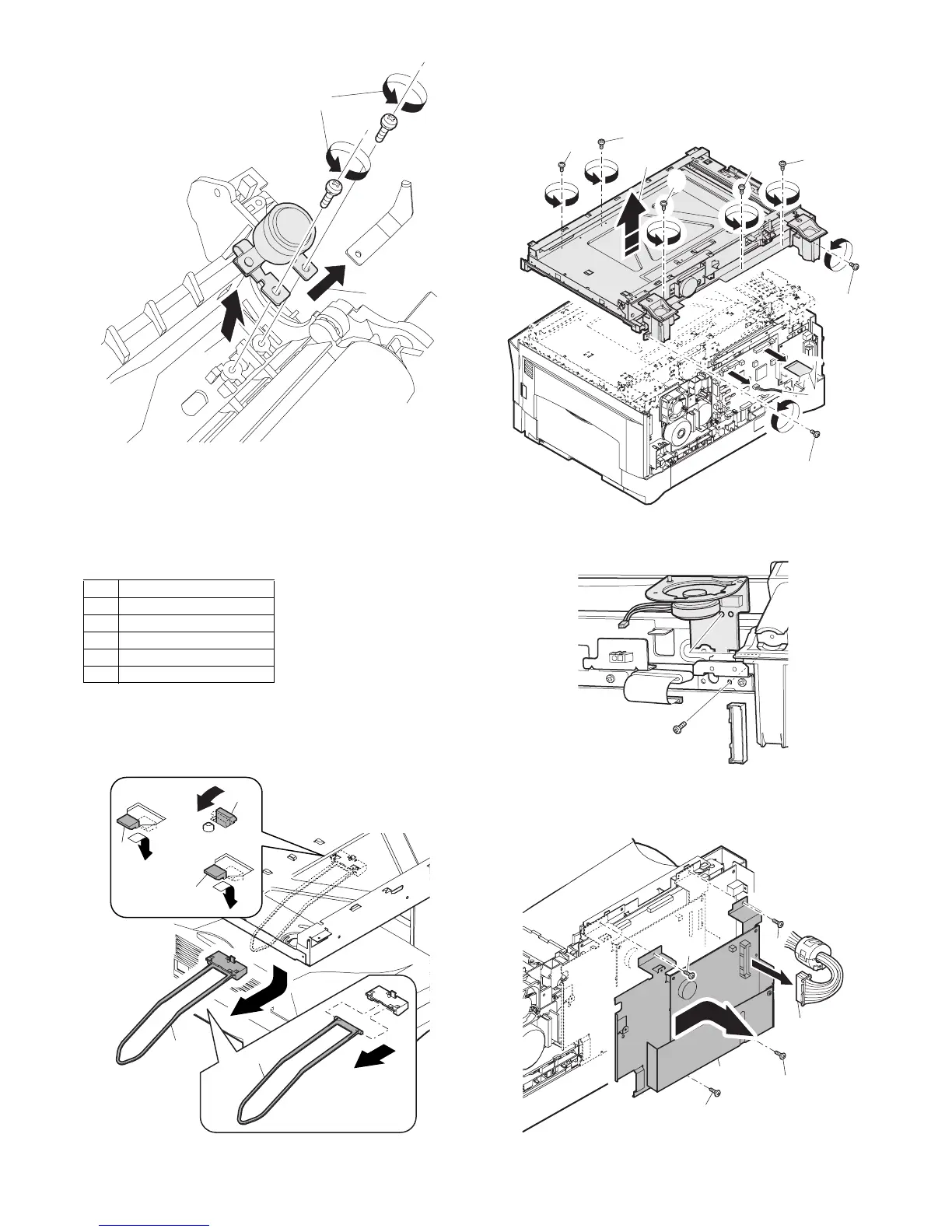

5. Tray paper feed/transport section
A. List
B. Disassembly procedure
1) Remove the paper holding arm.
Remove the arm holder from the main unit, and remove the
holder from the arm. (AR-M200/M201)
2) Remove two screws, and remove the hinge guide R.
3) Disconnect the connector. (2 positions)
4) Remove five screws, and remove the scanner unit.
5) Remove the fan duct.
6) Remove the connector and the screw, and remove the speaker
unit. (When the AR-FX13 is installed)
7) Remove the connector.
8) Remove four screws, and remove the FAX PWB unit. (When the
AR-FX13 is installed)
No. Part name Ref.
1 PPD1 sensor PWB
2 POD sensor PWB
3 LSU unit
4 Intermediate frame unit
5 Paper feed roller
1)
2)
3)
3)
1)
2)
2)
4)
2)
2)
1)
2)
2)
2)
2)
2)
3)
2)
2)
3)
1)
2)
2)
