AR-M236/M276/M237/M277 DISASSEMBLY, ASSEMBLY AND MAINTENANCE 10 - 9

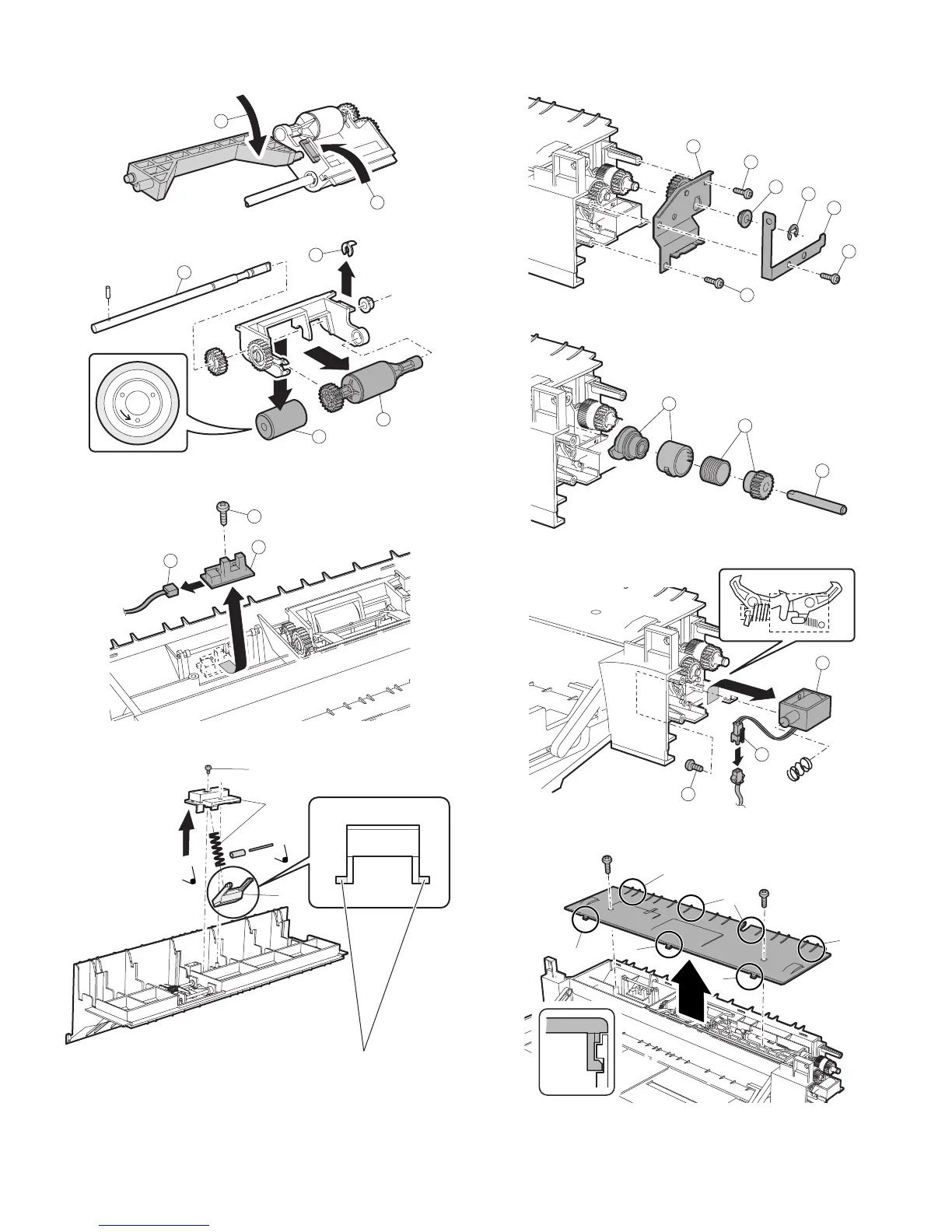

Installation*Install so that the cam transmit arm (1) comes under the
roller arm (2).
b. Reverse sensor
c. Separation sheet
∗ Slightly apply grease GP501MR (UKOG-0012QSZZ) around the
axis. One rice grain for each.
d. Clutch/solenoid
(Clutch)
(Solenoid)
(Clutch)
