Sharp AR-M236

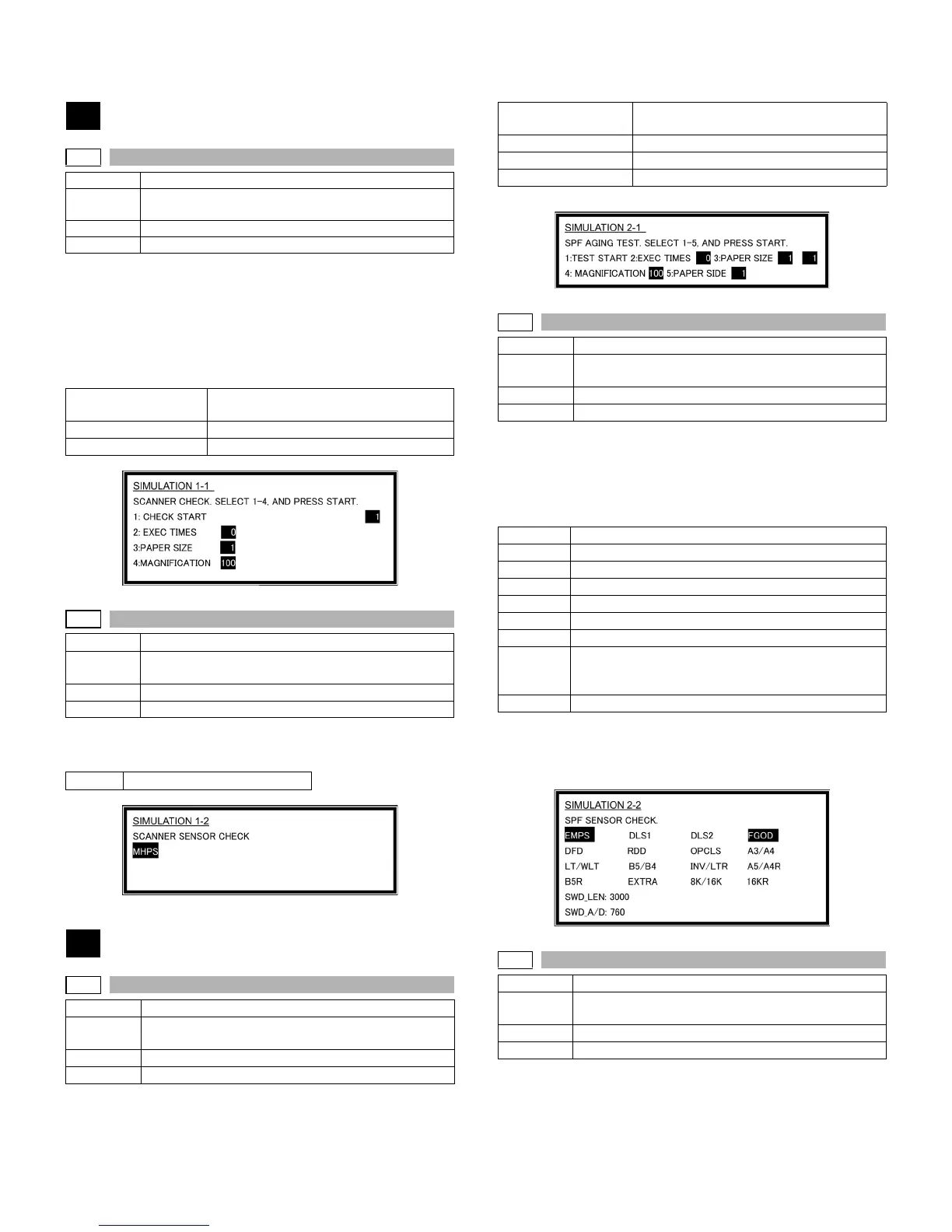

AR-M236/M276/M237/M277 SIMULATION 8 - 6
4. Details
Operation/procedure
Enter the number of operations, and set the magnification ratio and the
original size.
1. Select the desired item, and press the [START] key.
2. Enter the set value with the 10-key, and press the [START] key.
The scanner unit operates at the speed corresponding to the set value.
The scan counter is displayed during execution.
Operation/procedure
The status of sensors and detectors in the scanner section is dis-
played. The active sensors and detectors are highlighted.
Operation/procedure
Enter the number of operations, and set the magnification ratio and the
original size.
1. Select the desired item, and press the [START] key.
2. Enter the set value with the 10-key, and press the [START] key.
The SPF/RSPF unit operates at the speed corresponding to the set
value.
The scan counter is displayed during execution.
Note: Executable only when the SPF/RSPF is installed.
Operation/procedure
The operations of sensors and detectors in the SPF/RSPF section are
displayed.
The active sensors and detectors are highlighted.
(For the original size, the detection result of the original size displayed
on the copy menu is highlighted.)
SPF/RSPF width detection size (One of the following is displayed.)
A4/A3, LT/WLT, B5/B4, INV/LTR, A5/A4R, B5R, EXTRA, 8K/16K,
16KR
Note: Executable only when the SPF/RSPF is installed.
Operation/procedure
Select the load to be checked with the 10-key, and press the [START]
key.
The motor for 10sec, the solenoid ON for 500msec, OFF for 500msec.
(20 times)
1
1-1
Purpose Operation test/check
Function
(Purpose)
Used to check the operation of the scanner unit and its
control circuit.
Section Optical (Image scanning)
Item Operation
Set magnification ratio 25% to 400% (1% increment) (Default
100%)
Document size Varies depending on the destination.
Set number of times 1 to 999 (0: Continuous operation)
1-2
Purpose Operation test/check
Function
(Purpose)
Used to check the operation of sensor and detector in
the scanning (read) section and the related circuit.
Section Optical (Image scanning)
Item Operation
MHPS Mirror home position sensor
2
2-1
Purpose Operation test/check
Function
(Purpose)
Used to check the operation of the SPF/RSPF unit and
the related circuit.
Section SPF/RSPF
Item Operation
Set magnification ratio 50% to 200% (1% increment) (Default
100%)
Document size Varies depending on the destination.
Duplex Selectable only when RSPF is installed.
Set number of times 1 to 999 (0: Continuous operation)
2-2
Purpose Operation test/check
Function
(Purpose)
Used to check the operation of sensors and detectors
in the SPF/RSPF unit and the related circuit.
Section SPF/RSPF
Item Operation
EMPS Original empty sensor
DLS1 Original length sensor (Small)
DLS2 Original length sensor (Large)
FGOD SPF/RSPF paper feed cover open/close sensor
DFD SPF/RSPF paper entry sensor
RDD SPF/RSPF original exit sensor
OPCLS Book sensor
SWD_LEN Original detection width sensor (Unit of 0.1mm. "Width
x 10" is displayed. Example: For 300mm, 3000 is
displayed.)
SWD_A/D Original detection width sensor A/D value
2-3
Purpose Operation test/check
Function
(Purpose)
Used to check the operation of the loads in the SPF/
RSPF unit and the control circuits.
Section SPF/RSPF
Item Operation
