AR-M236/M276/M237/M277 DISASSEMBLY, ASSEMBLY AND MAINTENANCE 10 - 12

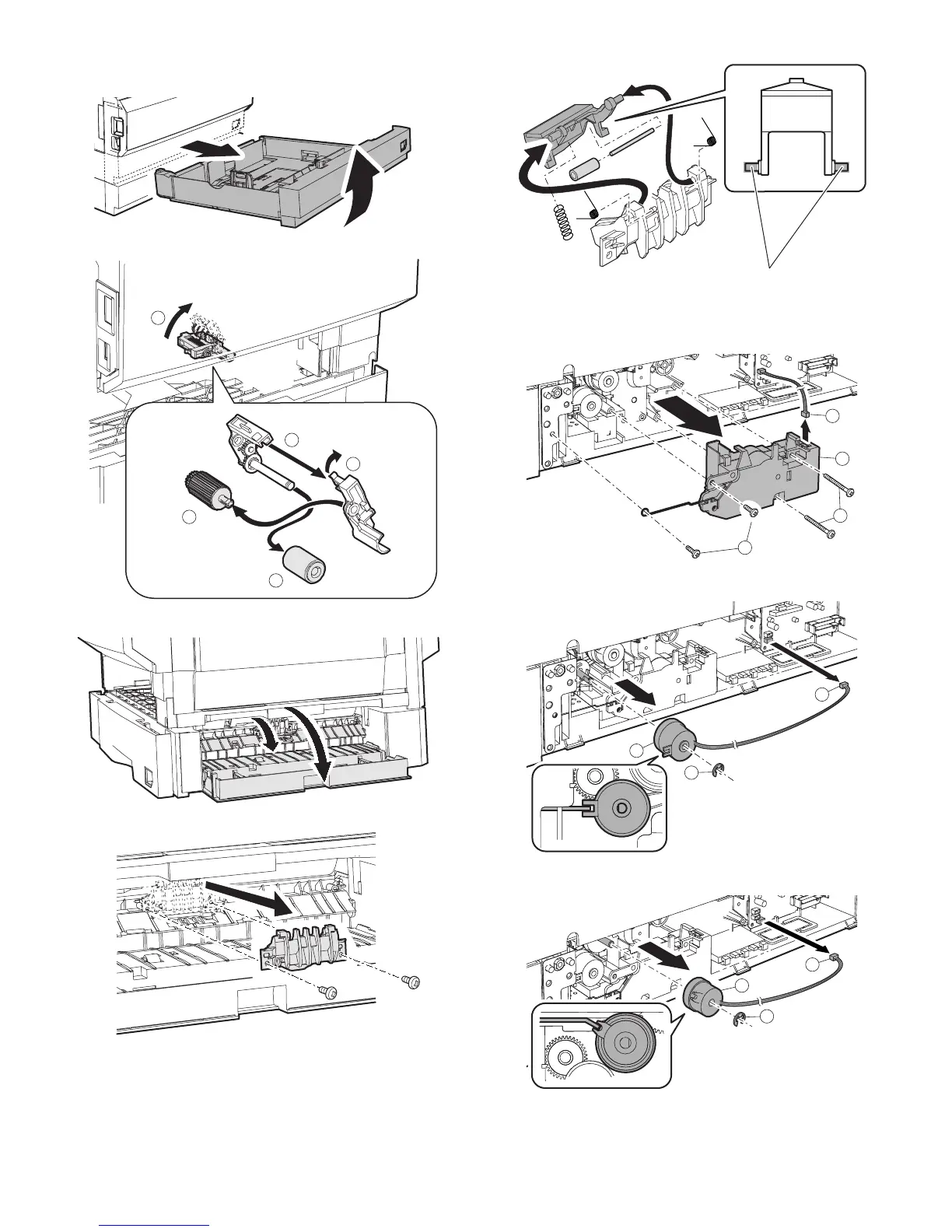

(3) Lower 500 sheets tray paper feed
a. Paper feed roller/pickup roller
b. Separation sheet
∗ Slightly apply grease GP501MR (UKOG-0012QSZZ) around the
axis. One rice grain for each.
Grease should not come out when assembling.
c. Lift up unit
d. Transport clutch
e. Paper feed clutch
1
3
2
4
4
1
2
1
1
1
2
3
2
1
3
