CD-CH1000
– 18 –

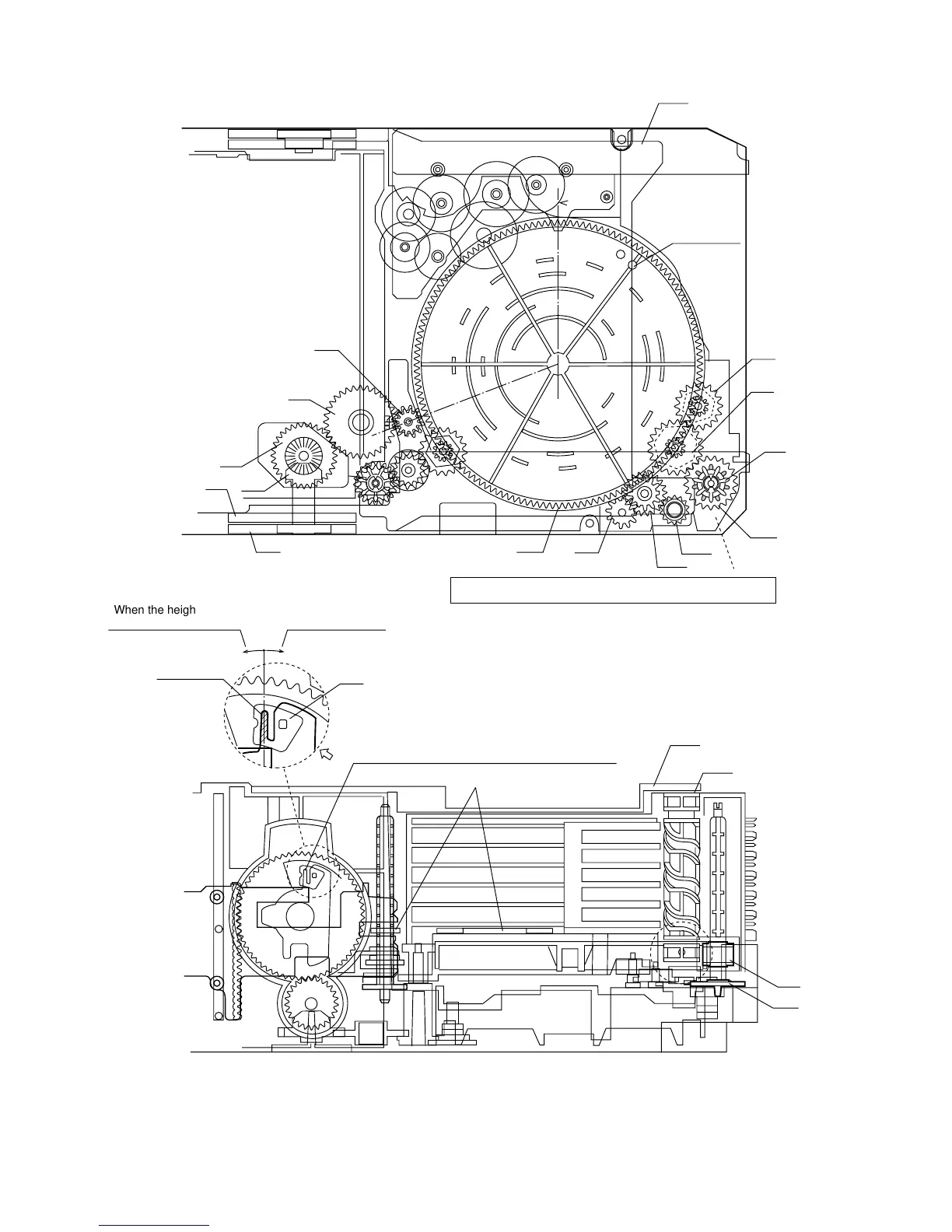

Figure 18
143
141
133
132
147
146
110
Mark position
111
145
142
LIFT GEAR A
130
135
140
180
TOP PLATE F
180
TOP PLATE F
240
OS LEVER
140
144
130
135
,,
,,
,,
,,
,,
,,
,,
When the height of
STB holder is low,
(Increase the clearance.)
Bend this part.
When the height of
STB holder is high,
(Decrease the clearance.)
Scale: 2 magnifications
Details
Bend this part to adjust the height of the STB holder.
Adjusting procedure
1. Turn the mode big gear approx. 37 degrees in the arrow direction.
2. Viewing from the front side of the mechanism, verify that the guide ribs
(CHANGE BOX L/R and STB HOLDER)of tray are as tall as each other.
3. If they are not, bend the lever for adjustment. (Refer to the details.)
Note: Also apply the same adjustment on the R side.
Height of the rib
STB HOLDER HEIGHT ADJUSTING METHOD
