CD-ES900/CD-ES99
8 – 6
IC601 VHiLC75341/-1: Audio Processor (LC75341)
Pin No. Terminal Name Function
1 DI Serial data and clock input pin for control.
2 CE Chip enable pin.
Data written into an internal latch in a timing of “H” to “L”.
Each analog switch is activated.
Data transfer enabled at “H” level.
3 VSS Ground pin.
4 LOUT Bass band filter comprising
capacitor and resistor connection pin and bass/treble output pin.
5 LBASS Bass band filter comprising capacitor and resistor connection pin.
6 LTRE Treble band filter comprising capacitor and resistor connection pin.
7 LIN Volume + equalizer output pin.
8 LSEL0 Input selector output pin.
9-12 L4-1 Input signal pin.
13-16 R1-4 Input signal pin.
17 RSEL0 Input selector output pin.
18 RIN Volume + equalizer output pin
19 RTRE Treble band filter comprising capacitor and resistor connection pin.
20 RBASS Bass band filter comprising capacitor and resistor connection pin.
21 ROUT Bass band filter comprising capacitor and resistor connection pin and bass/treble output pin.
22 VREF 0.5x VDD voltage generation block for analog ground. Capacitor of several 10 µF to be connected between VREF
and AWSS (VSS) as a countermeasure against power ripple.
23 VDD Supply pin
24 CLK Serial data and clock input pin for control.
19
20
21
222324
123
4
5
6
7
8
9
10 11 12 13 14 15 16
18
17
LVref
RVref
CONTROL
CIRCUIT
CONTROL
CIRCUIT
CONTROL
CIRCUIT
LOUT
LBASS
LIN
LSEL0
L4
L3
L2 L1
R1 R2
R3 R4
RSEL0
RIN
RTRELTRE
RBASS
ROUT
VREF
VDD
CLK
DI
CE
VSS
CCB
INTERFACE
CD
Tuner
Tape
Video
24
23
22
21
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
LC75341
DI
CE
VSS
LOUT
LBASS
LTRE
LIN
LSEL0
L4
L3
L2
L1
CLK
VDD
VREF
ROUT
RBASS
RTRB
RIN
RSEL0
R4
R3
R2
R1

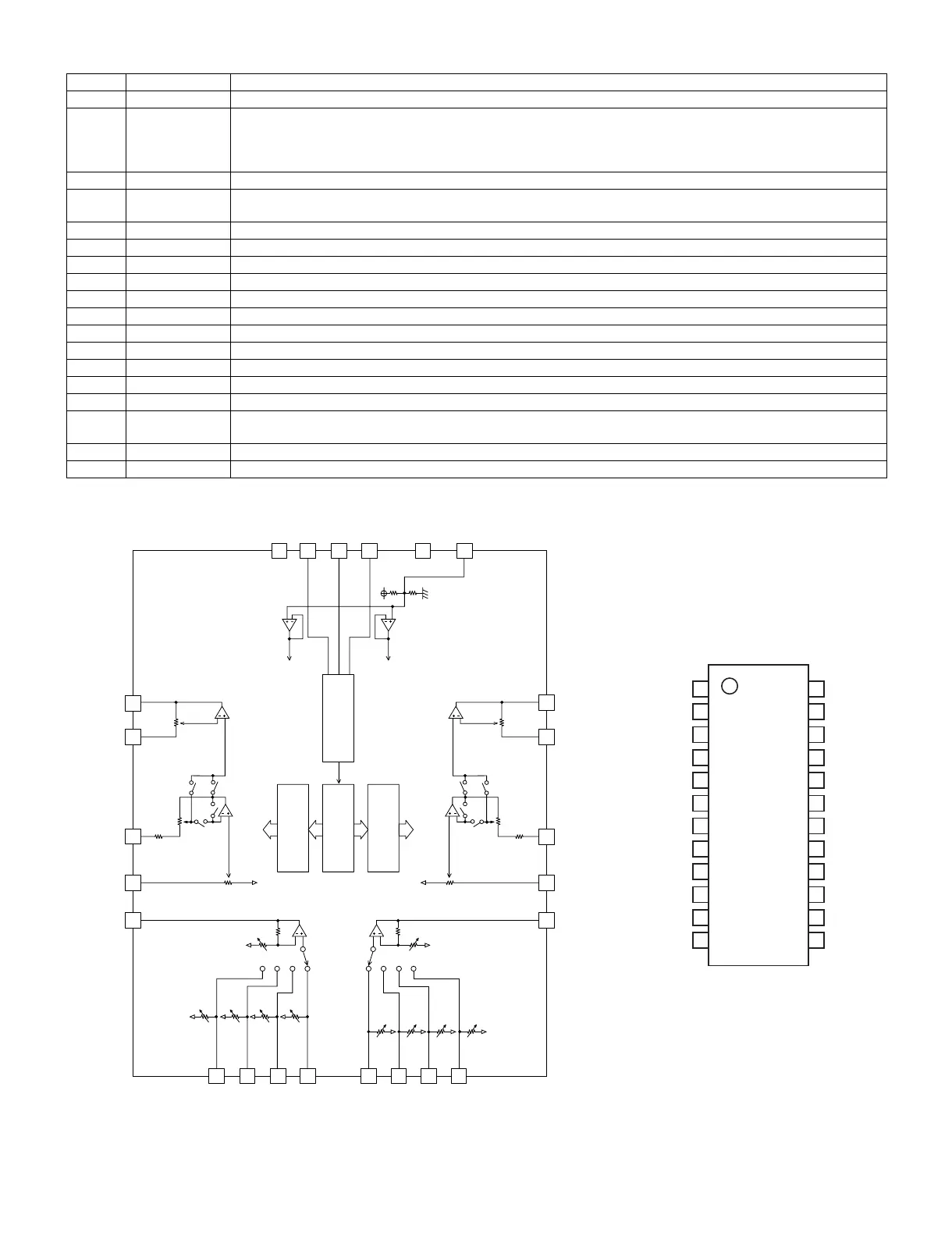

Figure 8-5 BLOCK DIAGRAM OF IC
