CHAPTER 3. DISASSEMBLING PROCEDURE
[1] PROCEDURE FOR DISASSEMBLY
"ACTUAL UNITS MAY VARY SLIGHTLY FROM THOSE PICTURES BELOW"
CAUTION: • DISCONNECT THE PORTABLE TYPE ROOM AIR CONDITIONER FROM THE POWER SUPPLY BEFORE ANY SERVICE.
• DISCONNECT THE EXHAUST HOSE FROM THE UNIT BEFORE ANY SERVICE.(SEE PAGE 2-4)
• DRAINAGE SHOULD BE PERFORMED BEFORE ANY SERVICE.
(SEE "WHENEVER THE UNIT IS MOVED" OF PAGE 2-7)

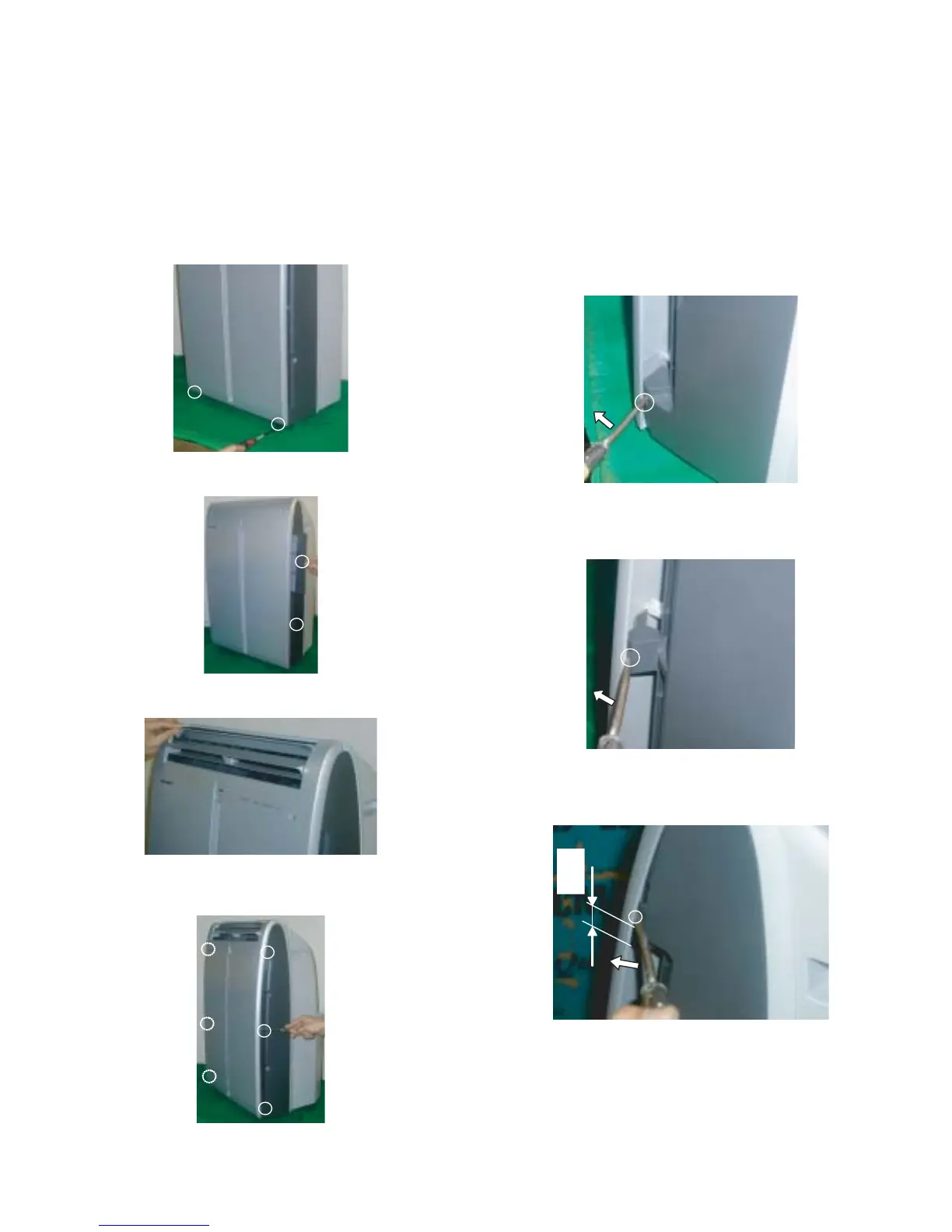

1. Unscrew 2 screws holding the front panel on lower both ends.
2. Remove two air filters.
3. Open horizontal louvers, as shown in below figure.
4. Unhook 6 hooks of the front panel which is at both sides in an order
from the lower position using flathead screw driver. <6 parts>
1) Insert flathead screw driver into the position shown in below fig-
ure. Then gently pry the driver to the arrow mark direction, to
unhook the lower hooks (both sides).
2) Insert flathead screw driver into the position shown in below fig-
ure. Then gently pry the driver to the arrow mark direction, to
unhook the middle hooks (both sides).
3) Insert flathead screw driver into the position shown in below fig-
ure. Then gently pry the driver to the arrow mark direction, to
unhook the upper hooks (both sides).
㪉㪌㫄㫄

Sharp CV-P09FR Specifications

General

Cooling capacity (max)	- BTU/h
Dehumidifying capacity	1.167 l/h
Cooling capacity in watts (max)	2120 W

Weight and Dimensions

Weight	36000 g
